Tyrosine kinases have been implicated in promoting tumorigenesis of several human cancers. Exploiting these vulnerabilities has been shown to be an effective anti-tumor strategy as demonstrated for example by the Bruton's tyrosine kinase (BTK) inhibitor, ibrutinib, for treatment of various blood cancers. Here, we characterize a new multiple kinase inhibitor, ARQ531, and evaluate its mechanism of action in preclinical models of acute myeloid leukemia. Treatment with ARQ531, by producing global signaling pathway deregulation, resulted in impaired cell cycle progression and survival in a large panel of leukemia cell lines and patient-derived tumor cells, regardless of the specific genetic background and/or the presence of bone marrow stromal cells. RNA-seq analysis revealed that ARQ531 constrained tumor cell proliferation and survival through Bruton's tyrosine kinase and transcriptional program dysregulation, with proteasome-mediated MYB degradation and depletion of short-lived proteins that are crucial for tumor growth and survival, including ERK, MYC and MCL1. Finally, ARQ531 treatment was effective in a patient-derived leukemia mouse model with significant impairment of tumor progression and survival, at tolerated doses. These data justify the clinical development of ARQ531 as a promising targeted agent for the treatment of patients with acute myeloid leukemia.
Acute myeloid leukemia (AML) is an aggressive disease characterized by uncontrolled clonal proliferation of abnormal myeloid progenitor cells in the bone marrow and blood. Despite recent advances in its treatment, as many as 70% of patients aged 65 or older will die within 1 year of diagnosis. The efficacy of standard high-dose chemotherapy and stem cell transplantation is limited by treatment- related morbidity and mortality, especially in elderly patients.1-3 Cancer treatment is undergoing a significant revolution from “one-size-fits-all” cytotoxic therapies to tailored approaches that target molecular alterations precisely. Notably, precision medicine, by linking specific genetic anomalies of tumors with available targeted therapies, is emerging as an innovative approach for AML treatment, with development of breakthrough drugs targeting specific molecular features (e.g., FLT3 and IDH1/2 inhibitors).4-6 However, identification of patients who will benefit from targeted therapies is more complex than simply identifying patients whose tumors harbor the targeted aberration. A rational combination of therapeutic agents may prevent the development of resistance to therapy, with molecular strategies aimed at targeting multiple pathways resulting in a more effective treatment across cancer subtypes.
The Bruton tyrosine kinase (BTK), a member of the TEC family kinases, is a critical terminal kinase enzyme in the B-cell antigen receptor signaling pathway.7,8 Its activation leads to BTK phosphorylation which in turn results in downstream events such as proliferation, immune function alteration and survival through multiple signaling cascades. 9 Chronic activation of BTK-mediated signaling represents a key driver for a number of types of cancers,10-14 including AML.15-22 Therefore, new inhibitors are needed to target tyrosine kinases better in these patients. Recent studies have shown that oncogenic cellular dysregulation is critical for the activity of the anti-BTK targeting agent ibrutinib,23,24 and that co-treatment with BET protein bromodomain antagonists or BCL-2 inhibitors may enhance the efficacy of ibrutinib in tumor cells.25,26
Herein we characterize ARQ531, a reversible small molecule inhibitor of BTK and several additional kinases, in preclinical models of AML. We provide evidence that ARQ531 greatly compromises survival of AML cells by inducing a “one shot” inhibition of multiple oncogenic transcriptional pathways. This resulted in potent anti- AML activity in a patient-derived xenograft AML mouse model, providing the rationale for future clinical trials.
ARQ531 was provided by ArQule, Inc (Burlington, MA, USA). The compound was dissolved in dimethylsulfoxide (Sigma-Aldrich) and stored at 10 mM at -80°C for experiments. Ibrutinib, daunorubicin, cytarabine and MG132 were purchased from Selleck Chemicals LLC (Houston, TX, USA). ZVAD-FMK was purchased from Promega (catalog n. G7232).
Patient-derived xenograft acute myeloid leukemia cells
Experiments were carried out on 6- to 8-week old, nonobese diabetic severe combined immunodeficient (NOD/SCID) interleukin-2 receptor γ (IL-2Rg)-null (NSG) mice. The NSG mice were bred and housed under pathogen-free conditions in the animal facilities at the European Institute of Oncology–Italian Foundation for Cancer Research Institute of Molecular Oncology (IEOIFOM, Milan, Italy). All animal experiments were carried out in strict accordance with Italian laws (Legislative Decree 26/2014 and subsequent amendments) and were approved by the institutional committee. NSG mice were engrafted with 300,000 primary human AML cells (M4, acute myelomonocytic leukemia with wild-type FLT3). On day 19 after introduction of the AML cells, once a systemic xenograft had been confirmed, mice were randomized into three groups: vehicle-treatment group (n=5), low-dose ARQ531 treatment group (25 mg/kg; n=5) and high-dose ARQ531 treatment group (37.5 mg/kg; n=5) and the percentage of human leukemic cells in peripheral blood was measured weekly until day 42. The phenotype of human cells in NSG mice was evaluated using the following anti-human antibodies: anti-CD117-PeCy7 (IMMU 103.44), anti-CD45-APC (J.33), anti-CD34-APCCy7 (D3HL60.251) from Beckman-Coulter (Irving, TX, USA) and anti-mouse CD45-PE (30-F11) from BD Biosciences to exclude murine cell contamination. Cell suspensions were evaluated by a three-laser, ten-color flow cytometer (Navios, Beckman Coulter, Brea, CA, USA) using analysis gates designed to exclude dead cells, platelets, and debris. Percentages of stained cells were determined and compared to appropriate negative controls. Seven-aminoactinomycin D (7AAD) from Sigma- Aldrich was used to enumerate viable, apoptotic, and dead cells.
All in vitro experiments were repeated at least three times and performed in triplicate; a representative experiment is shown in each figure. All data are shown as mean ± standard deviation (SD). The Student t test was applied to compare two experimental groups using Graph-Pad Prism software (http://www.graphpad.com). The minimal level of significance was specified as P<0.05. Survival analysis was performed by the Kaplan-Meier method, and the log-rank test was used to compare survival differences. Drug interactions were assessed by CalcuSyn 2 software (Biosoft), which is based on the Chou-Talalay method. A combination index (CI) of 1 indicates an additive effect; a CI<1 indicates synergism and a CI>1 indicates antagonism.
ARQ531 shows strong anti-acute myeloid leukemia activity but preserves normal hematopoietic stem cells
In line with previously reported data,15,16 we observed that BTK is frequently dysregulated in AML, with mRNA levels being significantly higher than in other cancer types (Online Supplementary Figure S1). To confirm its relative abundance, we screened a representative panel of human AML cell lines and primary blasts for BTK expression and activity by western blot (Figure 1A). Protein was detectable in all AML-screened cells (15/15) and, more importantly, independent of specific mutational profiling. Similarly, BTK activity (measured by Y223 phosphorylation) was observed in FLT3 wild-type and FLT3 mutated cells as well. An analogous investigation was applied to a larger cohort of AML patients derived from The Cancer Genome Atlas database, which showed uniform expression of BTK transcript in different AML subtypes. Overall, these data, by confirming the presence of BTK in AML, support targeting this kinase in this hematologic malignancy, as previously reported.14,15
ARQ531 is a recently described, reversible BTK inhibitor with promising activity in mouse models of chronic lymphocytic leukemia and lymphomas.27 Based on constitutively active BTK levels observed in AML cells, we evaluated the therapeutic activity of ARQ531 on these cells, using ibrutinib as a control. In vitro efficacy screening was performed on cultured (n=8) and primary (n=13) AML cells, comparing the efficacy of both drugs. As shown in Figure 1B, exposure to ARQ531 reduced in vitro viability more than ibrutinib did (Figure 1C). Analysis of the half maximal inhibitory concentration (IC50) at 48 h after treatment showed that the cells were more sensitive to ARQ531 than to ibrutinib, which exhibited 10-fold lower activity. (Figure 1D) A significant anti-AML effect of ARQ531 was also observed on blasts from AML patients (n=13) regardless of mutational status, European LeukemiaNet risk, and surface expression of CD117 (Figure 1E, Table 1). Consistent with these data, a dosedependent increase in the percentage of apoptotic and dead cells measured by annexin V and propidium iodide staining was also observed after ARQ531 treatment, together with several apoptotic features including caspase 3 and poly(AD-ribose) polymerase cleavage as well as reduction of anti-apoptotic MCL-1 and BCL-2 protein expression (Figure 1F, G and Online Supplementary Figure S2A). Viability was completely restored by pre-incubation with the pan-caspase inhibitor Z-VAD (Online Supplementary Figure S2B) In contrast, ibrutinib treatment resulted in weaker effects on apoptosis, thus suggesting that ARQ531 is more effective than ibrutinib, probably because it induces downregulation of additional survival mechanisms.
It is well known that the bone marrow microenvironment has a role in the promotion of tumor growth, survival and drug-resistance.28We therefore treated AML cells in the presence of normal or leukemic mesenchymal stromal cells. As expected, normal and AML stroma both protected tumor cells from spontaneous apoptosis; however, the efficacy of ARQ531 was preserved, with no significant effect on the viability of mesenchymal stromal cells (data not shown). Indeed, compared to spontaneous apoptosis of blast cells, ARQ531 increased cell death in AML cells cultured alone, and preserved its activity in the presence of normal or AML mesenchymal stromal cells, suggesting that ARQ531 abrogates the survival benefit from stromal cells (Figure 2A). Overall, our data indicate that ARQ531 is a potent anti-AML drug even in the presence of a tumorsupportive microenvironment, and irrespective of FLT3 mutational status.21 Finally, ARQ531 activity on normal cells was also investigated by employing clonogenic and viability assays in order to measure the impact of treatment on both CD34+ cells and mononuclear cells isolated from the bone marrow and peripheral blood of healthy donors. As shown in Figure 2B-D, all of these cells were largely unaffected by exposure to ARQ531 at dose levels toxic to tumor cells, proving that ARQ531 targets cancer cells without off-target effects on hematopoietic stem cells, resulting in a favorable therapeutic index.
BTK signaling inhibition partially contributes to the anti-leukemic activity of ARQ531
Based on its reported activity, we first studied the effect of ARQ531 on BTK signaling by analyzing tumor cell migration.27,29-31 A transwell assay system was employed to investigate the role of the stromal cell-derived factor 1 (SDF-1)/CXCR4 axis in the anti-AML activity of ARQ531. As shown in Online Supplementary Figure S3, ARQ531 reduced tumor cell migration in response to SDF-1 by 66% (P=0.001), suggesting similar activity to ibrutinib (71% reduction; P<0.001).
Next, to confirm the role of BTK in the anti-AML activity of ARQ531, we investigated its effect on BTK signaling in AML cells over a range of concentrations. As shown in Figure 2E, ARQ531 treatment completely abrogated the activity of BTK, as measured by Y223 phosphorylation, similar to the effects seen with ibrutinib treatment. However, as shown in Figure 1B, ARQ531 has anti-AML activity even on cells expressing low levels of BTK, suggesting that BTK targeting might not be critical for the activity of ARQ531. To corroborate this hypothesis, we treated BTK-silenced (BTK knocked down, BTK-KD) AML cells with increasing doses of ARQ531. ARQ531 treatment reduced the viability of both BTK-KD and BTK wild-type cells to about 50% of control, demonstrating the importance of alternative targets for ARQ531 activity in AML (Figure 2F).
ARQ531 treatment suppresses transcriptional oncogenic activity in acute myeloid leukemia cells
To identify ARQ531-induced global perturbations in transcriptional profiling, we generated RNA-sequencing data and performed functional annotation analysis of drug- versus dimethylsulfoxide-treated AML cells. As shown in Online Supplementary Figure S4A, principal component analysis segregated samples based on treatment, suggesting a coherent transcriptional result rather than global, non-specific transcriptional silencing in response to this drug. Indeed, analysis of differential expression identified 377 and 852 genes that were significantly upregulated and downregulated, respectively, with a ratio greater than 2-fold and P<0.05. (Figure 3A, B) As a measure of the specificity of this effect, gene set enrichment analysis was performed on the entire set of signatures available from the Molecular Signatures Database (MSigDB). Biological modules associated with oncogenic transcriptional programs (e.g., ribosomal biogenesis and assembly, unfolded protein response stress and MYC) were significantly enriched in ARQ531-suppressed genes (Figure 3C and Online Supplementary Figure S4B). In line with these findings, although treatment did not exert significant suppression of gene sets for factors linked to the pathophysiology of AML, such as C/EBPα-β, RUNX1, PU.1, ERG and FLI1, a significant reverse correlation was observed for transcriptional signatures of MYC-upregulated target genes, which in turn reflects the selective suppression of its transcriptional networks. (Figure 3D) Indeed, reverse transcriptase polymerase chain reaction analysis of MYC and its target, CDC2, showed consistent downregulation following short-term exposure to the drug (Online Supplementary Figure S4C), pointing to ARQ531 as a selective suppressor of the MYC-regulated transcriptional pathway. To further support these data, we used the ARQ531 expression signature to query the Library of Integrated Network-Based Cellular Signatures (LINCS) Program (www.lincscloud.org, web interface available at http://amp.pharm.mssm.edu/L1000CDS2/#/index). As shown in Figure 3E, the most significant ARQ531-correlated signatures were those of oncogenic transcription factor inhibitors (such as fluvastatin, gefitinib and histone deacetylase inhibitors) as well as those related to knockdown of ribosome subunits and translation initiation factors. Together, these data indicate that ARQ531 inhibits oncogenic transcriptional pathways in AML cells.
ARQ531 interferes with the pro-survival MAPK pathway in OCI-AML3 cells
As already reported, ARQ531 is a potent, ATP-competitive, reversible inhibitor of BTK and several additional kinases important to the viability, proliferation, activation, and motility of tumor cells.27 Among the most intriguing additional targets of ARQ531 are RAF1 and MEK1, constituents of the ERK signaling pathway that is frequently dysregulated in tumor cells.32-34 To confirm this activity in AML, cells were treated with increasing doses of ARQ531. As expected, activation of AKT and ERK was inhibited in a dose-dependent manner, likely due to predicted inhibition of RAF1 and MEK1 (Figure 4A). Subsequent experiments confirmed this hypothesis by revealing specific impairment of these kinases after ARQ531 treatment (Figure 4B). To support the pivotal role played by ERK, we exposed cells to the mitogenic effects of a higher serum concentration (20%). As shown in Online Supplementary Figure S5A, B, this strategy resulted in enhanced phosphorylation of ERK, which rescued the anti-AML activity of the drug, thus providing evidence of the relevance of ERK in the observed anti-tumor effect. Moreover, consistent with RNA-sequencing analysis, drug exposure resulted in prominent and specific downregulation of the oncogenic transcription factor MYC at the protein level (Figure 4B). Since the MAPK pathway enhances MYC protein stability by inducing its phosphorylation at serine 62,35 we assessed p-MYC S62 changes in AML-treated cells. As shown in Figure 4C, ARQ531 exposure resulted in a prompt decrease of phosphorylation, followed by a reduction of MYC protein. Accordingly, numerous MYC-addicted oncogenic cellular pathways, such as protein folding machinery, metabolic dependency and genome integrity, were compromised following this treatment, as highlighted by phosphoeukaryotic translation initiation factor 4E (eIF4e), ASCT2 and GLUT1 downregulation and γH2AX enhancement, respectively (Figure 4D). Combined drug screening revealed synergistic activity of ARQ531 with compounds affecting these programs, such as DNA damaging agents (Online Supplementary Figure S6A, B). Overall, these data support the existence of a mechanism of action that begins with MAPK signaling dysregulation and results in ARQ531-induced cytotoxicity in AML cells. Among MYC-controlled programs, protein synthesis is emerging as the limiting step for tumor cell growth,36 so we focused on this pathway. As shown in Figure 4D, AML cells treated with ARQ531 showed marked increases of eukaryotic translation initiation factor 4E-binding protein (4EBP1) with concomitant de-phosphorylation of p70 ribosomal S6 kinase (p70-S6K) and eIF4e which result in blocking of mRNA recruitment to ribosomes for protein translation.37 These data suggest that ARQ531 is a modulator of several hubs controlling translation initiation in AML cells, providing evidence of marked protein synthesis inhibition specifically triggered by this treatment.
Although MYC activation resulting from multiple tumor-driven genetic aberrations has been recognized as a major factor of leukemogenesis, its targeting did not show significant clinical benefit in AML. Thus, by using a small interference RNA (siRNA) strategy, we investigated the role of MYC in the anti-leukemic activity of ARQ531. As shown in Figure 4E, MYC-silenced HL-60 cells (MYC knocked down) were treated with increasing doses of ARQ531. Surprisingly, despite their sensitivity to this treatment, the cells were quite resistant to the loss of MYC protein expression, indicating that additional targets are implicated in anti-AML activity of this small molecule.
Modulation of transcriptional regulatory machinery is an innovative strategy to treat AML.38,39 The oncogenic driver MYB, which is essential in hematopoiesis, is now emerging as a new target for anti-AML therapies.40-45 We hypothesized that ARQ531 treatment of AML cells may inhibit this pathway. To validate this hypothesis, we measured MYB protein levels in ARQ531-treated cells. Exposure to ARQ531 resulted in marked MYB deregulation (Figure 4F), suggesting an important contribution to ARQ531 anti-tumor activity. To gain further insights into MYB reduction triggered by ARQ531, we tested the proteasome contribution, as previously reported for other MYB-targeting agents.43 As shown in Figure 4G, co-treatment with the proteasome inhibitor MG132 preserved MYB protein levels, suggesting that, in addition to its supposed effects on protein synthesis, ARQ531 affects MYB degradation. Our findings therefore suggest that ARQ531 interferes with many pro-survival pathways, such as MAPK, in AML cells.
ARQ531 dysregulates multiple oncogenic transcription factors in acute myeloid leukemia cells
To gain insights into the molecular mechanisms of ARQ531, we analyzed treated HL-60 cells over time. As shown in Figure 5A, BTK signaling deregulation occurred early, after 2 h of treatment, followed by MYC downregulation. Importantly, apoptotic cell features, including PARP and caspase 3 cleavage, were seen after the decrease in MYB, suggesting that these events are crucial for ARQ531 anti-tumor activity. Published data show that small molecule BET inhibitors, by downregulating hematopoietic transcription factors, lead to potent therapeutic effects in several cancer models, including AML.46,47 We therefore tested the anti-AML activity of the BTK inhibitor ibrutinib combined with the BET bromodomain inhibitor JQ1.48 As was seen in other cell types,25 the BET inhibitor enhanced the anti-tumor activity of the BTK inhibitor (Figure 5B). Western blot analysis of AML-treated cells confirmed these findings, further supporting the pivotal role of transcription factor deregulation in the anti-AML activity of ARQ531 (Figure 5C). Based on these data, we investigated the role of MYB in ARQ531 anti- AML activity by challenging BTK-silenced cells with the repurposed drug mebendazole, recently described as a drug that induces MYB degradation.44 As expected, mebendazole reduced cell viability of BTK-depleted cells more than a control (Online Supplementary Figure S7A). We then performed several genetic studies to confirm these findings. As shown in Figure 6A, reduced viability was observed in MYC/MYB-depleted cells compared with the control, but more importantly, viability was significantly dampened in triple MYB/MYC/BTK-silenced cells (reduction by 64.7% to 38.5%), suggesting that such inhibition is detrimental to AML cells. Consistently, simultaneous silencing of MYC, MYB and BTK resulted in PARP cleavage together with impairment of ERK phosphorylation (Figure 6B). Similar data were observed in BTK-KD cells (Figure 6C and Online Supplementary Figure S7B). Nonetheless, the effect of triple knockdown was not quite equal to that of ARQ531 treatment, suggesting that other covalent or noncovalent targets are involved in the drug’s mechanism of action.
Since MYB is reported to be crucial for leukemogenesis, 42,49 we assessed the relationship between BTK and MYB in AML cells. Molecular data analysis of different publicly available AML cohort databases revealed higher expression of BTK and MYB in AML cells compared to normal HSC, with a positive correlation (Online Supplementary Figure S8A-C). These data support the notion that several oncogenic pathways, including BTK, MYB and MYC, are essential for leukemia cell maintenance, supporting the concept that ARQ531 could be an effective multi-targeted agent for the treatment of AML.

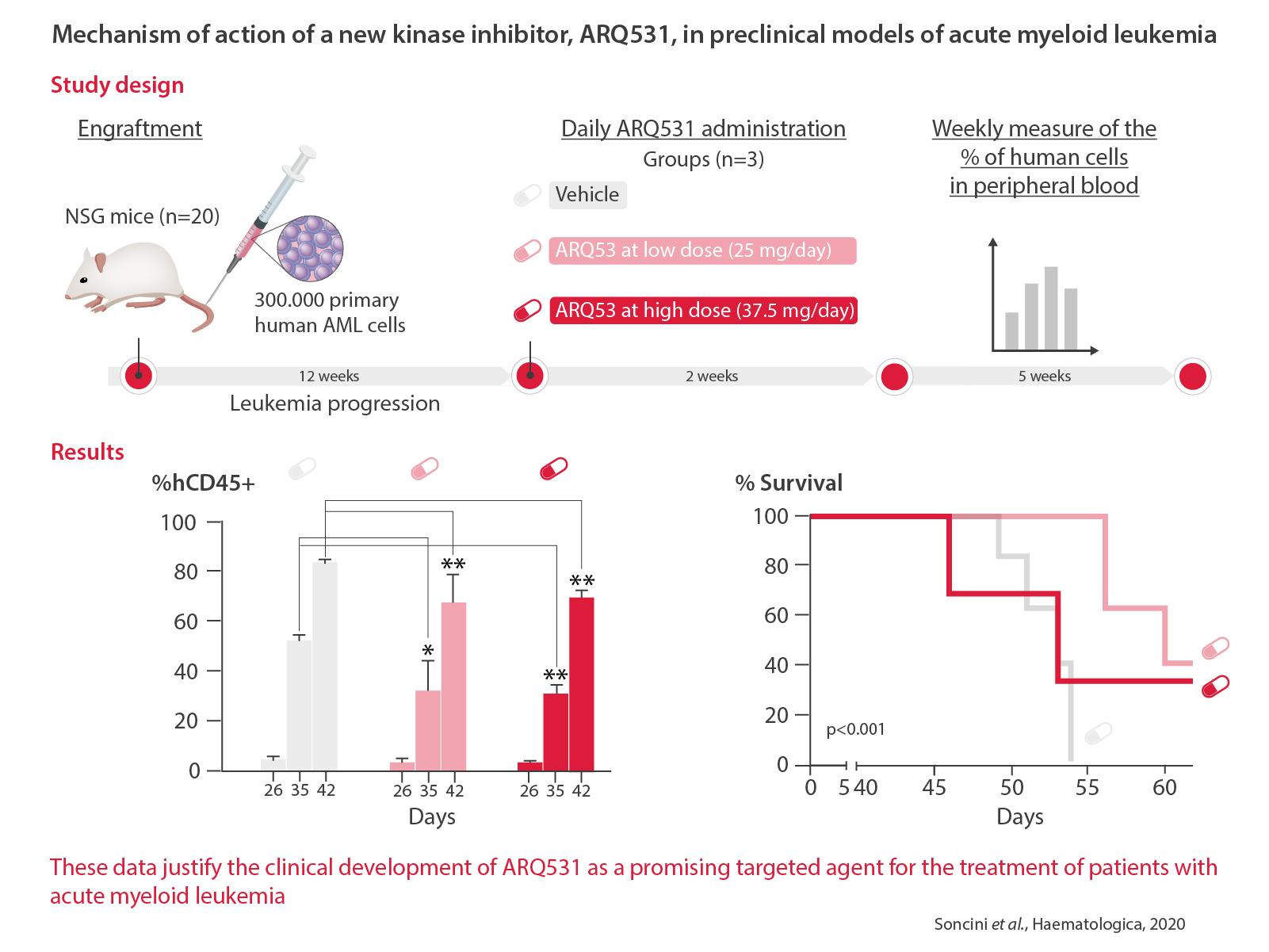

ARQ531 shows potent activity in a patient-derived xenograft mouse model of acute myeloid leukemia
Based on in vitro data, we next assessed whether ARQ531 treatment would be effective and tolerable in animal models by using our established AML patient-derived xenograft model. NSG mice (n=20) were engrafted with 300,000 primary human AML cells (M4, acute myelomonocytic leukemia). Successful engraftment was documented by measuring circulating human CD45+ (hCD45+) cells in the animals’ peripheral blood with flow cytometry weekly for 2 months. At day 19 after infusion of the cells, once a systemic xenograft had been confirmed, mice were dosed orally with vehicle or ARQ531 (25 or 37.5 mg/kg; 5 mice/group) daily for 2 weeks. The percentage of human cells in peripheral blood samples was measured once a week up to day 42 (Figure 7A). ARQ531-treated mice had significant reductions in the numbers of hCD45+ cells despite very rapid growth of the aggressive leukemic cells (Figure 7B). At day 42 after starting treatment, there were 66.5±0.1% and 69.5±0.2% hCD45+ cells after ARQ531 treatment at the doses of 37.5 and 25 mg/kg, respectively; in contrast, vehicle-treated mice had 85% hCD45+ cells (**0.005<P<0.008) (Figure 7C). Analyses of bone marrow and spleen also showed reductions in tumor burden (hCD45+), although they were not statistically significant (Online Supplementary Figure S9). In addition, ARQ531 treatment was found to improve mouse survival significantly. As shown in Figure 7D, Kaplan-Meier analyses indicated that mice treated with the higher dose of ARQ531 survived significantly longer than those treated with the vehicle control (P<0.001). Overall, treatment was well tolerated as suggested by the maintenance of body weight and the lack of signs of toxicity, such as lethargy, ruffled fur, respiratory distress and hunchback posture (data not shown). Together these data indicate that, in vivo, ARQ531 administration was well tolerated and efficiently reduced leukemia cell growth, providing impetus for clinical evaluation of this novel small molecule.
AML cells often demonstrate constitutive activation of tyrosine kinase signaling resulting from specific genomic aberrations.16 These aberrations are attractive therapeutic targets, as demonstrated by the pharmacological inhibitor of BTK, ibrutinib, which blocks AML blast proliferation, migration, and leukemic cell adhesion to bone marrow stromal cells.15 However, BTK-based treatment of AML patients has been unsuccessful to date,22 with only a few preclinical, ex vivo studies suggesting that ibrutinib is effective against FLT3(ITD) and CD117 harboring cells, unlike the clinical benefit seen in patients with chronic lymphocytic leukemia and lymphoma.18,21 Adding inhibitory pressure on the BTK pathway might enhance the efficacy of this strategy, as previously reported.19,20,50-54 In this study, using a combination of genetic and biochemical approaches, we extensively characterized ARQ531, a novel, reversible, orally bioavailable, ATP-competitive inhibitor of BTK and associated kinases. ARQ531 greatly compromises AML cell survival by modulating transcriptional regulatory machinery coordinated by MYC, demonstrating activity both in vitro and in a patient-derived xenograft AML mouse model. Thus, our study provides the rationale for developing clinical trials using ARQ531 as a new treatment for patients with AML.
Since ibrutinib does not directly inhibit components of the MAPK pathway, it is possible that the superior activity of ARQ531 in AML may be due to its modulation of additional targets, including kinases related to ERK signaling.27 Although screening analysis of Src-family kinases (including Lyn and Syk) did not show any effect on AML cells,55-57 (Online Supplementary Figure S10) we assume that targeting of additional kinases is responsible for the marked anti-AML activity of ARQ531. By combining computational models and whole transcriptional analysis, we observed that ARQ531 treatment induces dysregulation of several transcription-addicted programs, including MYC and MYB. The combination of BTK inhibition and MYC/MYB downregulation explains the improved anti- AML activity of ARQ531 compared to single agent tyrosine kinase inhibitors such as ibrutinib. Since ARQ531 simultaneously inhibits different cellular functions such as folding machinery, metabolic dependency, and genome integrity, it may provide deeper and more durable remissions, while delaying the emergence of resistance. Additionally, based on reports that degrading MYB eradicates AML cells in mice without impairing normal myelopoiesis,46 ARQ531 treatment may be safe for hematopoietic precursor cells, supporting its clinical relevance. We also provide experimental evidence that the bone marrow stroma is not affected by treatment and, more importantly, does not affect the anti-tumor activity of ARQ531. Preliminary phase I studies confirm the safety profile of ARQ531, adding to the data that support its clinical development.
Recent studies suggest that modulating transcriptional regulatory machinery is an innovative strategy to treat blood malignancies, including AML.14,38 An example of this strategy is all-trans retinoic acid treatment which, by modulating the transcriptional target PML-RARα, induces differentiation of leukemic blasts resulting in improved survival of patients.58 However, most transcription factors remain notoriously difficult to target, with siRNA-mediated silencing of gene expression being one of the few feasible approaches.59 Other oncoproteins, including MYC and MYB, are emerging as compelling targets for drug development in AML, due to their ability to influence tumor proliferation.40-44,60,61 In this context, the new small molecule ARQ531, by affecting multiple oncogenic pathways simultaneously, results in perturbation of the transcriptional regulatory machinery which maintains AML cell integrity. Therefore, targeting BTK, MYC and MYB with ARQ531 represents an innovative strategy for improving the efficacy of AML therapy.
In summary, we have demonstrated that ARQ531, a new reversible tyrosine kinase inhibitor, suppresses AML cell viability in vitro and in vivo by abrogating different oncogenic targets including BTK, MYC and MYB. Gene silencing of BTK, MYC and MYB in AML cells was not as effective as ARQ531, suggesting that other covalent or noncovalent targets are involved in its mechanism of action. Based on our preclinical data, we provide the rationale to explore the effects of this multi-targeted agent on hematologic malignancies as well as solid tumors, beyond investigating its clinical benefit in AML patients.
- Received April 23, 2019
- Accepted October 10, 2019
- Sant M, Allemani C, Tereanu C. Incidence of hematologic malignancies in Europe by morphologic subtype: results of the HAEMACARE project. Blood. 2010; 116(19):3724-3734. https://doi.org/10.1182/blood-2010-05-282632PubMedGoogle Scholar
- Ferrara F, Schiffer CA. Acute myeloid leukaemia in adults. Lancet. 2013; 381(9865):484-495. https://doi.org/10.1016/S0140-6736(12)61727-9Google Scholar
- Esposito MT, So CW. DNA damage accumulation and repair defects in acute myeloid leukemia: implications for pathogenesis, disease progression, and chemotherapy resistance. Chromosoma. 2014; 123(6):545-561. https://doi.org/10.1007/s00412-014-0482-9PubMedGoogle Scholar
- Stein EM. FLT3 inhibitors for relapsed or refractory acute myeloid leukaemia. Lancet Oncol. 2018; 19(7):849-850. https://doi.org/10.1016/S1470-2045(18)30335-8Google Scholar
- El Fakih R, Rasheed W, Hawsawi Y, Alsermani M, Hassanein M.. Targeting FLT3 mutations in acute myeloid leukemia. Cells. 2018; 7(1):4. https://doi.org/10.3390/cells7010004PubMedPubMed CentralGoogle Scholar
- DiNardo CD, Stein EM, de Botton S. Durable remissions with ivosidenib in IDH1-mutated relapsed or refractory AML. N Engl J Med. 2018; 378(25):2386-2398. https://doi.org/10.1056/NEJMoa1716984PubMedGoogle Scholar
- Buggy JJ, Elias L.. Bruton tyrosine kinase (BTK) and its role in B-cell malignancy. Int Rev Immunol. 2012; 31(2):119-132. https://doi.org/10.3109/08830185.2012.664797PubMedGoogle Scholar
- Hendriks RW, Bredius RG, Pike-Overzet K, Staal FJ. Biology and novel treatment options for XLA, the most common monogenetic immunodeficiency in man. Expert Opin Ther Targets. 2011; 15(8):1003-1021. https://doi.org/10.1517/14728222.2011.585971PubMedGoogle Scholar
- Herman SEM, Montraveta A, Niemann CU. The Bruton tyrosine kinase (BTK) inhibitor acalabrutinib demonstrates potent on-target effects and efficacy in two mouse models of chronic lymphocytic leukemia. Clin Cancer Res. 2017; 23(11):2831-2341. https://doi.org/10.1158/1078-0432.CCR-16-0463PubMedPubMed CentralGoogle Scholar
- Wilson WH, Young RM, Schmitz R. Targeting B cell receptor signaling with ibrutinib in diffuse large B cell lymphoma. Nat Med. 2015; 21(8):922-926. https://doi.org/10.1038/nm.3884PubMedGoogle Scholar
- Advani RH, Buggy JJ, Sharman JP. Bruton tyrosine kinase inhibitor ibrutinib (PCI-32765) has significant activity in patients with relapsed/refractory B-cell malignancies. J Clin Oncol. 2013; 31(1):88-94. https://doi.org/10.1200/JCO.2012.42.7906PubMedPubMed CentralGoogle Scholar
- Treon SP, Tripsas CK, Meid K. Ibrutinib in previously treated Waldenstrom's macroglobulinemia. N Engl J Med. 2015; 372(15):1430-1340. https://doi.org/10.1056/NEJMoa1501548PubMedGoogle Scholar
- Rushworth SA, Bowles KM, Barrera LN, Murray MY, Zaitseva L, MacEwan DJ. BTK inhibitor ibrutinib is cytotoxic to myeloma and potently enhances bortezomib and lenalidomide activities through NF-kappaB. Cell Signal. 2013; 25(1):106-112. https://doi.org/10.1016/j.cellsig.2012.09.008PubMedGoogle Scholar
- Grommes C, Pastore A, Palaskas N. Ibrutinib unmasks critical role of Bruton tyrosine kinase in primary CNS lymphoma. Cancer Discov. 2017; 7(9):1018-1029. https://doi.org/10.1158/2159-8290.CD-17-0613PubMedPubMed CentralGoogle Scholar
- Rushworth SA, Murray MY, Zaitseva L, Bowles KM, MacEwan DJ. Identification of Bruton's tyrosine kinase as a therapeutic target in acute myeloid leukemia. Blood. 2014; 123(8):1229-1238. https://doi.org/10.1182/blood-2013-06-511154PubMedGoogle Scholar
- Oellerich T, Mohr S, Corso J. FLT3- ITD and TLR9 use Bruton tyrosine kinase to activate distinct transcriptional programs mediating AML cell survival and proliferation. Blood. 2015; 125(12):1936-1947. https://doi.org/10.1182/blood-2014-06-585216PubMedGoogle Scholar
- Wu H, Hu C, Wang A. Ibrutinib selectively targets FLT3-ITD in mutant FLT3- positive AML. Leukemia. 2016; 30(3):754-757. https://doi.org/10.1038/leu.2015.175PubMedPubMed CentralGoogle Scholar
- Rushworth SA, Pillinger G, Abdul-Aziz A. Activity of Bruton's tyrosine-kinase inhibitor ibrutinib in patients with CD117- positive acute myeloid leukaemia: a mechanistic study using patient-derived blast cells. Lancet Haematol. 2015; 2(5):e204-211. https://doi.org/10.1016/S2352-3026(15)00046-0Google Scholar
- Rotin LE, Gronda M, MacLean N. Ibrutinib synergizes with poly(ADP-ribose) glycohydrolase inhibitors to induce cell death in AML cells via a BTK-independent mechanism. Oncotarget. 2016; 7(3):2765-2779. https://doi.org/10.18632/oncotarget.6409PubMedPubMed CentralGoogle Scholar
- Li X, Yin X, Wang H. The combination effect of homoharringtonine and ibrutinib on FLT3-ITD mutant acute myeloid leukemia. Oncotarget. 2017; 8(8):12764-12774. https://doi.org/10.18632/oncotarget.14463PubMedPubMed CentralGoogle Scholar
- Pillinger G, Abdul-Aziz A, Zaitseva L. Targeting BTK for the treatment of FLT3- ITD mutated acute myeloid leukemia. Sci Rep. 2015; 5:12949. https://doi.org/10.1038/srep12949PubMedPubMed CentralGoogle Scholar
- Cortes JE, Estey E, Stein AS, Graef T. A multicenter, open-label phase 2a study of ibrutinib with or without cytarabine in patients with acute myeloid leukemia (PCYC-1131). J Clin Oncol. 2015; 33(15_suppl):TPS7096-TPS7096. https://doi.org/10.1200/jco.2015.33.15_suppl.tps7096Google Scholar
- Chong IY, Aronson L, Bryant H. Mapping genetic vulnerabilities reveals BTK as a novel therapeutic target in oesophageal cancer. Gut. 2018; 67(10):1780-1792. https://doi.org/10.1136/gutjnl-2017-314408PubMedPubMed CentralGoogle Scholar
- Moyo TK, Wilson CS, Moore DJ, Eischen CM. Myc enhances B-cell receptor signaling in precancerous B cells and confers resistance to Btk inhibition. Oncogene. 2017; 36(32):4653-4661. https://doi.org/10.1038/onc.2017.95PubMedPubMed CentralGoogle Scholar
- Sun B, Shah B, Fiskus W, Qi J, Rajapakshe K, Coarfa C. Synergistic activity of BET protein antagonist-based combinations in mantle cell lymphoma cells sensitive or resistant to ibrutinib. Blood. 2015; 126(13):1565-1574. https://doi.org/10.1182/blood-2015-04-639542PubMedPubMed CentralGoogle Scholar
- Sasi BK, Martines C, Xerxa E. Inhibition of SYK or BTK augments venetoclax sensitivity in SHP1-negative/BCL-2- positive diffuse large B-cell lymphoma. Leukemia. 2019; 33(10):2416-2428. https://doi.org/10.1038/s41375-019-0442-8PubMedGoogle Scholar
- Reiff SD, Mantel R, Smith LL. The BTK inhibitor ARQ 531 targets ibrutinibresistant CLL and Richter transformation. Cancer Discov. 2018; 8(10):1300-1315. https://doi.org/10.1158/2159-8290.CD-17-1409PubMedPubMed CentralGoogle Scholar
- Lane SW, Scadden DT, Gilliland DG. The leukemic stem cell niche: current concepts and therapeutic opportunities. Blood. 2009; 114(6):1150-1157. https://doi.org/10.1182/blood-2009-01-202606PubMedPubMed CentralGoogle Scholar
- Bam R, Ling W, Khan S. Role of Bruton's tyrosine kinase in myeloma cell migration and induction of bone disease. Am J Hematol. 2013; 88(6):463-471. https://doi.org/10.1002/ajh.23433PubMedPubMed CentralGoogle Scholar
- Chang BY, Francesco M, De Rooij MF. Egress of CD19(+)CD5(+) cells into peripheral blood following treatment with the Bruton tyrosine kinase inhibitor ibrutinib in mantle cell lymphoma patients. Blood. 2013; 122(14):2412-2424. https://doi.org/10.1182/blood-2013-02-482125PubMedPubMed CentralGoogle Scholar
- Zaitseva L, Murray MY, Shafat MS. Ibrutinib inhibits SDF1/CXCR4 mediated migration in AML. Oncotarget. 2014; 5(20):9930-9938. https://doi.org/10.18632/oncotarget.2479PubMedPubMed CentralGoogle Scholar
- Dhillon AS, Hagan S, Rath O, Kolch W.. MAP kinase signalling pathways in cancer. Oncogene. 2007; 26(22):3279-3290. https://doi.org/10.1038/sj.onc.1210421PubMedGoogle Scholar
- Lamba S, Russo M, Sun C. RAF suppression synergizes with MEK inhibition in KRAS mutant cancer cells. Cell Rep. 2014; 8(5):1475-1483. https://doi.org/10.1016/j.celrep.2014.07.033PubMedGoogle Scholar
- McCubrey JA, Steelman LS, Franklin RA. Targeting the RAF/MEK/ERK, PI3K/AKT and p53 pathways in hematopoietic drug resistance. Adv Enzyme Regul. 2007; 47:64-103. https://doi.org/10.1016/j.advenzreg.2006.12.013PubMedPubMed CentralGoogle Scholar
- Sears R, Nuckolls F, Haura E, Taya Y, Tamai K, Nevins JR. Multiple Ras-dependent phosphorylation pathways regulate Myc protein stability. Genes Dev. 2000; 14(19):2501-2514. https://doi.org/10.1101/gad.836800PubMedPubMed CentralGoogle Scholar
- Sonenberg N, Hinnebusch AG. Regulation of translation initiation in eukaryotes: mechanisms and biological targets. Cell. 2009; 136(4):731-745. https://doi.org/10.1016/j.cell.2009.01.042PubMedPubMed CentralGoogle Scholar
- Zucal C, D'Agostino VG, Casini A. EIF2A-dependent translational arrest protects leukemia cells from the energetic stress induced by NAMPT inhibition. BMC Cancer. 2015; 15:855. https://doi.org/10.1186/s12885-015-1845-1PubMedPubMed CentralGoogle Scholar
- Brien GL, Valerio DG, Armstrong SA. Exploiting the epigenome to control cancerpromoting gene-expression programs. Cancer Cell. 2016; 29(4):464-476. https://doi.org/10.1016/j.ccell.2016.03.007PubMedPubMed CentralGoogle Scholar
- Li S, Vallet S, Sacco A, Roccaro A, Lentzsch S, Podar K.. Targeting transcription factors in multiple myeloma: evolving therapeutic strategies. Expert Opin Investig Drugs. 2019; 28(5):445-462. https://doi.org/10.1080/13543784.2019.1605354PubMedGoogle Scholar
- Coulibaly A, Haas A, Steinmann S, Jakobs A, Schmidt TJ, Klempnauer KH. The natural anti-tumor compound Celastrol targets a Myb-C/EBPbeta-p300 transcriptional module implicated in myeloid gene expression. PLoS One. 2018; 13(2):e0190934. https://doi.org/10.1371/journal.pone.0190934PubMedPubMed CentralGoogle Scholar
- Ramaswamy K, Forbes L, Minuesa G. Peptidomimetic blockade of MYB in acute myeloid leukemia. Nat Commun. 2018; 9(1):110. https://doi.org/10.1038/s41467-017-02618-6PubMedPubMed CentralGoogle Scholar
- Xu Y, Milazzo JP, Somerville TDD. A TFIID-SAGA Perturbation that targets MYB and suppresses acute myeloid leukemia. Cancer Cell. 2018; 33(1):13-28e8. https://doi.org/10.1016/j.ccell.2017.12.002PubMedPubMed CentralGoogle Scholar
- Walf-Vorderwulbecke V, Pearce K, Brooks T. Targeting acute myeloid leukemia by drug-induced c-MYB degradation. Leukemia. 2018; 32(4):882-889. https://doi.org/10.1038/leu.2017.317PubMedGoogle Scholar
- Liu W, Wu M, Huang Z. c-myb hyperactivity leads to myeloid and lymphoid malignancies in zebrafish. Leukemia. 2017; 31(1):222-233. https://doi.org/10.1038/leu.2016.170PubMedPubMed CentralGoogle Scholar
- Uttarkar S, Dasse E, Coulibaly A. Targeting acute myeloid leukemia with a small molecule inhibitor of the Myb/p300 interaction. Blood. 2016; 127(9):1173-1182. https://doi.org/10.1182/blood-2015-09-668632PubMedGoogle Scholar
- Roe JS, Mercan F, Rivera K, Pappin DJ, Vakoc CR. BET bromodomain inhibition suppresses the function of hematopoietic transcription factors in acute myeloid leukemia. Mol Cell. 2015; 58(6):1028-1039. https://doi.org/10.1016/j.molcel.2015.04.011PubMedPubMed CentralGoogle Scholar
- Zuber J, Shi J, Wang E. RNAi screen identifies Brd4 as a therapeutic target in acute myeloid leukaemia. Nature. 2011; 478(7370):524-528. https://doi.org/10.1038/nature10334PubMedPubMed CentralGoogle Scholar
- Filippakopoulos P, Qi J, Picaud S. Selective inhibition of BET bromodomains. Nature. 2010; 468(7327):1067-1073. https://doi.org/10.1038/nature09504PubMedPubMed CentralGoogle Scholar
- Pattabiraman DR, Gonda TJ. Role and potential for therapeutic targeting of MYB in leukemia. Leukemia. 2013; 27(2):269-277. https://doi.org/10.1038/leu.2012.225PubMedGoogle Scholar
- Linley A, Krysov S, Ponzoni M, Johnson PW, Packham G, Stevenson FK. Lectin binding to surface Ig variable regions provides a universal persistent activating signal for follicular lymphoma cells. Blood. 2015; 126(16):1902-1910. https://doi.org/10.1182/blood-2015-04-640805PubMedGoogle Scholar
- Cea M, Cagnetta A, Acharya C. Dual NAMPT and BTK targeting leads to synergistic killing of Waldenstrom macroglobulinemia cells regardless of MYD88 and CXCR4 somatic mutation status. Clin Cancer Res. 2016; 22(24):6099-6109. https://doi.org/10.1158/1078-0432.CCR-16-0630PubMedPubMed CentralGoogle Scholar
- Deng J, Isik E, Fernandes SM, Brown JR, Letai A, Davids MS. Bruton's tyrosine kinase inhibition increases BCL-2 dependence and enhances sensitivity to venetoclax in chronic lymphocytic leukemia. Leukemia. 2017; 31(10):2075-2084. https://doi.org/10.1038/leu.2017.32PubMedPubMed CentralGoogle Scholar
- Hing ZA, Mantel R, Beckwith KA. Selinexor is effective in acquired resistance to ibrutinib and synergizes with ibrutinib in chronic lymphocytic leukemia. Blood. 2015; 125(20):3128-3132. https://doi.org/10.1182/blood-2015-01-621391PubMedPubMed CentralGoogle Scholar
- de Rooij MF, Kuil A, Kraan W. Ibrutinib and idelalisib target B cell receptorbut not CXCL12/CXCR4-controlled integrin- mediated adhesion in Waldenstrom macroglobulinemia. Haematologica. 2016; 101(3):e111-115. https://doi.org/10.3324/haematol.2015.137265PubMedPubMed CentralGoogle Scholar
- Puissant A, Fenouille N, Alexe G. SYK is a critical regulator of FLT3 in acute myeloid leukemia. Cancer Cell. 2014; 25(2):226-242. https://doi.org/10.1016/j.ccr.2014.01.022PubMedPubMed CentralGoogle Scholar
- Hahn CK, Berchuck JE, Ross KN. Proteomic and genetic approaches identify Syk as an AML target. Cancer Cell. 2009; 16(4):281-294. https://doi.org/10.1016/j.ccr.2009.08.018PubMedPubMed CentralGoogle Scholar
- Dos Santos C, Demur C, Bardet V, Prade-Houdellier N, Payrastre B, Recher C.. A critical role for Lyn in acute myeloid leukemia. Blood. 2008; 111(4):2269-2279. https://doi.org/10.1182/blood-2007-04-082099PubMedGoogle Scholar
- Lo-Coco F, Orlando SM, Platzbecker U.. Treatment of acute promyelocytic leukemia. N Engl J Med. 2013; 369(15):1472. Google Scholar
- Yan C, Higgins PJ. Drugging the undruggable: transcription therapy for cancer. Biochim Biophys Acta. 2013; 1835(1):76-85. https://doi.org/10.1016/j.bbcan.2012.11.002PubMedPubMed CentralGoogle Scholar
- Mertz JA, Conery AR, Bryant BM. Targeting MYC dependence in cancer by inhibiting BET bromodomains. Proc Natl Acad Sci U S A. 2011; 108(40):16669-16674. https://doi.org/10.1073/pnas.1108190108PubMedPubMed CentralGoogle Scholar
- Zuber J, Rappaport AR, Luo W. An integrated approach to dissecting oncogene addiction implicates a Myb-coordinated self-renewal program as essential for leukemia maintenance. Genes Dev. 2011; 25(15):1628-1640. https://doi.org/10.1101/gad.17269211PubMedPubMed CentralGoogle Scholar
