Thrombopoietin maintains cell numbers of hematopoietic stem and progenitor cells with megakaryopoietic potential

Aled O'Neill; Desmond Chin; Darren Tan; A Qilah Banu Bte Abdul Majeed; Ayako Nakamura-Ishizu; Toshio Suda

doi:10.3324/haematol.2019.241406

Open access journal of the Ferrata-Storti Foundation, a non-profit organization

Articles

Thrombopoietin maintains cell numbers of hematopoietic stem and progenitor cells with megakaryopoietic potential

Aled O'Neill
Desmond Chin
Darren Tan
A Qilah Banu Bte Abdul Majeed
Ayako Nakamura-Ishizu
Toshio Suda

Cancer Science Institute, National University of Singapore, Singapore;

Cancer Science Institute, National University of Singapore and Kumamoto University, Japan

Vol. 106 No. 7 (2021): July, 2021 https://doi.org/10.3324/haematol.2019.241406

Abstract

Thrombopoietin (THPO) has long been known to influence megakaryopoiesis and hematopoietic stem and progenitor cells (HSPCs), though the exact mechanisms through which it acts are unknown. Here we show that MPL expression correlates with megakaryopoietic potential of HSPCs and identify a population of quiescent progenitor cells that show limited dependence on THPO signalling. We show that THPO is primarily responsible for maintenance of hematopoietic cells with megakaryocytic (Mk) differentiation potential and their subsequent Mk differentiation and maturation. The loss of Mks in THPO knockout (KO) mouse models results in a reduction of the Mk derived chemokine platelet factor 4 (CXCL4/PF4) in the bone marrow and administration of recombinant CXCL4/PF4 rescues the loss of progenitor cell quiescence observed in these mice. CXCL4/PF4 treatment does not rescue reduced HSPC numbers suggesting that thrombopoietin directly maintains HSPC numbers.

Introduction

Hematopoietic stem cells (HSC) are defined by their ability to not only differentiate into all blood cell lineages, but also to self-renew and enter the non-proliferative quiescent state.¹ Maintenance of this quiescent state is thought to rely on several spatially separated niche factors² and there are many candidates for potential ex-vivo maintenance of HSC quiescence including CXCL12 and thrombopoietin (THPO).³ It has long been known that loss of THPO signaling results in reduced HSC numbers and loss of quiescence,⁴^,⁵ although the mechanisms behind this phenomenon are yet to be identified. In addition to influencing quiescence, THPO is known to drive megakaryocyte differentiation and maturation as well as platelet production.⁶

The THPO receptor, myeloproliferative leukemia (MPL), is expressed on HSC and it has been shown that HSC require THPO for survival in vitro.⁷ Cells phenotypically similar to HSC in the hematopoietic compartment have also been shown to differentiate directly into megakaryocytes without cell division, suggesting a close relationship between the earliest megakaryocyte progenitors (MkP) and HSC.⁸ Determining how THPO is responsible for these seemingly different effects has been an object of much research, with several studies on mutated leukemia cell lines suggesting that the expression ratios between MPL and its downstream signal transducer JAK2 as well as extracellular THPO levels may determine whether hematopoietic stem and progenitor cells (HSPC) enter quiescent or proliferative pathways.⁹^,¹⁰ Whether HSC in the bone marrow have different responses to THPO remains to be seen. We, therefore, set out to investigate the effects of THPO on various HSC both in vivo and in vitro.

Methods

Experimental mice

All experiments were performed on 8- to 12-week-old mice in the C57BL/6-NTac background in accordance with Institutional Animal Care and Use Committee protocols. Alb-Cre mice in a white background were kindly provided by Prof. Qingde Wang of the University of Pittsburgh Medical Center and were back-crossed with C57BL/6-NTac mice at least five times.

Bone marrow mononuclear cell isolation

Mice were sacrificed by CO2 asphyxiation and femora, tibiae, pelves, humeri and vertebrae were crushed in phosphatebuffered saline (PBS). Red blood cells were lysed with NH4Cl in PBS and bone marrow mononuclear cells (BMMNC) were stained as described below.

Flow cytometric analysis

All flow cytometric analyses and sorting were performed on a BD FACS Aria II cell sorter. Antibodies used were CD4 (RM4-5, BD Biosciences), CD8a (53-6.7, eBioscience), B220 (RA3-6B2, Biolegend), CD11b (M1/70, BD Biosciences), Ly6G/C (RB6-8C5, Biolegend), Ter119 (TER-119, Biolegend), Sca1 (D7, Biolegend), MPL (AMM2, Immuno-Biological Laboratories), CD41 (MWReg30, BD Biosciences), CD150 (TC15-12F12.2, Biolegend), cKit (2B8, Biolegend), CD34 (RAM34, eBioscience), IL7R (A7R34, eBioscience), Flt3 (A2F10, eBioscience), CD16/32 (93, eBioscience) and CD105 (MJ7/18, Biolegend). Streptavidin (eBioscience) was used to resolve biotinylated antibodies and propidium iodide was added prior to analysis to identify live cells.

mRNA expression

Cells were sorted into Trizol (Thermo Fisher Scientific) and RNA was isolated according to the manufacturer’s protocol. Complementary DNA was reverse transcribed by a SuperScript VILO cDNA Synthesis Kit (Thermo Fisher Scientific) and mRNA expression analyzed using TaqMan Fast Advanced Master Mix (Thermo Fisher Scientific) in a QuantStudio 3 Real-Time PCR system (Thermo Fisher Scientific). Expression levels were calculated relative to the expression of Gapdh.

In vitro culture

BMMNC were isolated as above and cKit enrichment was performed using magnetic activated cell sorting (MACS)-conjugated cKit antibodies (Miltenyi Biotec) and an AutoMACS cell sorter according to the manufacturer’s protocol. Enriched cells were stained with antibodies and sorted to StemSpanII (StemCell Technologies) containing stem cell factor (SCF, 20 ng/mL, Peprotech) and THPO (20 ng/mL, Peprotech), or SCF, THPO, interleukin-3 (IL3, 20 ng/mL, Peprotech), interleukin-6 (IL6, 20 ng/mL, Peprotech) and erythropoietin (EPO, 10 ng/mL, R&D Systems). On day 10 of culture colonies were stained with CD41, CD16/32, CD71 (C2, BD Biosciences), Ter119, CD11b, Ly6C/G and propidium iodide was added to identify live cells. Lineages were gated as shown in Online Supplementary Figure S1 and colonies were defined by the presence of >20 cells of any one of each lineage.

Cell cycle analysis

cKit-enriched BMMNC were isolated as above and stained with PerCP-Cy5.5 lineage cocktail, FITC-conjugated CD34, PEconjugated CD41, PE-Cy7-conjugated Sca1, APC-conjugated CD150 and APC-Cy7-conjugated cKit. Cells were then fixed and permeabilized by IntraPrep Reagent (Beckman Coulter) in accordance with the manufacturer’s protocol. AlexaFluor700-conjugated Ki67 (SolA15, Invitrogen) antibodies and Hoechst 33342 were added after permeabilization and cells were analyzed by flow cytometry.

Rescue experiments

For the rescue experiments, 1 mg CXCL4/PF4 (Peprotech) or PBS was injected intraperitoneally daily for 7 days and bone marrow analyzed on day 7. Romiplostim (Kyowa Kirin) or PBS as a control was administered intravenously at a dose of 100 mg/kg per day for 5 days.

Statistical analysis

All values given are mean ± standard deviation. Statistical analyses were performed by two-tailed unpaired t-tests and the levels of statistical significance are represented by asterisks. *P<0.05, **P<0.01, ***P<0.001. NS represents P>0.05.

Results

Hematopoietic stem and progenitor cells in bone marrow require thrombopoietin from liver

To investigate the role of THPO in HSPC we first sought the source of THPO in the bone marrow. We generated a Thpoflox mouse using CRISPR/Cas9 to simultaneously insert two loxP sites flanking exons 2 and 3 of the Thpo gene (Figure 1A). Loss of Thpo mRNA expression in the liver of ThpoΔ/Δ Alb-Cre mice was confirmed by quantitative polymerase chain reaction analysis (Figure 1B). In agreement with Decker et al.¹¹ we found that liver-specific knockout (KO) of THPO caused similar loss of platelets to that of Thpo-/-, while conditional KO models for megakaryo-cytes, HSPCs and bone marrow stromal cells (PF4, Vav and Osx respectively) did not show any significant difference (Figure 1D-H).¹¹ Similarly, the numbers of bone marrow MkP were significantly reduced in ThpoΔ/Δ********Alb-Cre mice and Thpo-/- mice, but not in other conditional KO models (Figure 1I-M). We also observed a similar pattern in the CD34-Flt3-LSK HSC population, with a reduction in cell numbers within the bone marrow of ThpoΔ/Δ Alb- Cre mice similar to that of Thpo-/- mice, but no reduction in bone marrow-specific conditional KO models (Figure 1NR). This would suggest that steady-state HSPC in the bone marrow mainly depend on THPO from the liver.

Thromobopoietin maintains megakaryopoietic progenitor numbers

We set out to find which other hematopoietic cells are influenced by THPO. Analysis of mature blood lineages revealed that B cells in the bone marrow (Figure 2A and B), T cells in thymus (Figure 2C and D) and white blood cells in peripheral blood (Figure 2E and F) were unaffected by loss of THPO in both Thpofl/flAlb-Cre and Thpo-/- models. No effect on peripheral blood red blood cells was seen in Thpofl/flAlb-Cre mice and although statistical analysis showed a significant reduction in Thpo-/- mice, this appears to be very low and may simply be an artefact of variance within the mouse strain (Figure 2G and H). To confirm that the loss of THPO did not affect mature lineages other than megakaryocytes, progenitor populations in bone marrow were analyzed. Common lymphoid progenitors in the bone marrow were unaffected by loss of THPO in both models (Figure 2I and J). Analysis of myeloid progenitors showed that only the previously defined Pre-GMP and Pre-MegE populations were affected by the loss of THPO (Figure 2K and L). Interestingly, these populations were previously shown to give rise to megakaryocytes in vitro while the other myeloid progenitors did not show megakaryopoietic potential,¹² suggesting that only the MkP, Pre-GMP and Pre-MegE cells that give rise to megakaryocytes are affected by the loss of THPO. Analysis of MPL expression among these progenitor populations suggests that, while MPL was detectable in all populations, most cell populations showed baseline levels. Only those populations with megakaryocytic potential showed levels of expression significantly above the baseline (Online Supplementary Figure S2).

Thrombopoietin is required to maintain CD150+ hematopoietic stem cell numbers

To further analyze the hematopoietic compartment the CD34-LSK HSC fraction was subdivided into three HSC populations based on CD41 and CD150 expression (Figure 3A). Previous studies have defined the CD34- CD41-CD150+ LT-HSC population as being enriched for long-term repopulating HSC, while the CD150- HSPC population contains short-term repopulating HSC and lymphoid-biased HSC.¹³^,¹⁴ The CD41+ HSPC population has been proposed to be enriched for common myeloid progenitors with the potential to repopulate the bone marrow of lethally irradiated mice.¹⁵ This method of defining populations was found to be optimal for distinguishing those LSK populations that express high levels of MPL from those with reduced MPL expression (Online Supplementary Figure S3) as well as for separating populations based on differentiation potential. Analysis revealed that the two CD150+ LSK populations, LT-HSC and CD41+ HSPC, showed significant loss of cell numbers with LT-HSC numbers reduced from 16.3±4.35 cells per 106 bone marrow mononuclear cells (BMMNC) to 1.8±0.89 in ThpoΔ/Δ Alb-Cre mice and from 19.9±8.21 to 1.4±0.94 in Thpo-/- mice (Figure 3B). CD41+ HSPC also decreased drastically from 9.4±3.92 to 0.7±0.52 in ThpoΔ/Δ********Alb-Cre mice and from 10.5±3.68 to 0.2±0.08 in Thpo-/- mice, a reduction of over 90% (Figure 3D). The CD150- HSPC population, however, showed no significant difference in either Thpofl/flAlb-Cre or Thpo-/- mice, suggesting that this population may have reduced dependence on THPO signaling (Figure 3C).

CD150- hematopoietic stem and progenitor cells have reduced MPL expression

As CD48 is expressed by lineage-committed cells we analyzed CD48 expression in the HSPC populations. While a high proportion of LT-HSC and CD41+ HSPC did not express CD48, the majority of CD150- HSPC were CD48+ (Figure 3E and F). To investigate why the two CD150+ populations were highly affected by loss of THPO signaling while CD150- HSPC were not, we looked at the surface expression of MPL of the three populations. The CD48-CD150- HSPC expressed MPL, but a significantly smaller proportion of these cells expressed MPL compared to the other two HSC populations (Figure 3G). Among the MPL+CD48-CD150- HSPC the MPL mean fluorescence intensity was lower than in MPL+CD48- LT-HSC, suggesting that MPL is being downregulated as LT-HSC differentiate into CD150- HSPC (Figure 3H). To confirm that MPL expression is reduced we sorted CD48-MPL+ LT-HSC as well as CD48- MPL+CD150- HSPC and CD48-MPL-CD150- HSPC and analyzed MPL mRNA expression (Figure 3I). We observed that even in the MPL+CD150- HSPC, MPL mRNA expression was significantly reduced compared to that in LT-HSC and was further reduced in MPLCD150- HSPC. This suggests that MPL is downregulated as LT-HSCs differentiate into CD150- HSPC and that CD150-HSPC may therefore be less dependent on THPO/MPL signaling. Analysis of MPL expression in the KO models showed that smaller proportions of LT-HSC and CD150- HSPC were expressing MPL in both Thpo-/- mice and ThpoΔ/Δ Alb-Cre mice, while MFI of the MPL+ cells was not affected (Online Supplementary Figure S4). This suggests specific loss of MPL+ cells in the absence of THPO. Despite this, MPL expression in CD41+ HSPC was unaffected by loss of THPO, suggesting that this population of HSPC is more homogeneous than the other two HSPC populations and that MPL expression is intrinsic to CD41+ HSPC.

CD150- hematopoietic stem and progenitor cells have reduced dependence on thrombopoietin and low megakaryopoietic potential

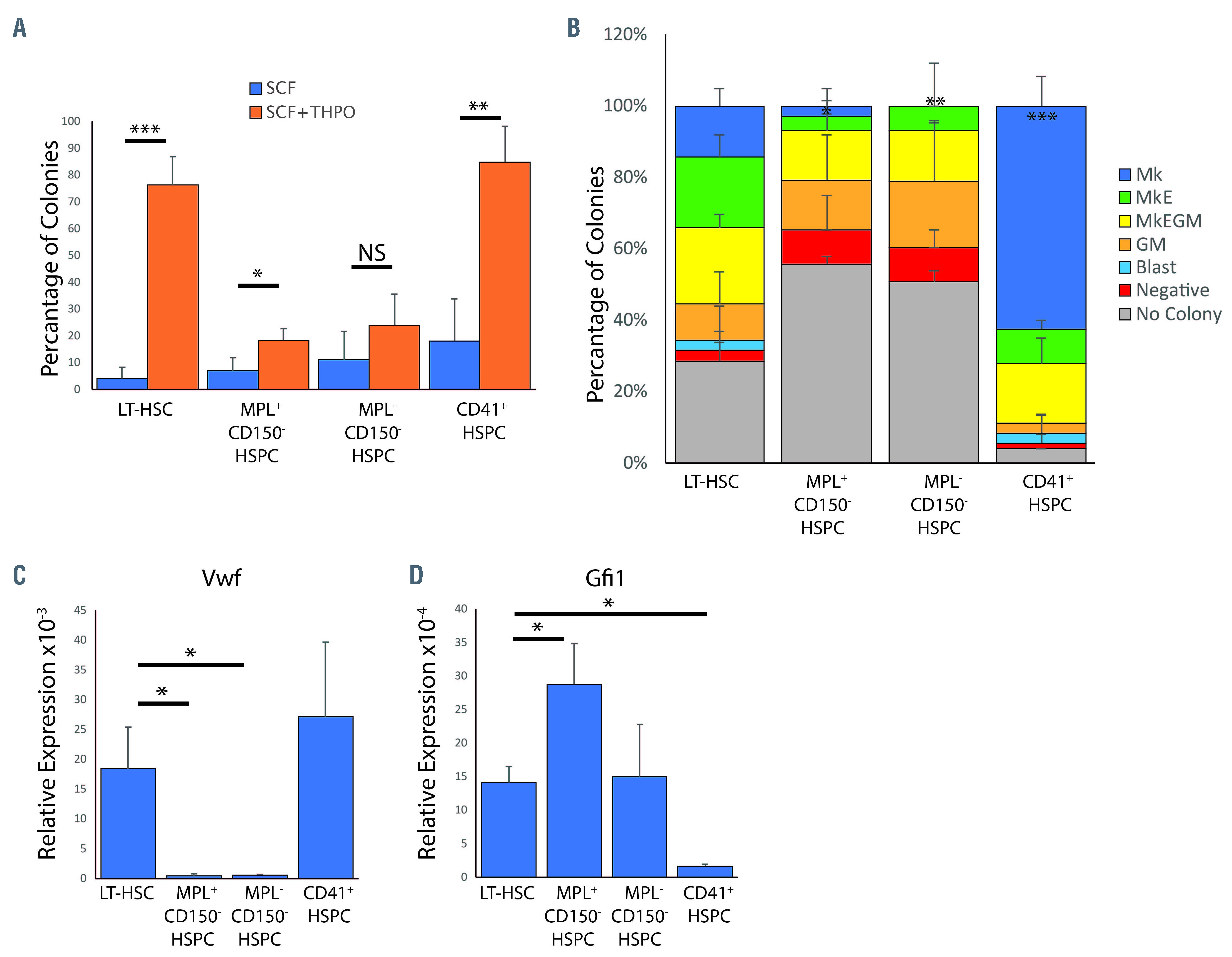

To examine whether the CD150- HSPC are dependent on THPO signaling for proliferation, single MPL+CD48- CD150- HSPC and MPL-CD48-CD150- HSPC were cultured with THPO and SCF for 7 days. Proliferation of CD48-MPL+ LT-HSC and CD41+ HSPC was also analyzed (Figure 4A). A high proportion of the LT-HSC and CD41+ HSPC gave rise to colonies at day 10 in the presence of THPO, but in the absence of THPO few colonies were observed. This indicates that the two CD150+ populations are dependent on THPO for proliferation in vitro. Both MPL+CD150- HSPC and MPL-CD150- HSPC produced few colonies in the presence of THPO and while the MPL+CD150- HSPC produced slightly fewer colonies in the absence of THPO, the colony number among MPLCD150- HSPC was not significantly different. This suggests that the CD150- HSPC population has reduced dependence on THPO for proliferation in vitro, with the MPL-CD150- HSPC population showing limited dependence on THPO/MPL signaling. Downregulation of MPL expression has previously been linked to lymphoid lineage commitment,¹⁶ suggesting that the CD150- HSPC would have reduced myeloid differentiation potential compared to the other LSK populations. To test this we utilized an adapted method of a previously described in vitro culture assay.¹⁷ The CD48- fractions of each population were cultured with SCF, THPO, EPO, IL3 and IL6 to assess their differentiation potentials (Figure 4B). At day 10 fewer than 50% of single cells from the two CD150- HSPC populations produced colonies, suggesting that the myeloid differentiation cytokines in the media were insufficient to support the proliferation of many of the cells in these populations. Both MPL+CD48-CD150- HSPC and MPL-CD48-CD150- HSPC populations produced significantly fewer Mk colonies than LT-HSC and CD41+ HSPC. Previous studies have shown that MPL is downregulated as HSC become lymphoid-biased. Taken together this suggests that megakaryopoietic potential is lost as the CD150- HSPC become lymphoid-primed. Over 50% of CD48-MPL+ LT-HSC gave rise to colonies containing megakaryocytes, while approximately 90% of CD48- MPL+CD41+ HSPC give rise to colonies with megakaryocytes. Subsequent mRNA expression analysis revealed that while LT-HSC and CD41+ HSPC both highly expressed the megakaryocyte marker, von Willebrand factor (Vwf), the two CD150- HSPC populations showed significantly lower expression, indicative of their reduction in megakaryopoietic potential (Figure 4C). Analysis of the expression of the neutrophil/lymphoid marker (Gfi1) revealed that the expression of Gfi1 was higher in the CD150- HSPC population than in LT-HSC, and its expression was reduced in CD41+ HSPC (Figure 4D). These data suggest that the CD150- HSPC may be lymphoid- primed at the expense of megakaryopoietic potential, while the CD41+ HSPC may become megakaryocyteprimed at the expense of lymphoid potential.

Loss of quiescence is not responsible for loss of cell number

Previous studies have shown that THPO plays a role in maintaining HSC quiescence.⁴ In order to investigate this, we first looked at the quiescence levels of the HSC populations in Thpo-/- mice (Figure 5A). The frequency of quiescence was reduced in all three HSPC populations. Interestingly, quiescence was reduced in CD150- HSPC despite them having limited dependence on THPO/MPL signaling. Previous studies have suggested that megakaryocytes in the bone marrow are responsible for maintaining HSCs in quiescence through the megakaryocyte-specific cytokine CXCL4/PF4.¹⁸ We looked at CXCL4/PF4 levels in the bone marrow of Thpo-/- mice and found that CXCL4/PF4 concentration is decreased on loss of THPO (Figure 5B). This suggests that the loss of megakaryocytes in KO mice reduces bone marrow CXCL4/PF4 concentration. To assess whether administration of recombinant CXCL4/PF4 could rescue quiescence in Thpo-/- mice, CXCL4/PF4 was injected daily for 7 days. Treated KO mice showed a significant increase in the proportion of cells in G0 in all three HSPC populations (Figure 5C-E). The quiescence levels in treated KO mice were not significantly different from those of wild-type untreated mice, suggesting that CXCL4/PF4 treatment rescues quiescence back to wild-type levels in all three HSPC populations. Taken together these data would suggest that the HSPC require CXCL4/PF4 from megakaryocytes for maintenance of quiescence. Although quiescence is rescued by CXCL4/PF4 treatment the number of LT-HSCs and CD150- HSPC remained unchanged (Figure 5F and G). This would suggest that the loss of cell numbers is independent of loss of quiescence. To confirm this we treated Thpo-/- mice with the MPL receptor agonist romiplostim for 5 days via tail vein injection. On day 5 platelet counts in Thpo-/- mice had recovered to the level in wild-type untreated mice, suggesting that thrombopoietic potential – and by extension megakaryopoietic potential – is not lost in the absence of THPO signaling and can return to wild-type levels upon rescue of MPL signaling (Online Supplementary Figure S5A).

Discussion

We have shown that loss of THPO signaling in bone marrow leads to a reduction of cell numbers throughout the hematopoietic compartment, primarily in cells that express high levels of MPL and show potential for megakaryopoietic differentiation. We show that the CD150- HSPC population has low MPL expression and reduced megakaryopoietic potential, findings that are consistent with previous reports that these cells are lymphoid-biased.¹⁴^,¹⁶ Previous reports have defined the CD150- HSPC and CD41+ HSPC populations as HSC, although strictly speaking these populations contain predominantly hematopoietic progenitor cells, rather than true HSCs. In spite of this, it is important to note that these populations are both capable of repopulating the bone marrow of lethally irradiated mice, though not long-term, indicating a capacity for self-renewal. Both CD41+ HSPC and CD150- HSPC populations also show high levels of quiescence similar to LT-HSC and express cell surface markers very similar to those of LT-HSC, suggesting a very close relationship between the three populations. Indeed, previous studies have suggested that CD41+ HSPC and CD150- HSPCs represent the earliest branch point in the hematopoietic hierarchy, with CD41+ HSPC being the earliest myeloid branch and CD150- HSPC being the earliest lymphoid branch.¹⁴ The data in this study support this view

Despite their low levels of MPL expression and limited dependence on THPO for cell proliferation both in vivo and in vitro, CD150- HSPC show reduced quiescence in the absence of THPO in the bone marrow. Previous studies showed that loss of megakaryocytes in bone marrow results in reduced HSC quiescence,¹⁹^,²⁰ while a subsequent study showed that this effect is due to loss of megakaryocyte- derived CXCL4/PF4.¹⁸ We show that in the case of THPO KO mouse models, the loss of quiescence in HSPC results from the loss of CXCL4/PF4 signaling due to reduced megakaryocyte number in the bone marrow and that this can be rescued by administration of exogenous CXCL4/PF4. Interestingly, CXCL4/PF4 administration in wild-type mice does not produce an increase in quiescence, suggesting that quiescence is not dependent on CXCL4/PF4 signaling alone. Previous studies have shown that CXCL12 from CXCL12-abundant reticular (CAR) cells in the bone marrow also plays a role in HSPC quiescence.²¹ Other studies have provided evidence of dimerization of CXC ligands, including CXCL12.²² One theory is that CXCL4/PF4 and CXCL12 form heterodimers that induce quiescence in HSC and that without an increase in CXCL12, increased CXCL4/PF4 cannot induce further quiescence. Further research may clarify whether CXCL4/PF4-dependent quiescence is co-dependent on other signaling pathways.

Our in vitro and in vivo data suggest that MPL expression in HSC correlates closely with megakaryocytic differentiation potential, indicating that THPO in the bone marrow is responsible for maintaining megakaryocytic differentiation potential in HSPC. A recent study from our own group has shown that increased THPO/MPL signaling leads to increased proliferation and megakaryocytic differentiation as well as mitochondrial activation in HSCs, suggesting that THPO drives cell division, rather than suppressing it.²³ There are reports that THPO induces self-renewal division in HSC²⁴ and it is possible that loss of this self-renewal division is responsible for the loss of cell numbers of megakaryopoietic HSPC within the bone marrow. Here we show that THPO is required for proliferation of HSPC with megakaryopoietic potential while previous studies showed that it is required for the maturation of megakaryocytes from MkP. Together, this would suggest that THPO plays a dual role in maintaining the megakaryocyte population and that both loss of megakaryocyte-producing HSPC and impairment of MkP maturation lead to the acute reduction of megakaryocytes seen in KO models. In humans, injection of THPO leads to an autoimmune response against the exogenous protein and even against endogenous THPO. For this reason, the artificial recombinant romiplostim and the small molecule eltrombopag have been approved as clinical MPL agonists. We showed that treatment of Thpo-KO mice with romiplostim can rescue platelet numbers, indicating that megakarypoietic potential is partially cell-intrinsic. Further investigation may reveal the mechanisms through which THPO/MPL signaling drives expansion of HSPC and its role in selfrenewal division of megakaryopoietic HSPC.

This study addresses the many conflicting reports of the role of THPO in HSPC quiescence/self-renewal division as well as its role in megakaryocyte differentiation. It identifies specific HSPC populations that depend on THPO as well as showing that THPO may not be directly responsible for the loss of quiescence observed in THPO KO models, resolving previous contradictory findings.

Footnotes

Received October 23, 2019
Accepted May 28, 2020

Correspondence

TOSHIO SUDA sudato@keio.jp

Disclosures

No conflicts of interest to disclose.

Contributions

AO’N conceived and designed the study, collected, analyzed and interpreted data and wrote the manuscript. DC wrote the manuscript; DT and A’QBBAM collected data. AI-N provided study materials and collected data. TS conceived and designed the study, organized financial support and gave final approval of the manuscript.

References

Choi JS, Mahadik BP, Harley BA. Engineering the hematopoietic stem cell niche: frontiers in biomaterial science. Biotechnol J. 2015; 10(10):1529-1545. https://doi.org/10.1002/biot.201400758 PubMed PubMed Central Google Scholar
Birbrair A, Frenette PS. Niche heterogeneity in the bone marrow. Ann N Y Acad Sci. 2016; 1370(1):82-96. https://doi.org/10.1111/nyas.13016 PubMed PubMed Central Google Scholar
de Graaf CA, Metcalf D. Thrombopoietin and hematopoietic stem cells. Cell Cycle. 2011; 10(10):1582-1589. https://doi.org/10.4161/cc.10.10.15619 PubMed PubMed Central Google Scholar
Qian H, Buza-Vidas N, Hyland CD. Critical role of thrombopoietin in maintaining adult quiescent hematopoietic stem cells. Cell Stem Cell. 2007; 1(6):671-684. https://doi.org/10.1016/j.stem.2007.10.008 PubMed Google Scholar
de Sauvage FJ, Carver-Moore K, Luoh SM. Physiological regulation of early and late stages of megakaryocytopoiesis by thrombopoietin. J Exp Med. 1996; 183(2):651-656. https://doi.org/10.1084/jem.183.2.651 PubMed PubMed Central Google Scholar
Woolthuis CM, Park CY. Hematopoietic stem/progenitor cell commitment to the megakaryocyte lineage. Blood. 2016; 127(10):1242-1248. https://doi.org/10.1182/blood-2015-07-607945 PubMed PubMed Central Google Scholar
Ema H, Takano H, Sudo K, Nakauchi H. In vitro self-renewal division of hematopoietic stem cells. J Exp Med. 2000; 192(9):1281-1288. https://doi.org/10.1084/jem.192.9.1281 PubMed PubMed Central Google Scholar
Nishikii H, Kanazawa Y, Umemoto T. Unipotent megakaryopoietic pathway bridging hematopoietic stem cells and mature megakaryocytes. Stem Cells. 2015; 33(7):2196-2207. https://doi.org/10.1002/stem.1985 PubMed PubMed Central Google Scholar
Besancenot R, Roos-Weil D, Tonetti C. JAK2 and MPL protein levels determine TPO-induced megakaryocyte proliferation vs differentiation. Blood. 2014; 124(13):2104-2115. https://doi.org/10.1182/blood-2014-03-559815 PubMed PubMed Central Google Scholar
Fleischman AG, Tyner JW. JAK2 V617F down-modulates MPL. Blood. 2012; 119(20):4579-4580. https://doi.org/10.1182/blood-2012-03-417261 PubMed Google Scholar
Decker M, Leslie J, Liu Q, Ding L. Hepatic thrombopoietin is required for bone marrow hematopoietic stem cell maintenance. Science. 2018; 360(6384):106-110. https://doi.org/10.1126/science.aap8861 PubMed PubMed Central Google Scholar
Pronk CJ, Rossi DJ, Mansson R. Elucidation of the phenotypic, functional, and molecular topography of a myeloerythroid progenitor cell hierarchy. Cell Stem Cell. 2007; 1(4):428-442. https://doi.org/10.1016/j.stem.2007.07.005 PubMed Google Scholar
Oguro H, Ding L, Morrison SJ. SLAM family markers resolve functionally distinct subpopulations of hematopoietic stem cells and multipotent progenitors. Cell Stem Cell. 2013; 13(1):102-116. https://doi.org/10.1016/j.stem.2013.05.014 PubMed PubMed Central Google Scholar
Ema H, Morita Y, Suda T. Heterogeneity and hierarchy of hematopoietic stem cells. Exp Hematol. 2014; 42(2):74-82. https://doi.org/10.1016/j.exphem.2013.11.004 PubMed Google Scholar
Yamamoto R, Morita Y, Ooehara J. Clonal analysis unveils self-renewing lineage- restricted progenitors generated directly from hematopoietic stem cells. Cell. 2013; 154(5):1112-1126. https://doi.org/10.1016/j.cell.2013.08.007 PubMed Google Scholar
Luc S, Anderson K, Kharazi S. Downregulation of Mpl marks the transition to lymphoid-primed multipotent progenitors with gradual loss of granulocyte-monocyte potential. Blood. 2008; 111(7):3424-3434. https://doi.org/10.1182/blood-2007-08-108324 PubMed Google Scholar
Khoramian Tusi B, Socolovsky M. Highthroughput single-cell fate potential assay of murine hematopoietic progenitors in vitro. Exp Hematol. 2018; 60:21-29. https://doi.org/10.1016/j.exphem.2018.01.005 PubMed PubMed Central Google Scholar
Bruns I, Lucas D, Pinho S. Megakaryocytes regulate hematopoietic stem cell quiescence through CXCL4 secretion. Nat Med. 2014; 20(11):1315-1320. https://doi.org/10.1038/nm.3707 PubMed PubMed Central Google Scholar
Nakamura-Ishizu A, Takubo K, Fujioka M, Suda T. Megakaryocytes are essential for HSC quiescence through the production of thrombopoietin. Biochem Biophys Res Commun. 2014; 454(2):353-357. https://doi.org/10.1016/j.bbrc.2014.10.095 PubMed Google Scholar
Zhao M, Perry JM, Marshall H. Megakaryocytes maintain homeostatic quiescence and promote post-injury regeneration of hematopoietic stem cells. Nat Med. 2014; 20(11):1321-1326. https://doi.org/10.1038/nm.3706 PubMed Google Scholar
Greenbaum A, Hsu YM, Day RB. CXCL12 in early mesenchymal progenitors is required for haematopoietic stem-cell maintenance. Nature. 2013; 495(7440):227-230. https://doi.org/10.1038/nature11926 PubMed PubMed Central Google Scholar
Veldkamp CT, Peterson FC, Pelzek AJ, Volkman BF. The monomer-dimer equilibrium of stromal cell-derived factor-1 (CXCL 12) is altered by pH, phosphate, sulfate, and heparin. Protein Sci. 2005; 14(4):1071-1081. https://doi.org/10.1110/ps.041219505 PubMed PubMed Central Google Scholar
Nakamura-Ishizu A, Matsumura T, Stumpf PS. Thrombopoietin metabolically primes hematopoietic stem cells to megakaryocyte-lineage differentiation. Cell Rep. 2018; 25(7):1772-1785. https://doi.org/10.1016/j.celrep.2018.10.059 PubMed Google Scholar
Kovtonyuk LV, Manz MG, Takizawa H. Enhanced thrombopoietin but not G-CSF receptor stimulation induces self-renewing hematopoietic stem cell divisions in vivo. Blood. 2016; 127(25):3175-3179. https://doi.org/10.1182/blood-2015-09-669929 PubMed Google Scholar
