Loss of endothelial miR-126 drives age-related decline in hematopoiesis

Abstract

Aging profoundly alters the bone marrow (BM) microenvironment and impairs hematopoietic stem cell (HSC) function. Here, we identify decrease of miR-126 derived from arteriolar endothelial cells (EC) as a key mechanism of impaired HSC self-renewal capacity during aging. In young BM, arteriolar EC express high levels of miR-126, which is transferred to HSC and supports these cells’ homeostasis and functional integrity. Using young and aged wild-type, endothelial-specific miR-126 knockout (EC-miR-126 KO), EC-Spred1 knockout (a functional model of EC-miR-126 upregulation), and EC/Sca-1 dual fluorescent reporter mice, we show that age-related increase in inflammatory cytokines (such as TNFα) reduces EC miR-126 expression and in turn drives loss of miR-126high CD31+Sca-1high EC-lined arterioles in the aging BM niche. Loss of arterioles in turn decreases the EC miR-126 supply to HSC, leading to expansion of HSC with limited self-renewal capacity. Remarkably, administration of a synthetic miR-126 mimic oligonucleotide restores EC-HSC communication and rescues aging-related HSC dysfunction. Our findings uncover a novel, non-cell-autonomous mechanism of HSC aging and highlight EC-derived miR-126 as a promising therapeutic target to rejuvenate hematopoiesis.

Introduction

Adult hematopoiesis is sustained by hematopoietic stem cells (HSC) residing in the bone marrow (BM). These primitive cells possess the capacity for self-renewal, expansion, and differentiation.^1,2 Although HSC appear morphologically and immunophenotypically similar, there is growing evidence to indicate that they are functionally heterogeneous, comprising distinct subsets with lineage-biased transcriptomic profiles.^1,3-5 These subsets eventually give rise to lineage-committed progenitor cells, which further differentiate into mature blood and immune cells.^1,3-5

The aging hematopoietic system presents with increased myelopoiesis, impaired adaptive immunity, and a functional decline of the HSC, despite their increased frequency as compared with young counterparts.^1,4-9 The HSC functional decline is characterized by reduced regenerative potential, impaired homing ability, loss of cell polarity, and a shift toward myeloid-biased differentiation at the expense of lymphopoiesis.^6,7,10 The mechanisms underlying these age-related changes are not yet fully understood but likely involve several mechanisms including DNA damage,^11,12 mitochondrial dysfunction,^13,14 inflammation,^15,16 and dysregulation of replication stress responses,^17,18 DNA repair pathways,^19,20 and metabolic processes,^21,22 among others.¹⁰

Hematopoietic stem cells reside within a specialized BM microenvironment known as the “HSC niche”, which is composed of various stromal cell types including endothelial cells (EC), mesenchymal stromal cells (MSC), osteoblasts, and extracellular matrix components; altogether the niche regulates HSC function and homeostasis.^23-25 Functional deterioration of HSC during aging may arise from alterations of intrinsic cellular processes,⁶ including a metabolic shift from glycolysis in young HSC to oxidative metabolism in aged HSC,¹⁰ as well as from changes extrinsic to HSC and characterizing other components of the BM niche.^23,24 Altogether, these changes can lead to a decline in HSC function, including reduced self-renewal, impaired differentiation, and increased susceptibility to malignant transformation.^23,24 Notably, aged HSC transplanted into young recipients exhibit reduced myeloid output compared to those transplanted into aged recipients, implicating the aged BM microenvironment in the skewing of hematopoiesis toward the myeloid lineage.²⁶

The BM niche is highly vascularized, and HSC are primarily localized in perivascular regions.²⁷ Different classifications of BM vessels have been reported based on the staining of distinct markers. These include: CD31⁺Sca-1^highendomucin (Emcn)^– arterioles, CD31⁺Sca-1^lowEmcn^low sinusoids, and CD31⁺Emcn^high type H vessels, a type of capillary found in the metaphysis and endosteum of long bones and connecting arterioles to sinusoids.^27-31 Prior studies have highlighted a critical interplay between BM vasculature and hematopoiesis, with arterioles playing a protective and supportive role for HSC.^27,31 Ex vivo co-culture of aged EC with young HSC, as well as in vivo infusion of aged EC in mice following myelosuppression, suggested that aged EC impaired the repopulating activity of young HSC and contributed to myeloid bias of aged HSC; conversely, infusion of young EC restored the balanced repopulating capacity of aged HSC,³² indicating an active interplay between the vascular component of the BM niche and HSC during aging. However, the molecular mechanisms of this interaction and the resulting phenotypic changes are still not completely understood.

MicroRNA (miRNA) are short non-coding RNA that regulate gene expression post-transcriptionally. MiRNA reportedly play a role in regulating various hallmarks of aging, such as DNA damage response, cellular senescence, and mitochondrial dysfunction.³³ Genome-wide miRNA profiling of blood samples from long-lived individuals (mean age 96.4 years) and younger controls (mean age 45.9 years) showed a decrease of miR-126 levels with age.³⁴ miR-126 reportedly regulates glucose and lipid metabolism in cancer and adipose cells via inhibiting IRS1/Akt axis.^35-37 Of note, while miR-126 is highly expressed in arteriolar CD31⁺Sca-1^high EC and acts as a master regulator of physiological angiogenesis,^38-40 it also plays a pivotal role in regulating HSC self-renewal.^40-44 We previously reported that arteriolar EC supply miR-126 to the BM niche and that disruption of miR-126 biogenesis leads to a reduction in CD31⁺Sca-1^high EC-lined arterioles, accompanied by a subsequent decline in EC miR-126 supply to normal or clonal HSC.^43,45 Understanding how the interplay between HSC and the vascular component of the BM niche is disrupted during aging is crucial for developing strategies to rejuvenate the HSC function in older individuals.

In this study, we identified changes in EC miR-126 production as a key factor in inducing age-related HSC dysfunction. We showed that aging is associated with increased levels of pro-inflammatory cytokines such as TNFα, which leads to downregulation of EC miR-126, loss of arterioles, and in turn decreased EC miR-126 supply to HSC. Consequently, HSC expand, but at the expense of their self-renewal capacity. Thus, supplementing synthetic miR-126 mimic to the aging BM niche rescued the age-related hematopoietic changes.

Methods

Mouse strains

Unless otherwise indicated, 2-3-months old and 18-24-months old C57Bl/6J (B6, CD45.2) mice were respectively categorized as young and aged mice. Tie2-CreER/ TdTomato/Tg(Ly6a-GFP) double fluorescent reporter mice⁴⁵ were used to visualize CD31⁺Sca 1^high (tdTomato⁺GFP^high) and CD31⁺Sca-1^low (tdTomato⁺GFP^low) EC-lined vessels. Mir126^floxf/f fTie2-cre+ (i.e., EC-miR-126 knock-out [KO]) and Spred1^f/f Tie2-cre+ (EC-Spred1 KO, representing a functional model of EC-miR-126 overexpression [OE]) mice^45,46 were used to obtain miR-126 KO or OE in EC. To obtain conditional EC-miR-126 KO reporter mice, we also bred Tie2-CreER/ TdTomato reporter mice with Mir126^f/f mice and obtained inducible EC-miR-126 KO reporter mice (i.e., Mir126^f/f/Tie2-CreER/TdTomato, miR-126 KO in EC upon tamoxifen administration). Mouse care and experimental procedures were performed in accordance with federal guidelines and protocols. Procedures were approved by the Institutional Animal Care and Use Committee at the City of Hope under protocol IACUC 15005.

Immunofluorescent staining and 3D confocal imaging of long bones

Long bones (tibias) from the mice were processed, sectioned, and imaged, as described previously.^45-47

Intravital imaging

Intravital confocal microscopy was used to image the calvarium BM vasculature to study the vascular permeability, as previously described.^45,48

Flow cytometry analysis

Mouse cells were obtained from peripheral blood (PB) or BM (from both tibias and femurs). Before staining for HSC, c-Kit⁺ cells were selected using anti-mouse CD117 microbeads or Lineage^- (Lin^-) cells were selected using mouse Lineage cell depletion kit (both from Miltenyi Biotec, San Diego, CA, USA). EC were isolated from long bones (tibias and femurs) of the mice, as previously described.⁴⁵ Cells were stained with anti-mouse antibodies (Online Supplementary Table S1). HSC were identified as Lin^-Sca-1⁺c-Kit⁺ (LSK) Fit3^-CD150⁺CD48^-. EC were identified as CD45^-Ter119^-CD31⁺. All analyses were performed on a Fortessa x20 flow cytometer (BD Biosciences) and sorting was performed on Aria Fusion instrument (BD Biosciences); data were analyzed by BD FACSDiva or FlowJo software.

RNA sequencing

Total RNA was extracted from BM HSC (Fit3^-CD150⁺CD48^-LSK) sorted from young (2-3-months old) and aged (18-24-months old) mice using the miRNeasy micro Kit (Qiagen, Valencia, CA, USA). Sequencing was performed on an Illumina NovaSeq 6000 platform using the S4 Reagent Kit v1.5 in paired-end mode (2x101 cycles). The HTSeq software (v.0.11.1)⁴⁹ was applied to generate the count matrix, with default parameters. Differentially expressed gene (DEG) analysis was conducted by adjusting read counts to normalized expression values using TMM normalization method in edgeR.^50,51 Genes with an FDR-adjusted P value <0.05 and with a fold change (FC) >2 or <0.5 were considered as significantly up- and down-regulated genes, respectively. Pathway analysis was conducted using Gene Set Enrichment Analysis (GSEA) algorithm implemented in clusterProfiler (v.4.14.3) package in R,^52-55 where a ranked list of whole genes according to their log2 fold change and P values are provided.

Statistical analysis

All statistical analyses were performed using Prism version 10.0 software (GraphPad). Sample sizes chosen are indicated in the individual figure legends. All in vitro experiments were performed 2-3 times using biologically independent samples; in vivo experiments were performed using 6-15 mice in each group. Results were reported as mean ± standard error of the mean or standard deviation. Comparisons between groups were performed by a two-tailed, unpaired Student t test.

Further details of the methods used are available in the Online Supplementary Appendix.

Results

Self-renewal and repopulating capacities of aged hematopoietic stem cells

To prioritize the relative contributions of intrinsic versus extrinsic factors that impact on self-renewal and repopulating capacities of aging HSC, we transplanted BM HSC (Fit3^-CD150⁺CD48^- LSK) from young (2-3-months old) and aged (18-24-months old) CD45.2 C57BL/6j wild-type (wt) mice into age-matched young (N=10 recipient mice for young HSC donor; N=9 recipient mice for aged HSC donor) and aged (N=7 recipient mice for young HSC donor; N=6 recipient mice for aged HSC donor) CD45.1 C57BL/6j wt recipient mice (200 cells/mouse) (Figure 1A). Transplanted HSC from aged mice had consistently exhibited reduced self-renewal and reconstitution capacities compared with transplanted HSC from young mice, regardless of the recipient age (aged vs. young HSC engraftment at 24 weeks post transplant: 5.5% vs. 41.3%, P<0.0001 in young recipients; 1.167% vs. 25.93%, P=0.001 in aged recipients) (Figure 1B, top two panels). We also observed that the donor HSC long-term engraftment rates were consistently lower in the aged recipients compared with the young recipients, regardless of donor age (engraftment at 24 weeks post transplant in aged vs. young recipients: 25.9% vs. 45.2% for young donor HSC, P=0.0034; 1.17% vs. 5.53% for aged donor HSC, P=0.01) (Figure 1B, bottom two panels).

We observed an approximately 10-fold enrichment of BM HSC in aged mice compared with young mice (Figure 1C), and a reduced regenerating capacity of aged HSC compared to the younger counterparts, indicating that the diminished function is partly counterbalanced by increased numbers to maintain HSC function. To factor in the approximately 10-fold enrichment of BM HSC found in aged versus young mice (Figure 1C), and reflect the overall regenerating capacity of the increased HSC in aged versus young mice, we transplanted both young and aged recipients with young or aged HSC collected from the same numbers of young or aged mice. Briefly, we pooled HSC (Fit3^-CD150⁺CD48^- LSK) from 5 young (2-3-months old) or 5 aged (18-24-months old) CD45.2 C57BL/6j wt mice, yielding a total of 6,021 young and 61,157 aged HSC, respectively, and transplanted them into 15 young and 15 aged CD45.1 C57BL/6j wt recipient mice (approximately 200 young HSC or 2,000 aged HSC per mouse; N=15 mice per group) (Online Supplementary Figure S1A) that were monitored for engraftment rates every four weeks. We observed that regardless of recipient age, aged HSC (2,000/mouse) showed the highest engraftment rates at four weeks post transplant followed by a progressive decline in hematopoiesis over time, while young HSC (200/ mouse) showed the lowest engraftment rates at four weeks followed by a robust increase over time (Online Supplementary Figure S1B, top two panels). Thus, regardless of the age and number of the received HSC, long-term PB and BM engraftment rates were always lower in the aged recipients than in the young recipients (PB engraftment at 16 weeks: 19.7% vs. 38.5% for young HSC, P=0.0007; 14.8% vs. 26.0% for aged HSC, P=0.002) (Online Supplementary Figure S1B, bottom two panels, and Online Supplementary Figure S1C). These results highlight that hematopoiesis and regenerative capacity do not depend only on the age of HSC but also on that of the BM microenvironment.

Vascular remodeling in the aged bone marrow niche

The vascular compartment of the BM niche has been shown to affect HSC functionality.²⁷ To determine age-related changes in the vascular compartment of the BM niche, we performed immunofluorescence staining and 3D confocal imaging of vessels in tibias from 2-, 10- and 20-months old wt mice, representing young, middle-aged, and aged groups. Sca-1^high EC line arteries and arterioles while Sca1^low EC line sinusoids;⁴⁵ type H vessels are characterized by high expression of CD31 and Emcn, and are located in the metaphysis and endosteum of long bones.⁵⁶ Here, we utilized a simplified CD31⁺Sca-1^high, CD31⁺Sca-1^low and CD31⁺Emcn^high staining combined with morphology examination and anatomical location to identify BM arterioles, sinusoids and type H vessels, respectively (Online Supplementary Figure S2A), as reported by us and others.^45,46,56 Consistent with the previous finding that type H vessels are reduced in aged mice,⁵⁶ we also observed a depletion of CD31⁺Emcn^high type H vessels in metaphysis of the long bone from aged versus young mice (Online Supplementary Figure S2B), which was confirmed by flow cytometry (Online Supplementary Figure S2C). Of note, flow cytometry analysis of metaphysis region of femurs showed that almost all Emcn^high EC are Sca-1^high in both young and aged mice (Online Supplementary Figure S2C, left). Notably, we detected a significant decrease in CD31⁺Sca-1^high EC-lined arterioles in metaphysis and diaphysis of long bones in the aged mice compared with the young mice (Figure 2A, B and Online Supplementary Figure S3). These results were corroborated by flow cytometry analysis showing an overall decrease in total BM EC (CD45-Ter119-CD31⁺) in the aged mice, with a significantly lower frequency of CD31⁺Sca-1^high EC that line mainly arterioles, and a higher frequency of CD31⁺Sca-1^low EC that line sinusoids, compared with the young mice (Figure 2C-E). Similar results were also obtained in a genetically modified model carrying tamoxifen-induced Tie2-CreER/ TdTomato/Tg(Ly6a-GFP) double-fluorescent reporter that allowed us to track EC (EC-TdTomato⁺, Sca-1-GFP^high).⁴⁵ We observed reduced BM CD31-tdTomato⁺Sca-1-GFP^high EC-lined arterioles in the aged double reporter mice compared with the young double reporter mice (Figure 3A, B). Consistent with these results, flow cytometry analysis showed reduced Sca-1^high EC (i.e., tdTomato⁺ GFP^high) and increased Sca-1^low EC (i.e., tdTomato⁺ GFP^low) in the aged versus young reporter mice (Figure 3C-E).

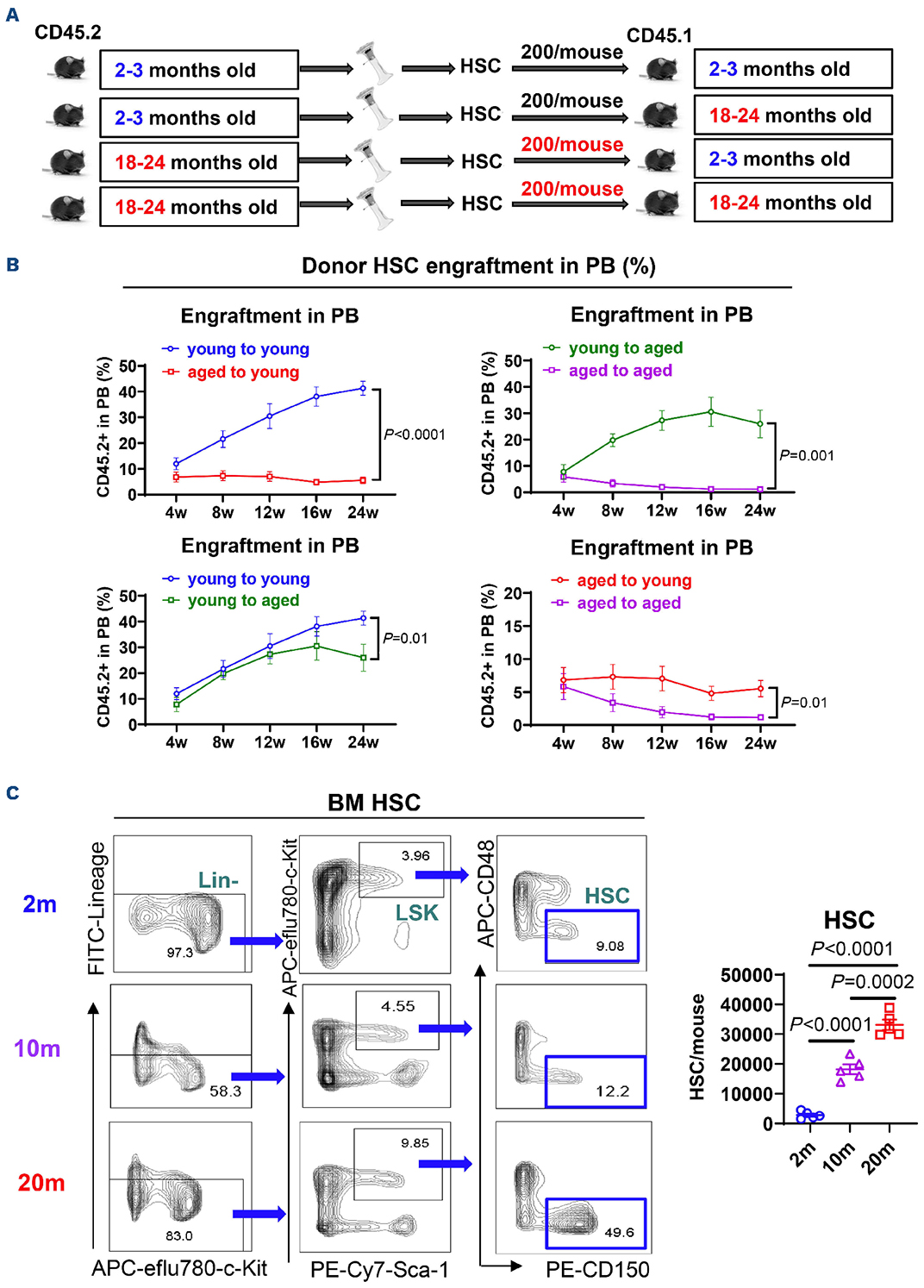

Figure 1.Aged bone marrow niche impacts long-term regenerating capacity of hematopoietic stem cells. (A and B) Schematic experimental design and results. Lineage^-Sca-1⁺c-Kit⁺FLT3^-CD150⁺CD48^- hematopoietic stem cells (HSC, 200/mouse) from young (2-3 months old) and aged (18-24 months old) C57BL/6j mice (B6, CD45.2) were sorted and transplanted into age-matched young (young HSC: N=10; aged HSC: N=9) and aged (young HSC: N=7; aged HSC: N=6) recipients (CD45.1), respectively (A). Then donor HSC engraftment rates in peripheral blood (PB) of aged recipients versus young recipients were monitored every four weeks (w) by flow cytometry analysis (B). (C) Representative plots (left) and combined results (right) showing Lineage^-Sca-1⁺c-Kit⁺FLT3^-CD150⁺CD48^- HSC in the bone marrow (BM) of 2, 10 and 20 months (m) old mice analyzed by flow cytometry. Statistical analysis was calculated by two-tailed, unpaired Student t test. Results shown represent mean ± standard error of mean.

In the BM niche, CD31⁺Sca-1^high EC reportedly line impermeable vessels such as arterioles, and CD31⁺Sca-1^low EC border permeable vessels such as sinusoids.^45,57 Thus, we imaged the mouse calvaria with intravital confocal microscopy. Prior to imaging, mice were administered with FITC-dextran (150 kDa, green) intravenously to label the vasculature.⁴⁵ Consistent with a decrease in CD31⁺Sca-1^high arterioles in the aged mice (Figure 2A, B), we also observed increased vessel permeability, as evidenced by the leakage of FITC-dextran as diffuse staining in the calvarium by intravital confocal microscopy (FITC-150 kDa dextran, green) compared with the young mice (Online Supplementary Figure S4A, B).

Taken together, these findings are consistent with age-associated loss of arterioles and compensatory enrichment of fenestrated sinusoids in the bone marrow.

“Inflammaging” induces bone marrow endothelial cell miR-126 downregulation

Chronic inflammation in the aging BM niche, also known as “inflammaging”,^16,58 impacts HSC function.^59-61 We previously reported that in pathologic conditions (i.e., acute myeloid leukemia), blast-derived cytokines (i.e., TNFα) suppresses miR-126 production, leading to a loss of arterioles.⁴⁵ We, therefore, hypothesized that inflammaging may also lead to downregulation of EC miR-126, loss of arterioles, and reduced EC-derived miR-126 supply to HSC. To test this hypothesis, we first showed that levels of pro-inflammatory cytokines are generally higher in aged (18-24-months old C57BL/6j, N=14) mice compared with gender-matched young (2-3-months old, N=10) mice (Online Supplementary Figure S5). Next, we treated mouse EC with a panel of cytokines (including TNFa, IFNy, IL-1a, IL-4, IL-10, IL-13, IL-16, M-CSF, MCP-5, MIP-1a, MIP-2, RANTES, CXCL12, TNFSF12, TNFSF13B, TNFSF6 and angiopoietin-2) at two concentrations, one as measured in young BM plasma and one as in aged BM plasma by Luminex assay, for eight hours, and observed the lowest levels of miR-126 in EC treated with TNFa at the concentration measured in aged BM plasma (Figure 4A). In the aged mice, we also observed a BM expansion of the myeloid cells expressing significantly higher levels of TNFa (Online Supplementary Figure S6A, B). This was associated with a significant reduction in primary (pri), precursor (pre), and mature miR-126 levels in BM EC (Figure 4B) and loss of BM CD31⁺Sca-1^high EC and arterioles (Figure 2A-E) in the aged mice compared with the young mice. We confirmed these results in the aged double reporter mice (i.e., tamoxifen-induced Tie2-CreER/TdTomato/Tg[Ly6a-GFP]) that have a significant reduction in EC-miR-126 expression (Online Supplementary Figure S6C) and loss of BM CD31-tdTomato⁺Sca-1-GFP^high EC-lined arterioles (Figure 3A, B) compared with the young reporter mice. Treatment of BM EC from young mice with murine recombinant (mr) TNFa (1 ng/mL, 8 hours) resulted in reduction in EC pri-, pre- and mature miR-126 levels and Sca-1^high subset (Online Supplementary Figure S6D); these changes were largely rescued by co-treatment with TNFaR1/R2 blocking antibodies (1 μg/mL) (Online Supplementary Figure S6E). Importantly, treatment of young wt mice with mrTNFa (interperitoneal [i.p.] 1 μg/ day, 3 weeks) (Figure 4C) recapitulated the findings we observed in the aged mice, i.e., decreased BM EC pri-, pre-, and mature miR-126 levels (Figure 4D) and a reduction of arteriole-lining CD31⁺Sca-1^high EC (Figure 4E, middle panel). Notably, co-treatment with a synthetic miR-126 mimic oligonucleotide (M-miR-126)^43,45 rescued TNFa-induced loss of CD31⁺Sca-1^high EC (Figure 4E, right panel). To determine how TNFa induces endothelial miR-126 downregulation, we measured levels of transcription factors Ets1, Ets2 and Gata2 that are verified regulators of miR-126 expression.^62,63 We observed significant reduction of Gata2, and not of Ets1 and Ets2, in EC treated with mrTNFa (Online Supplementary Figure S7A). We also demonstrated reduced Gata2 levels in aged BM EC versus young BM EC (Online Supplementary Figure S7B) and that GATA2 knockdown (KD) by siRNA in young BM EC decreased miR-126 levels (Online Supplementary Figure S7C). Using chromatin immunoprecipitation assay, we showed a reduced GATA2 enrichment on the EGFL7/miR-126 promoter⁶⁴ in EC exposed to TNFα (1 ng/ mL) (Online Supplementary Figure S7D). Collectively, these results support the hypothesis that loss of CD31⁺Sca-1^high EC and associated vessels (i.e., arterioles) during aging is at least partly mediated by EC miR-126 downregulation via TNFα-induced decrease of GATA2 transcriptional activity. The vascular changes seen in the aged BM niche were strikingly similar to what we observed in the young Mir126^flox(f)/fTie2-cre⁺ mice (a model of EC-miR-126 KO) (Online Supplementary Figure S8A), which also had fewer CD31⁺S-ca-1^high EC and arterioles than young wt controls (Mir126^{f/ f}Tie2-cre^- mice) (Figure 5A-D); these changes were even more pronounced in the aged Mir126^f/fTie2-cre⁺ mice (Online Supplementary Figure S8A-E). To this end, we also observed increased vessel permeability, as evidenced by the leakage of FITC-dextran in the calvarium by intravital confocal microscopy, in the young EC-miR-126 KO reporter mice (i.e., tamoxifen-induced Mir126^f/f/Tie2-CreER+/TdTomato, CD31-TdTomato⁺ and EC-miR-126 KO), compared with the young wt reporter mice (i.e., tamoxifen-induced Tie2-CreER+/TdTomato, CD31-TdTomato+; FITC-150 kDa dextran, green) (Online Supplementary Figure S9A-C), supporting the vascular changes. Conversely, we did not observe these changes in EC-miR-126 OE mice. We previously reported that Spred1, a member of the Sprouty family of proteins and an inhibitor of RAS small GTPases, is both an miR-126 target, as confirmed here by repressed activity of Spred1 3’ UTR luciferase reporter in mouse EC by M-miR-126 (Online - from 20-months old Spred1^f/fTie2-cre^- (wt) or Spred1^f/fTie2-cre⁺ (EC-miR-126 overexpression [OE]) mice. (G and H) Combined results (G) and representative plots (H) of Sca-1^high and Sca-1^low EC subfractions in BM CD45^-Ter119^-CD31⁺ EC from 20-months old Spred1^{f/ f}Tie2-cre^- or Spred1^f/fTie2-cre⁺ mice (N=4 mice per group), analyzed by flow cytometry. (A and E) One of the three independent experiments with similar results is shown; yellow arrows indicate CD31⁺Sca-1^high EC-lined arteriolar vessels. Comparison between groups was performed by two-tailed, unpaired t test. Results shown represent mean ± standard error of mean.

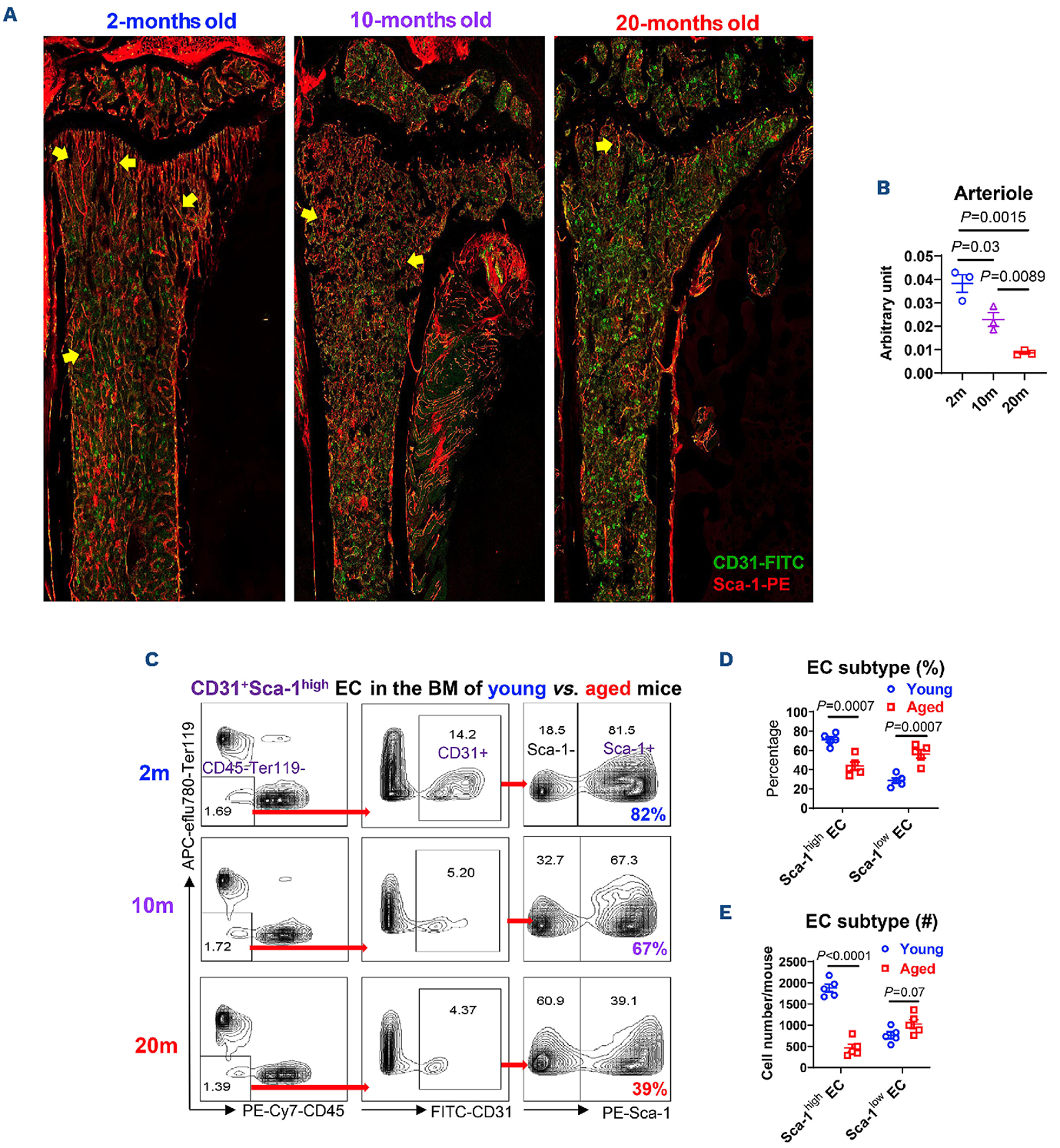

Figure 2.Vascular remodeling of the aged bone marrow niche. (A and B) CD31 (FITC) and Sca-1 (PE) immunofluorescence staining (A) and quantification (B) of CD31⁺Sca-1^high endothelial cell (EC)-lined arterioles in tibias from 2-, 10-, and 20-months old mice, assessed by immunofluorescent staining and 3D confocal imaging. (A) One of the three independent experiments with similar results is shown; yellow arrows indicate CD31⁺Sca-1^high EC-lined arteriolar vessels. (C-E) Representative plots (C) and combined results showing frequencies (D) and absolute counts (E) of Sca-1^high and Sca-1^low EC subfractions in bone marrow (BM) CD45^-Ter119^-CD31⁺ EC from 2-, 10-, and 20-months (m) old mice, analyzed by flow cytometry. Statistical analysis was calculated by two-tailed, unpaired Student t test. Results shown represent mean ± standard error of mean.

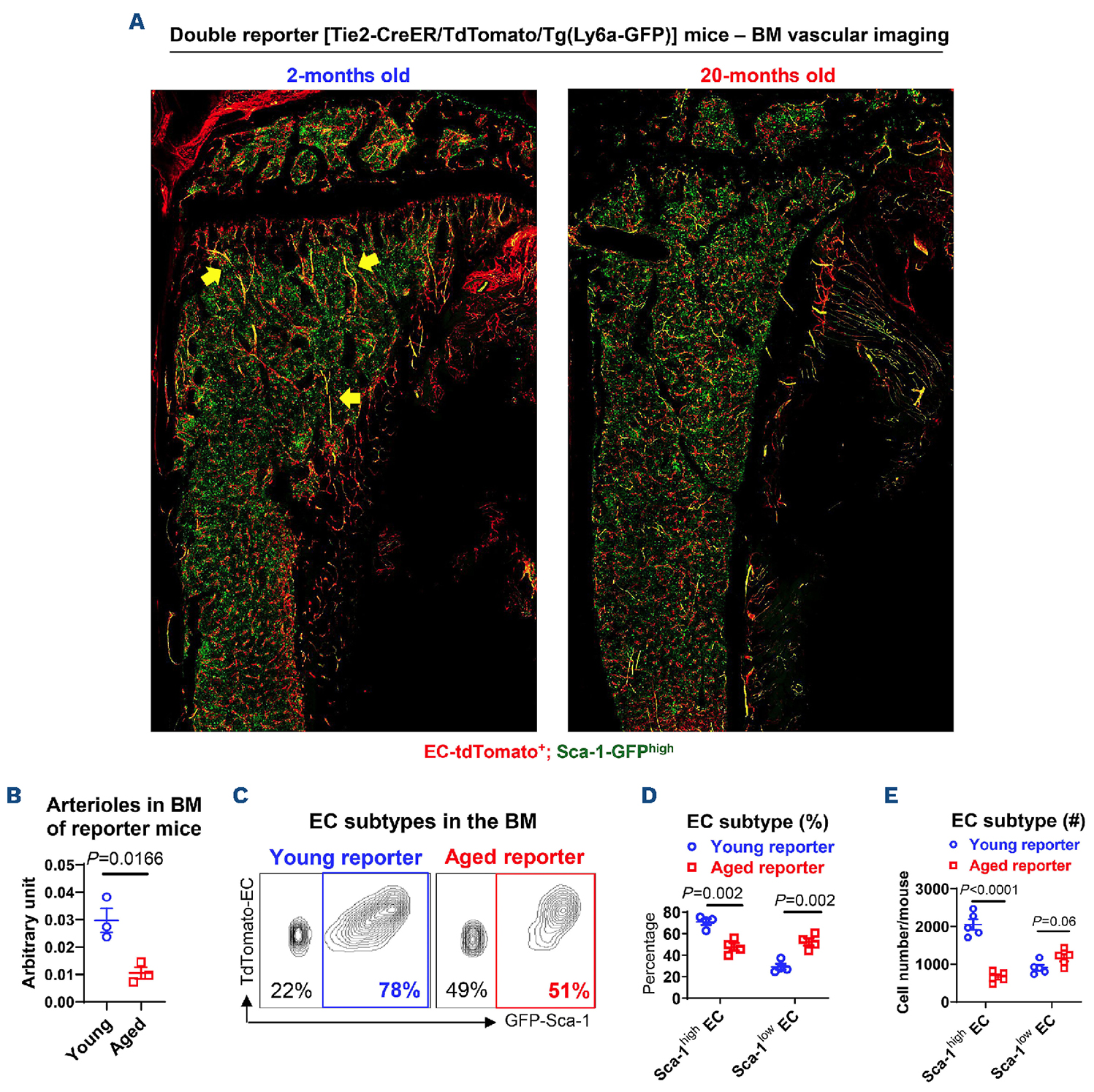

Figure 3.Vascular remodeling of the aged bone marrow niche. (A and B) Representative imaging (A) and quantification (B) of CD31-tdTomato⁺Sca-1-GFP^high endothelial cell (EC)-lined arteriolar vessels (yellow arrows) in tibias from 2 or 20 month old double fluorescent reporter mice (Tie2-CreER/TdTomato/Tg[Ly6a-GFP]), following tamoxifen-induced Cre activation, assessed by 3D confocal imaging. (A) One of the three independent experiments with similar results is shown; yellow arrows indicate CD31⁺Sca-1^high EC-lined arteriolar vessels. (C-E) Representative plots (C) and combined results showing frequencies (D) and absolute counts (E) of Sca-1^high and Sca-1^low EC subfractions in bone marrow (BM) CD45-Ter119-CD31⁺ EC from 2 and 20 month old double reporter mice, analyzed by flow cytometry. Statistical analysis was calculated by two-tailed, unpaired Student t test. Results shown represent mean ± standard error of mean.

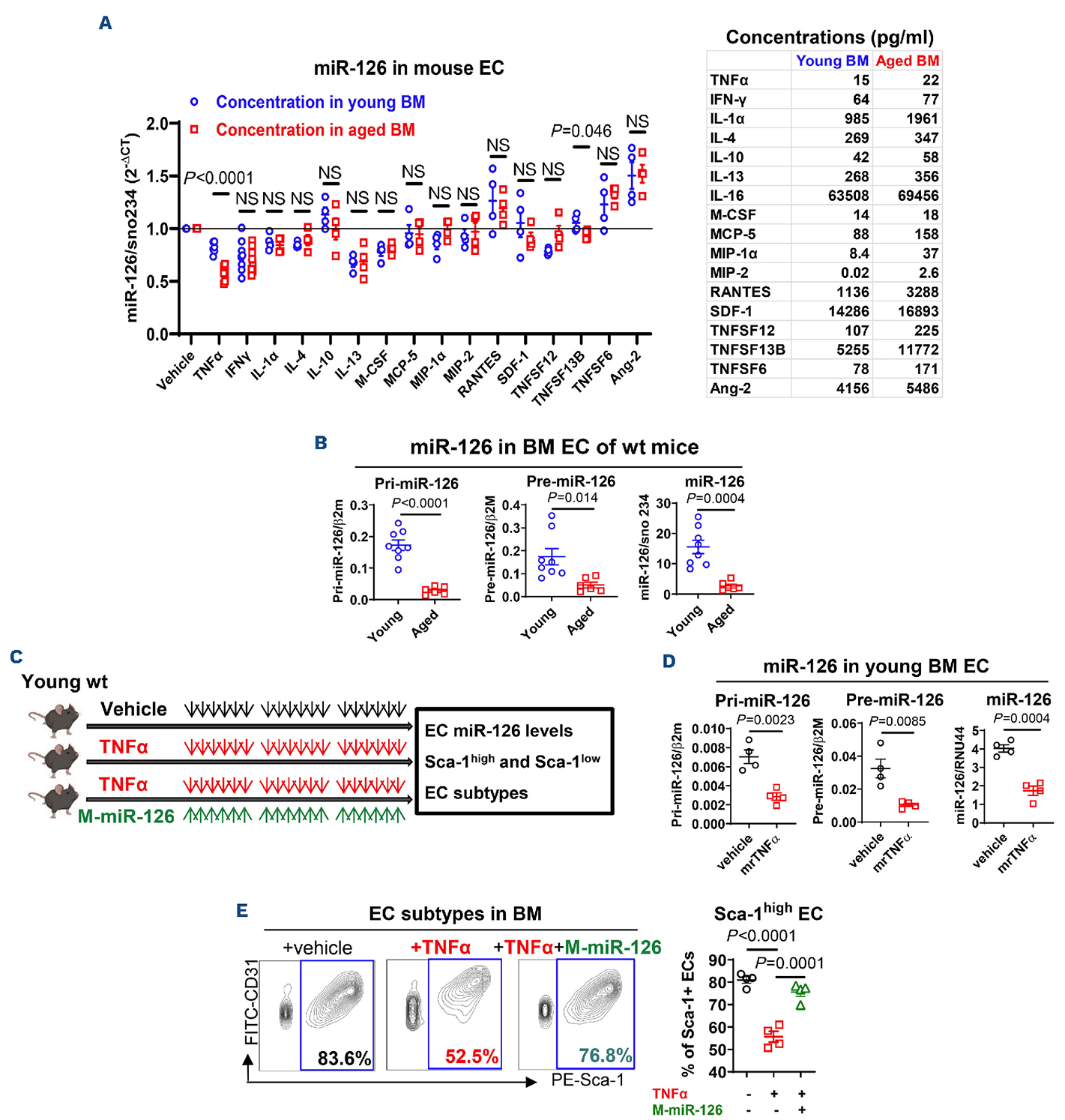

Figure 4.Increased TNFα in aged mice induced endothelial cell miR-126 downregulation. (A) miR-126 levels in mouse endothelial cells (EC) treated with vehicle PBS or individual cytokine for eight hours (left), at the concentrations observed in the bone marrow (BM) of young or aged mice as measured by Luminex assay (right panel), analyzed by quantitative reverse-transcription polymerase chain reaction (Q-RT-PCR) (N=8 for TNFα and TNFSF13B; N=4 for the remaining cytokines). (B) Primary (pri), precursor (pre), and mature miR-126 levels in BM EC from young (2-3-months old, N=8 mice) and aged (18-24-months old, N=6 mice) wildtype (wt) mice, analyzed by Q-RT-PCR. (C-E) Schematic experimental design and results. Young wt mice (2-3-months old, N=4 per group) were treated with vehicle PBS (black arrows), or murine recombinant (mr) TNFα (intraperitoneal [i.p.] 1 µg/day; red arrows) or mrTNFα plus M-miR-126 (intravenous [i.v.] 30 mg/kg; green arrows) for three weeks. (C), BM EC pri, pre, and mature miR-126 levels were measured by Q-RT-PCR (D) and representative plots (E, left) and combined results (E, right) of CD31⁺Sca-1^high and CD31⁺Sca-1^low EC subpopulations were analyzed by flow cytometry. Comparison between groups was performed by two-tailed, unpaired t test. Results shown represent mean ± standard error of mean. NS: not significant.

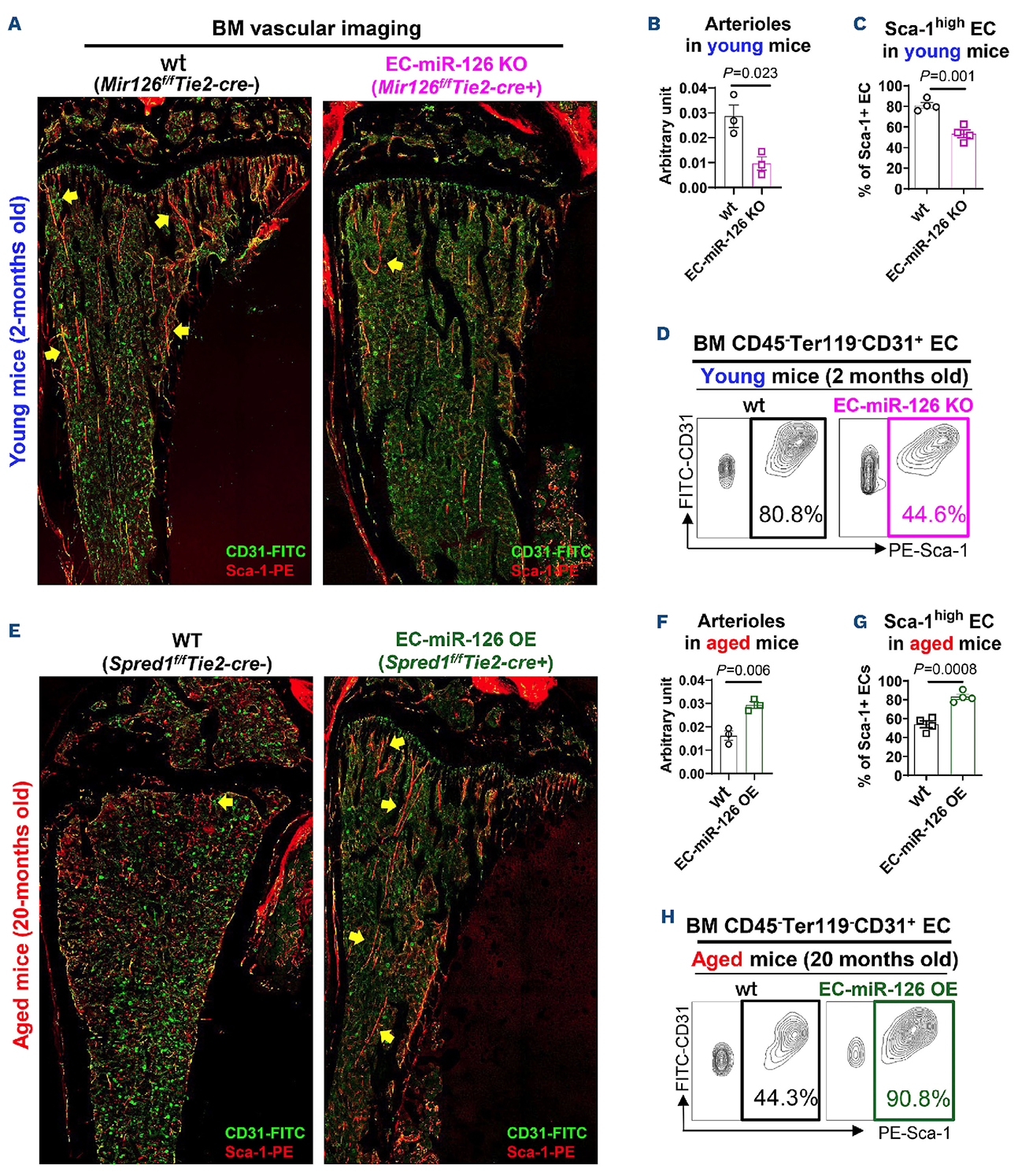

Figure 5.CD31⁺Sca-1^high endothelial cell-lined arterioles reduced in Mir126^f/fTie2-cre⁺ mice (EC-miR-126 knockout) and increased in Spred1^f/f Tie2-cre⁺ mice (EC-miR-126 overexpression). (A and B) CD31-FITC and Sca-1-PE immunofluorescence staining and 3D confocal imaging (A) and quantification (B) of CD31⁺Sca-1^high endothelial cell (EC)-lined arterioles in tibias from 2-months old Mir126^f/fTie2-cre^- (wild-type [wt]) or Mir126^f/fTie2-cre⁺ (EC-miR-126 knockout [KO]) mice. (C and D) Combined results (C) and representative plots (D) of Sca-1^high and Sca-1^low EC subfractions in bone marrow (BM) CD45^-Ter119^-CD31⁺ EC from 2-months old Mir126^{f/ f}Tie2-cre^- or Mir126^f/fTie2-cre⁺ mice (N=4 mice per group), analyzed by flow cytometry. (E and F) CD31^-FITC and Sca-1-PE immunofluorescence staining and 3D confocal imaging (E) and quantification (F) of CD31⁺Sca-1^high EC-lined arteriolar vessels in tibias

Supplementary Figure S10A, B), and a down-regulator of miR-126 biogenesis.^43,45,46,65 EC-Spred1 KO mice (i.e., Spred1 ^{f/ f}Tie2-cre⁺), therefore, express constitutively higher levels of EC-miR-126 than Spredf^/fTie2-cre- (wt) control mice (Online Supplementary Figure S10C) and represent a functional model for EC-miR-126 OE.^45,46 Accordingly, young Spred1 ^{f/ f}Tie2-cre⁺ mice had more BM arteriole-lining CD31⁺Sca-1^high EC than young wt controls (Online Supplementary Figure S10D). Conversely, aged Spred1 ^{f/ f}Tie2-cre⁺ mice did not display loss of CD31⁺Sca-1^high EC-lined arteriolar vessels such as those seen in aged wt controls (Figure 5E-H).

Taken together, these results support a model in which “inflammaging” suppresses endothelial miR-126 expression, resulting in loss of CD31⁺Sca-1^high EC and reduced arteriolar density in the aged BM niche.

miR-126 downregulation in aged bone marrow endothelial cells contributes to loss of regenerating capacity of hematopoietic stem cells

MiR-126 regulates the self-renewal capacity of HSC.^41-43 In the BM niche of normal wt mice, we found that EC expressed at least a log-fold higher level of miR-126 than HSC (Fit3-CD150⁺CD48- LSK).^43,45,46 While HSC may produce endogenous miR-126, miR-126^high EC lining BM arteriolar vessels also supply miR-126 to surroundings cells in the BM niche, including HSC.^43,45,46 We previously demonstrated that BM EC deliver mature miR-126 to leukemia stem cells (LSC) and HSC through extracellular vesicles.⁴³ Thus, a decline in BM CD31⁺Sca-1^high EC-lined arterioles as observed in the aged BM niche, could reduce the exogenous supply of EC-derived miR-126 to HSC, ultimately impairing hematopoietic activity by promoting HSC expansion at the expense of their self-renewal capacity. Accordingly, while levels of pri- and pre-miR-126 were similar in young and aged BM HSC, mature miR-126 levels were significantly reduced in HSC from the aged mice (Figure 6A), which also displayed a reduction of miR-126^high CD31⁺Sca-1^high arterioles (Figure 2A, B) and lower HSC self-renewal capacity (Figure 1A, B and Online Supplementary Figure S1A, B). We observed that these features were remarkably similar to those observed in young EC-miR-126 KO mice (Mir126^f/fTie2-cre⁺) that, like aged wt mice, had low miR-126 levels (Online Supplementary Figure S8A), reduction of CD31⁺Sca-1^high arterioles (Figure 5A-D), and expansion of BM HSC (Figure 6B), yet, despite their young age, showed a significantly impaired long-term regenerating capacity compared with young wt mice (Mir126^{f/ f}Tie2-cre⁺ HSC vs. Mir126^f/fTie2-cre- HSC engraftment rates: 41% vs. 62% at 20 weeks post transplant, P=0.0385) (Figure 6C, D). Conversely, aged EC-miR-126 OE mice (Spred1^{f/ f}Tie2-cre⁺) had higher density of BM CD31⁺Sca-1^high EC and arterioles (Figure 5E-H) and lower frequency of HSC (Figure 7A), which exhibited enhanced self-renewal capacity compared with aged wt controls (Spred1^f/fTie2-cre⁺ HSC vs. Spred1^f/f Tie2-cre^- HSC engraftment rates: 42% vs. 9% at 20 weeks post transplant, P=0.0016) (Figure 7B, C). Finally, aged HSC from CD45.2 mice (20 months old) co-cultured with aged EC had lower levels of miR-126 and reduced long-term engraftment rates in congenic CD45.1 recipients compared with aged HSC co-cultured with young EC (engraftment at 16 weeks post transplant: 46.2% vs. 65.7%, P=0.0003) (Figure 7D); this reduction could be rescued by co-treatment with miR-126 mimic (engraftment at 16 weeks: 46.2% vs. 57.2%, P=0.03) (Figure 7D).

These findings further support the hypothesis that EC miR126 reduction, whether due to aging or genetic deletion, drives HSC expansion at the cost of long-term self-renewal capacity.

Reduced metabolism in aged hematopoietic stem cells

To gain insight into the intrinsic molecular mechanism underlying the reduced self-renewal capacity in aged HSC upon decreased EC miR-126 supply, we performed RNA-seq of BM HSC from young (N=3 samples, pooled from 30 young mice) and aged (N=3 samples, from 3 aged mice) mice. We identified 388 up-regulated and 127 down-regulated genes in aged versus young HSC. GSEA revealed upregulation of inflammation-response gene sets (e.g., interferon alpha response, IL2-STAT5 signaling, interferon gamma response, IL6-JAK-STAT3 signaling, inflammatory response) and down-regulation of gene sets related to DNA repair, mitotic spindle, G2M checkpoint, and E2F targets in aged HSC compared with young HSC (Online Supplementary Figures S11A, B and S12A, B). Aged HSC seemingly acquired a lineage-biased profile with higher levels of myeloid (i.e., Cebpd, Itgam, Csf3r, Hk3, Elane, Csf2ra)^66,67 and megakaryocyte (i.e., Mpl, Vwf, Slamf1)⁶⁸ associated marker genes (Online Supplementary Figure S13A, B). Aged HSC also have higher expression levels of miR-126 target genes (i.e., Adam9, Cdk3, Itga6, Cd84, Hoxb6 and PLK2),^41,69,70 consistent with their lower miR-126 levels than young HSC (Online Supplementary Figure S13B). Notably, aged HSC exhibited a significant downregulation of gene sets involved in oxidative phosphorylation (OXPHOS) (Online Supplementary Figures S11B, S14A, B, and S15A, B). In line with this transcriptional profile, aged HSC demonstrated reduced OXPHOS (measured by oxygen consumption rate [OCR]) and glycolysis (measured by extracellular acidification rate [ECAR]) activity and ATP production using the Seahorse assay, and impaired mitochondrial fusion,⁷¹ as assessed by electron microscopy (Online Supplementary Figure S16A-D). To confirm that these metabolic changes occurring in aged HSC were driven by reduced miR-126 expression, we treated aged HSC with miR-126 mimic (2 µM). Compared to scramble controls, miR-126 mimic partly rescued the changes associated with miR-126 depletion, as it increased OXPHOS, glycolysis and ATP, and restored mitochondrial fusion (Online Supplementary Figure S17A-D).

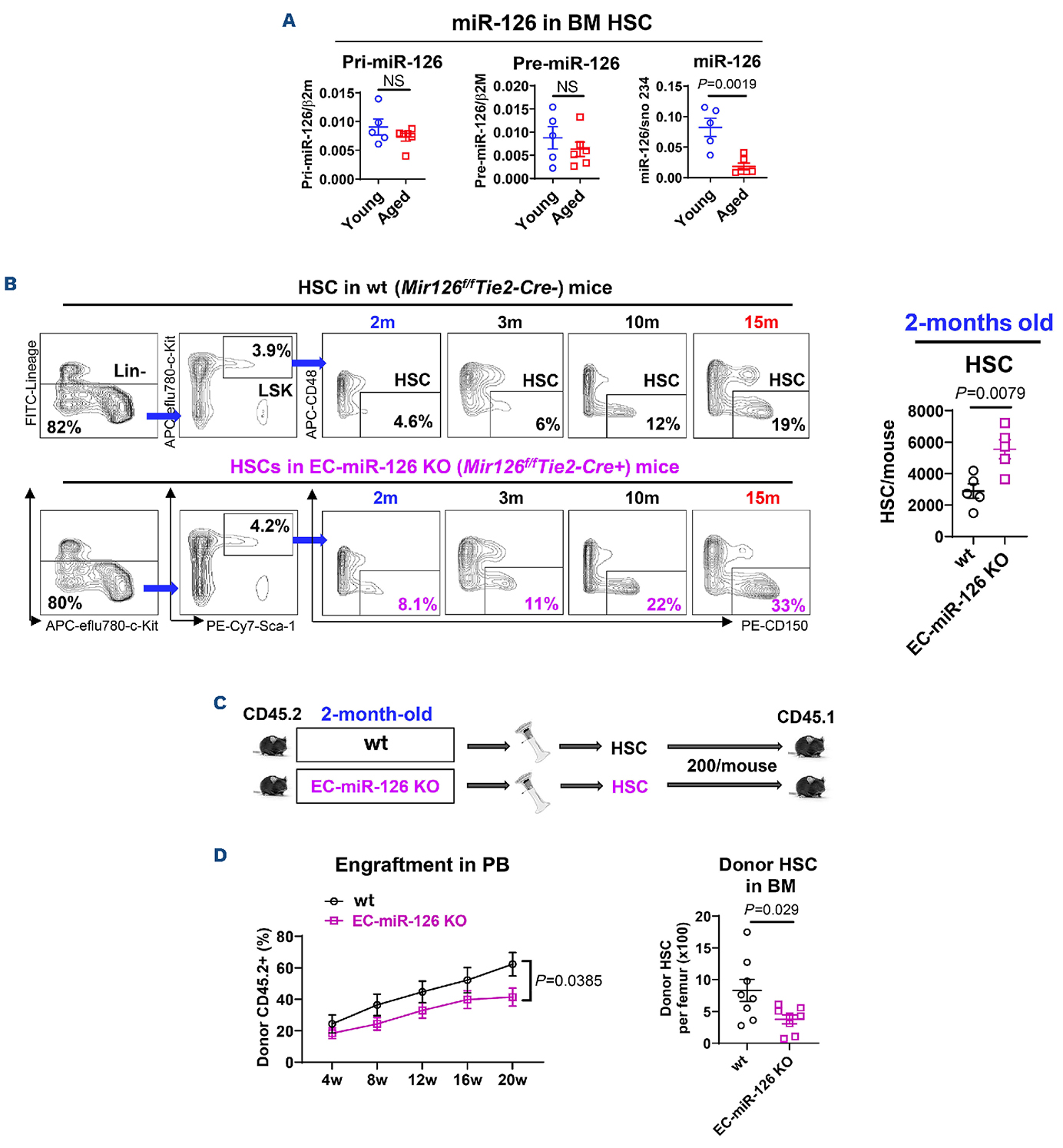

Figure 6.miR-126 downregulation in bone marrow endothelial cells contributes to loss of regenerating capacity of hematopoietic stem cells. (A) Primary (Pri-), precursor (pre-), and mature miR-126 levels in bone marrow (BM) lineage-Sca-1⁺c-Kit⁺FLT3^-CD150⁺CD48^- hematopoietic stem cells (HSC) from young (2-3-months old) and aged (18-24-months old) mice by quantitative reverse-transcription polymerase chain reaction (Q-RT-PCR). (B) Representative plots (left) and combined results (right, N=5 mice per group) of BM lineage^-Sca-1⁺c-Kit⁺FLT3^-CD150⁺CD48^- HSC in 2-, 3-, 10-, and 15-months (m) old Mir126^f/fTie2-cre^- (wild-type [wt]) and Mir126^f/fTie2-cre⁺ (endothelial cell [EC]-miR-126 knockout [KO]) mice. (C and D) Lineage^-Sca-1⁺c-Kit⁺FLT3^-CD150⁺CD48^- HSC from 2-months old Mir126^f/fTie2-cre^- (wt) or Mir126^f/fTie2-cre⁺ (EC-miR-126 KO) mice (CD45.2) were transplanted into 2-months old CD45.1 recipient mice (C) and donor HSC engraftment rates (% of CD45.2⁺) in peripheral blood (PB) monthly and donor lineageSca-1⁺c-Kit⁺FLT3^-CD150⁺CD48^- HSC number in BM of the recipient mice at 20 weeks post transplant were analyzed by flow cytometry (D). Comparison between groups was performed by two-tailed, unpaired t test. Results shown represent mean ± standard error of mean. NS: not significant.

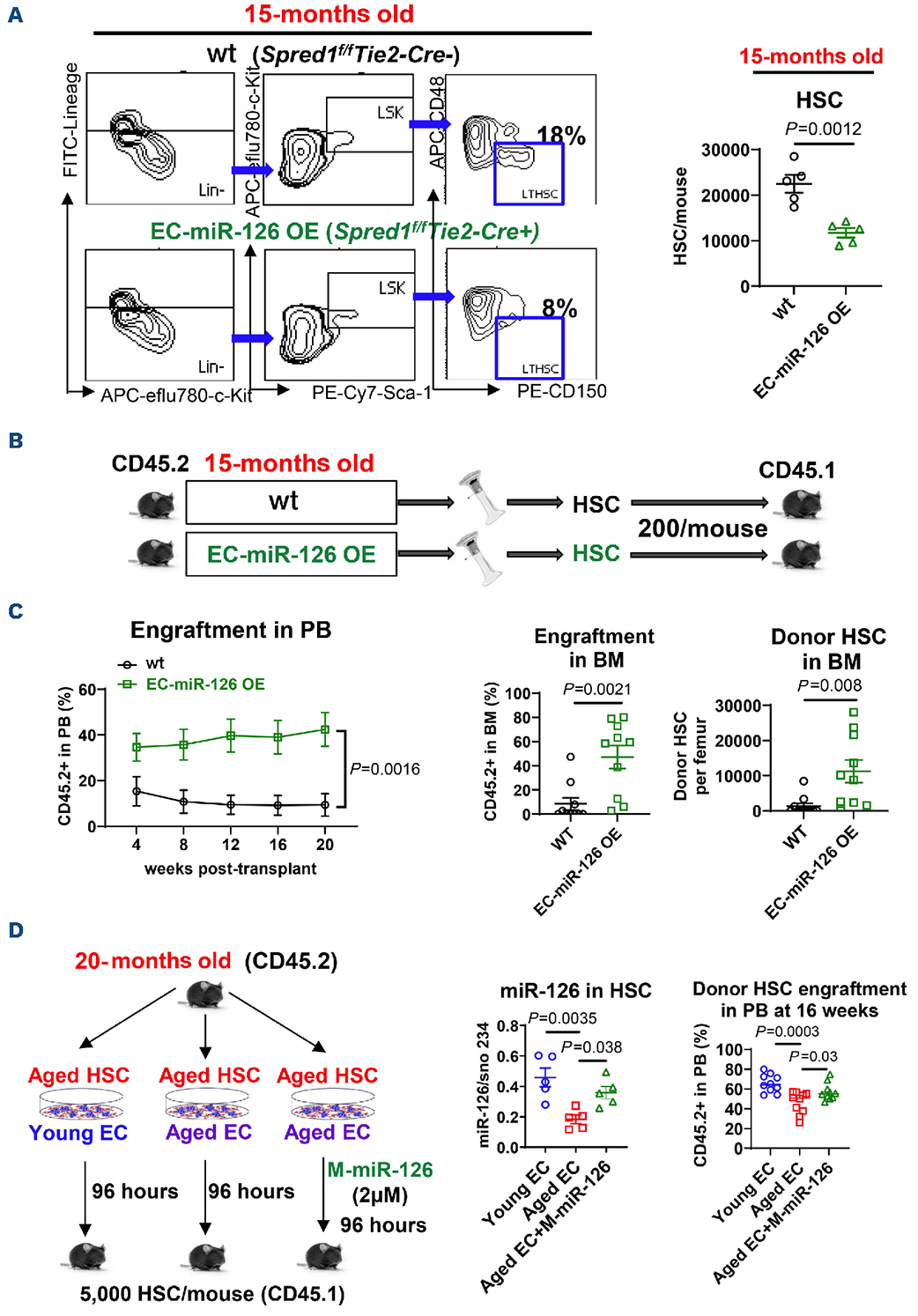

Figure 7.Upregulation of endothelial cell-miR-126 contributes to increased long-term regenerating capacity in aged hematopoietic stem cells. (A) Representative plots (left) and combined results (right, N=5 mice per group) of bone marrow (BM) lineage^-Sca-1⁺c-Kit⁺FLT3^-CD150⁺CD48^- hematopoietic stem cells (HSC) in 15-months (m) old Spred1^f/fTie2-cre^- (wild-type [wt]) and Spred1^f/fTie2-cre⁺ (endothelial cell [EC]-miR-126 overexpression [OE]) mice. (B and C) Lineage^-Sca-1⁺c-Kit⁺FLT3^-CD150⁺CD48^- HSC from 15-months old Spred1^f/fTie2-cre^- (wt) or Spred1^f/fTie2-cre⁺ (EC-miR-126 OE) mice (CD45.2) were transplanted into 2-months old CD45.1 recipient mice (B) and donor HSC engraftment rates in peripheral blood (PB) of the recipient mice monthly and in BM at 20 weeks post transplant were analyzed by flow cytometry (C). (D) Lineage^-Sca-1⁺c-Kit⁺FLT3^-CD150⁺CD48^- HSC from aged mice (CD45.2, 20-months old) were co-cultured with young or aged EC, respectively, collected from 2-3 months old or 18-24 months old mice, for 96 hours. HSC co-cultured with aged EC were also treated with miR-126 mimic (M-miR-126, 2 μM; 96 hours). HSC were collected and miR-126 levels were analyzed by quantitative reverse-transcription polymerase chain reaction (Q-RT-PCR). HSC were also transplanted into CD45.1 recipient mice and engraftment rates were monitored monthly by flow cytometry analysis. SCR: scrambled RNA control. Comparison between groups was performed by two-tailed, unpaired t test. Results shown represent mean ± standard error of mean.

Discussion

There is growing evidence to indicate that aged mice present with BM vascular niche remodeling and loss of HSC self-renewal capacity with skewed myeloid / megakaryocytic differentiation compared with young mice.^26,72 Whether the age-related inflammation of the BM niche is the primary cause or a direct consequence of HSC aging is not fully understood. With age, arteriolar vessels decrease, while sinusoids appear largely unchanged.⁷² The vessel changes result in increase in the vascular leakiness and reactive oxygen species levels and decrease in angiogenesis.³² Poulos et al. previously reported that young HSC co-cultured with aged EC lack long-term hematopoietic multilineage reconstitution, while aged HSC co-cultured with young EC maintain their self-renewal ability.³² Infusion of young EC into aged, conditioned mice rejuvenates an aged hematopoietic system.³² Thus, a disrupted interplay between the vascular component of the BM niche and HSC may play a significant role in those functional changes observed in aged hematopoiesis; however, the molecular mechanisms remain to be fully elucidated.

MiR-126 is one of the most highly expressed microRNA in EC, where it acts as a master regulator of angiogenesis.^38,40 miR-126 reportedly regulates many aspects of EC biology and contributes to the maintenance of vascular integrity and inhibition of endothelial permeability by inhibiting its targets, SPRED1 and PIK3R2, the negative regulators of the VEGF pathway,^38,40 and other vascular secretory factors, including VEGF itself.⁷³ We previously showed that BM CD31⁺Sca-1^high EC (that line mainly arterioles) express the highest levels of miR-126 in the BM niche and supply miR-126 to HSC to maintain their homeostasis, quiescence and self-renewal capacity.⁴³

Here, we used young and aged wt and EC/Sca-1 reporter mice, an EC-miR-126 KO model, and a functional model for EC-miR-126 OE (EC-Spred1 KO) to study the vascular changes occurring in the aged BM niche and their impact on HSC aging. Several additional biomarkers (e.g., phosphorylation status of α-SMA, VE-cadherin) were used by other groups to identify specific vessels;^74,75 however, due to technical challenges in imaging bone with confocal microscopy, and the lack of a “gold standard” immunostaining classification of BM vessels, based on our publications and other reports,^27,31,43,45 we here chose to combine CD31/Sca-1 immunofluorescent staining, 3D confocal imaging and flow cytometry analysis of long bone and marrow cells to identify and quantify vascular changes in the aged BM niche. We showed that aged mice had lower levels of EC-miR-126 and undergo a BM vascular remodeling, with a loss in CD31⁺Sca-1^high EC, which line mainly non-permeable arterioles, and a gain in CD31⁺Sca-1^low EC, which line mainly fenestrated, permeable sinusoids. These alterations were phenocopied in EC-miR-126 KO mice and rescued in EC-miR-126 OE (i.e., EC-Spred1 KO) mice. Of note, while EC-Spred1 KO is a validated method to elevate EC-miR-126 levels,^43,45,46,65 it cannot fully exclude its contribution independently of miR-126 levels to vascular changes. Nevertheless, when considered altogether, our data collectively support a causal link between miR-126 downregulation and arteriole loss in aged BM. To this end, we and others have identified miR-126 as a key regulator of angiogenic signaling and vascular integrity.^38,40,45 Here, we extend these findings to the aging BM niche, demonstrating that EC-specific miR-126 loss drives arteriole depletion, thereby limiting the arteriolar supply of miR-126 to HSC. The role of miR-126 in regulating HSC homeostasis and self-renewal capacity has been well characterized.^41-43 Here, we specifically examine how aging perturbs the EC–HSC crosstalk in the BM niche, thereby resulting in hematopoietic dysfunction. Our results indicate that aging-related hematopoietic dysfunction and vascular remodeling likely occur in parallel and could reinforce one another through the disrupted miR-126 trafficking from EC to HSC. Of note, the BM vascular niche provides HSC-supportive cues (including oxygen, nutrients, and signaling molecules⁷⁶) that likely act in synergy with miR-126-dependent pathways, and how these factors change during aging, in addition to miR-126, should be dissected in future studies. In aged mice, the BM microenvironment is reportedly associated with increased pro-inflammatory cytokines, and skewing of HSC to myeloid differentiation.¹⁶ We showed that in the aged BM niche, levels of inflammatory cytokines are elevated, and while HSC expand, they have a significantly reduced regenerative capacity, in addition to myeloid / mega-karyocytic skewing. Mature myeloid / megakaryocytic cells are a major source of inflammatory cytokines⁷⁷ that further amplify myeloid/megakaryocytic differentiation^72,78-80 and increase BM “inflammaging”. While several inflammatory cytokines have been reported to mediate the “inflammaging”,¹⁵ we have focused on TNFα which has been intensively studied for its role in both normal and malignant hematopoiesis.^80,81 Yamashita and Passegue recently reported that TNFα might lead to hyperproliferation of HSC and exacerbated myelopoiesis in aging.⁸⁰ Here, we show that TNFα-induced downregulation of EC-miR-126 results in depletion of miR-126^high CD31⁺Sca-1^high EC and gain in miR-126^low CD31⁺Sca-1^low EC, causing loss of arterioles and enrichment of sinusoids. This age-related BM vascular remodeling reduces the supply of EC miR-126 to HSC, which expand but lose long-term regenerating capacity. Of note, the decrease in CD31⁺Sca-1^high EC and arterioles and expansion of HSC with reduced regenerating capacity in the aged BM niche were recapitulated in the young EC-miR-126 KO mice. To this end, up-regulating miR-126 levels by synthetic miR-126 mimic rescued the reduction of long-term hematopoietic regenerating capacity in aged HSC co-cultured with aged EC compared with those co-cultured with young EC.

In conclusion, our findings establish miR-126 as a critical regulator of BM vascular integrity and HSC maintenance during aging. In our model, aged HSC expand and generate myeloid cells that secrete inflammatory cytokines including TNFα. Elevated TNFα in the aging BM niche suppresses EC-miR-126, disrupts arteriolar architecture, and diminishes miR-126 availability to HSC, contributing to their functional decline. Therapeutic restoration of miR-126 using synthetic mimic may represent a promising strategy to counteract aging-associated hematopoietic dysfunction and rejuvenate hematopoiesis.
