Abstract
Despite major therapeutic advances in the treatment of acute lymphoblastic leukemia (ALL), resistances and long-term toxicities still pose significant challenges. Cyclins and their associated cyclin-dependent kinases are one focus of cancer research when looking for targeted therapies. We discovered cyclin C to be a key factor for B-cell ALL (B-ALL) development and maintenance. While cyclin C is not essential for normal hematopoiesis, CcncΔ/Δ BCR::ABL1+ B-ALL cells fail to elicit leukemia in mice. RNA sequencing experiments revealed a p53 pathway deregulation in CcncΔ/Δ BCR::ABL1+ cells resulting in the inability of the leukemic cells to adequately respond to stress. A genome-wide CRISPR/Cas9 loss-of-function screen supplemented with additional knock-outs unveiled a dependency of human B-lymphoid cell lines on CCNC. High cyclin C levels in B-cell precursor (BCP) ALL patients were associated with poor event-free survival and increased risk of early disease recurrence after remission. Our findings highlight cyclin C as a potential therapeutic target for B-ALL, particularly to enhance cancer cell sensitivity to stress and chemotherapy.
Introduction
The Philadelphia (Ph) chromosome, a product of the reciprocal translocation t(9;22)(q34;q11) between chromosomes 9 and 22, encodes the BCR::ABL1 fusion oncoprotein.1 The constitutively active BCR::ABL1 tyrosine kinase is a hallmark of chronic myeloid leukemia (CML) and drives a subset of acute lymphoblastic leukemia (ALL). The incidence of Ph positive (Ph+) ALL correlates with age, from only 3% in pediatric ALL to around 25% in older adults.2 Direct targeting of the BCR::ABL1 kinase with tyrosine kinase inhibitors (TKI) has been a breakthrough in targeted cancer therapy. Despite efforts to counteract TKI resistance and improve safety profiles, refractory BCR::ABL1+ leukemia, as well as toxicities and long-term side effects of TKI, present particular therapeutic challenges.3-5
The clinical relevance of cyclins and their associated cyclin-dependent kinases (CDK) has been a major focus of research for several years. Cyclin-CDK complexes do not only drive the cell cycle, but are also important players in various other cellular processes including transcriptional and epigenetic regulation, metabolism or stem cell self-renewal.6 In line with their importance in different pathways, cyclin-CDK complex dysregulation is implicated in many different types of cancer.7
Cyclin C belongs to the transcriptional cyclins, with its most notable role being the activating partner of the CDK8/19 serine / threonine kinases. Both CDK8 and cyclin C are essential for embryonic development, as transgenic mice lacking either protein are not viable while deletion in adult mice is generally well tolerated.8-10 The cyclin C-CDK8 kinase complex can regulate transcription by phosphorylation of different substrates including histone H3,11 the NOTCH intracellular domain,8,12 STAT transcription factors,13 and SMAD proteins.14
In addition, cyclin C plays a transcriptional role as a member of the CDK8/19 kinase module (CKM) of the Mediator, a regulatory subunit that acts as modulator of the interaction between the large Mediator complex and RNA Polymerase II and consists of MED12/12L, MED13/13L, CDK8/19, and cyclin C.15 Apart from its transcriptional function, some studies also report that cyclin C in complex with CDK1/2/3 has a role in cell-cycle regulation.8,16 In addition, non-canonical functions of cyclin C in mitochondrial fragmentation have been elucidated which are separate from its binding to CDK.17,18 The diverse pathways through which cyclin C operates might also account for its highly context-dependent role in cancer; for example, in T-ALL and osteosarcoma it functions as a tumor suppressor.8,19 In thyroid tissue, cyclin C co-operates with PTEN to suppress cancer development.20 Conversely, CCNC amplification is associated with poor survival in colon adenocarcinoma21 and high CCNC levels correlate with poor relapse-free survival in breast cancer patients.22,23 Cyclin C-specific roles in B-cell malignancies have not yet been investigated.
Understanding the mechanisms driving the progression of B-cell acute lymphoblastic leukemia (B-ALL) is a fundamental prerequisite for developing innovative pharmacological inhibitors and refining treatment strategies. In this study, we investigated the role of cyclin C in the development and maintenance of B-ALL and demonstrate its pivotal oncogenic role in leukemic cells both in vitro and in vivo.
Methods
Study approvals
All experiments were conducted with gender- and agematched 6-12-week old mice in accordance with the Ethics and Animal Welfare Committee of the University of Veterinary Medicine, Vienna, Austria, and the national authority, according to the 2012 Animal Experiments Act (Tierversuchsgesetz) (licence numbers: BMWFW-68.205/0093-WF/V/3b/2015, 2022-0.404.452 and BMBWF-68.205/0174-V/3b/2018), and according to the guidelines of the FELASA and ARRIVE.
Leukemia monitoring
To monitor leukemia development over time, gender- and age-matched 8-12-week old NOD scid gamma (NSG) mice were injected with 2,500 BCR::ABL1p185+ cells via the tail vein. Mice were monitored daily and sacrificed upon manifestation of disease symptoms (hindleg paralysis, hunched posture, decreased mobility, weight loss). Alternatively, leukemic cell infiltration at a specific time point was assessed by sacrificing the whole cohort of transplanted mice 26 days post injection.
Patient data analysis
For comparison of CCNC levels in leukemia patients, the preparation of the RNA sequencing (RNA-Seq) libraries and the pre-processing of sequencing data was carried out as previously described at the MLL Munich Leukemia Laboratory.24 Bone marrow (BM) mononuclear cells from healthy donors served as controls. Raw counts were normalized by applying the Trimmed mean of M-values method from the edgeR package,25 producing log2 CPM values.
To determine the event-free survival (EFS) probability for patients with high versus low CCNC-expressing B-cell precursor (BCP) ALL, expression levels were analyzed in a cohort of 573 pediatric BCP-ALL patients described by van der Veer et al.26 Expression of CCNC at first diagnosis was determined with Affymetrix U133 plus2.0 gene expression microarrays using probeset 201955_at after vsnrma normalization.27 Expression data are published by Polak et al.28 and have been deposited at GEO (accession number: GSE87070). Median expression among BCP-ALL samples was used as high/low cut-off for CCNC expression.
Results
Malignant B-lymphoblastic cells depend on cyclin C
To analyze the impact of deleting components of the cyclin C-CDK8/19 kinase complex, we queried the genome-wide CRISPR/Cas9-based loss-of-function screens performed for the Cancer Dependency Map (DepMap) Project and investigated the effects of CCNC, CDK8 or CDK19 knock-out across a panel of 1,095 human cancer cell lines (Figure 1A). Among these 1,095 cell lines, 258 cell lines exhibited a dependency on cyclin C, whereas only 50 displayed a dependency on CDK8 and none were reliant on CDK19. Notably, the loss of CCNC had a pronounced impact on distinct cell lines, particularly those associated with plasma cell myelomas and cell lines of lymphoid origin, specifically B-cell lymphoblastic leukemia / lymphoma cell lines (Figure 1B, Online Supplementary Figure S1A). The dependency of plasma cell myelomas on cyclin C was accompanied by a dependency on CDK8 while leukemic cells were not among the enriched lineages for CDK8 dependency (Online Supplementary Figure S1B). This prompted us to investigate the role of cyclin C in the development and progression of B-cell leukemia and to validate its potential as novel therapeutic vulnerability.
Figure 1.Malignant B-lymphoblastic cells depend on cyclin C. (A) CRISPR dependencies for CCNC, CDK8 and CDK19 in a panel of human cancer cell lines obtained from the Broad Institute Cancer Dependency Map (DepMap). Dots correspond to individual cell lines (N=1,095), y-axis represents CRISPR dependency score (DepMap Public 23Q2+Score, Chronos). Negative gene effect scores imply dependency of a cell line on a given gene as gene knock-out results in impaired cell line growth and/or death. Scores are normalized so that all non-essential genes have a median score of 0 and all common essential genes have a median score of -1. Cell lines with probability of dependency >0.5 are considered dependent. (B) Representation of the top 8 significantly enriched lineages (P<0.0005, t test) in the Depmap CRISPR dependency screen for CCNC. The number of cell lines included in each lineage subset is denoted in parentheses. Ranking was based on effect size.
Cyclin C is not essential for normal hematopoiesis
We first studied the consequences of cyclin C deficiency for hematopoiesis and crossed conditional Ccncfl/fl mice8 with VavCre29 mice. Ccncfl/fl VavCre-/- (Ccncfl/fl) and Ccncfl/fl VavCre+/- (Ccncfl/fl VavCre) mice were born at the expected Mendelian ratio (Online Supplementary Figure S2A) and the ablation of cyclin C in BM and spleens of Ccncfl/fl VavCre mice was confirmed via immunoblotting (Figure 2A). Total cell counts in BM and spleen remained unchanged by Ccnc deletion (Online Supplementary Figure S2B) and peripheral blood analysis indicated comparable numbers of white and red blood cells, as well as platelets (Online Supplementary Figure S2C, D). Flow cytometric analyses failed to detect any alterations in the numbers of Lin-Sca-1+c-kit+ (LSK) cells and progenitor cell subsets in Ccncfl/fl VavCre animals (Figure 2B, C and Online Supplementary Figure S2E, F). As the analysis of human cell lines indicated a role of cyclin C in malignancies of B-lymphoid origin, we conducted a detailed analysis of B-cell development in Ccncfl/fl VavCre mice. We failed to detect any alterations in B-cell developmental stages starting from common lymphoid progenitors (CLP) in the BM (Figure 2D, Online Supplementary Figure S2G). In essence, cyclin C deficiency in the hematopoietic system is well tolerated.
Cyclin C plays a pivotal role in the oncogenic transformation and immortalization of BCR::ABL1p185+ B-cell acute lymphoblastic leukemia
To investigate the role of cyclin C in B-ALL development and maintenance, we focused on Ph+ leukemia which represents the most common chromosomal aberration in adult ALL patients,30 and utilized well-established murine models which reliably and specifically promote B-ALL development. A retroviral pMSCV-Bcr-Abl1-p185-IRES-eGFP construct was used to transform BM cells isolated from Ccncfl/fl and Ccncfl/fl VavCre mice. In contrast to CDK8 deficiency,10 absence of cyclin C impaired the initial leukemic transformation, as evidenced by a significantly reduced number of CcncΔ/Δ colonies derived from BM of Ccncfl/fl VavCre mice in growth factor-free methylcellulose (Figure 3A). Primary BM cultured in methylcellulose supplemented with interleukin-7 (IL-7) served as control and proved that cytokine-dependent colony growth of non-transformed cells is unaffected by cyclin C deletion (Figure 3B). Cancer progression is a multistep process which requires cancer cells to overcome intrinsic checkpoint mechanisms for tumorigenesis.31 To test the potential for immortalization, individual clones were picked and the outgrowth of stable cell lines in fetal calf serum (FCS)-supplemented medium was monitored. Cyclin C ablation significantly decreased the ability to form monoclonal cell lines, indicative of its impact on immortalization (Figure 3C). To control the experimental setting, we also directly infected BM from Ccncfl/fl and Ccncfl/fl VavCre mice with pMSCV-Bcr-Abl1-p185-IRES-eGFP retrovirus prior to seeding in IL-7-supplemented medium. While this approach facilitates the simultaneous emergence of multiple transformed clones, ensuring the reliable establishment of immortalized, stable cell lines, we noted again a significant decrease in outgrowing cell lines in the absence of cyclin C. In contrast, all wild-type BM samples successfully underwent immortalization upon transformation with the BCR::ABL1p185 oncogene (Online Supplementary Figure S3A, B). Comparable results were obtained using the v-ABLp160 oncoprotein, a murine variant of BCR::ABL1p185 (Online Supplementary Figure S3C, D). Cyclin C deficiency increased the apoptotic cell fractions during cell-line establishment (in not yet stable cell lines), indicating elevated apoptosis might account for the reduced capability of CcncΔ/Δ cells to immortalize (Figure 3D).
Figure 2.Cyclin C is not essential for normal hematopoiesis. (A) (Left) Breeding scheme for the generation of Ccncfl/fl VavCre-/-(Ccncfl/fl) and Ccncfl/fl VavCre+/- (Ccncfl/fl VavCre) mice. (Right) Cyclin C immunoblot analysis of bone marrow (BM) and spleen from Ccncfl/fl and Ccncfl/fl VavCre mice (N=3 per genotype). HSC70 served as loading control. (B) Lin-Sca-1+c-kit+ (LSK) frequencies in BM of Ccncfl/fl (N=12) and Ccncfl/fl VavCre (N=11) mice, one representative out of 2 independent experiments is shown. (C) Relative fold change of BM subpopulations from Ccncfl/fl VavCre normalized to the mean value from Ccncfl/fl mice (N=9-12). (D) (Left) Representative flow cytometry plots depicting the gating scheme for early B-cell development populations according to expression of the markers CD43, B220, BP-1, CD19, IgM, IgD and (right) summary of frequencies in the BM of Ccncfl/fl (N=12) and Ccncfl/fl VavCre (N=10) mice normalized to mean values from Ccncfl/fl mice. Details on flow cytometric analyses are provided in the Online Supplementary Methods. Bar graphs represent mean ± Standard Deviation. Box and whiskers plot center values represent median, the box 25th to 75th percentiles, and whiskers minimum to maximum. (B-D) Levels of significance were calculated using Mann-Whitney U test. HSC: hematopoietic stem cells; MPP: multipotent progenitor population; CLP: common lymphoid progenitors.
Cyclin C regulates stress responses in BCR::ABL1p185+ leukemic cells
Deletion of cyclin C reduced the number of emerging stable cell lines (Online Supplementary Figure S3A, B). The cyclin C-deficient BCR::ABL1p185+ cell lines that managed to immortalize showed comparable oncogene levels, as indicated by the mean fluorescence intensity (MFI) of the co-expressed GFP (Online Supplementary Figure S3E). Absence of cyclin C in these cell lines had no impact on the expression of CDK8/19 (Online Supplementary Figure S3F). All Ccncfl/fl and CcncΔ/Δ BCR::ABL1p185+ cell lines stained positive for the pan B-cell markers B220 and CD19. While all cell lines of both genotypes lacked the expression of maturation markers IgM and IgD, CD43 expression was reduced in CcncΔ/Δ BCR::ABL1p185+ cells, suggesting a more differentiated developmental stage (Online Supplementary Figure S3G-I). All immortalized, stable cell lines proliferated in FCS-supplemented medium, but we observed a slight, statistically significant growth defect upon cyclin C deletion (Figure 3E). Following initial studies in yeast, later reports underscored the importance of cyclin C in mammalian stress response.8,17,32 This prompted us to evaluate the impact of serum starvation on the stable CcncΔ/Δ BCR::ABL1p185+ cell lines. Nutrient deprivation for 24 hours led to an increase in the sub-G1 fraction that was more pronounced in cyclin C-deficient cells, indicating a role for cyclin C in stress response regulation of leukemic cells (Figure 3F).
Cyclin C deficiency impairs in vivo leukemia establishment
To test the disease-initiating potential of the cyclin C-deficient cell lines in vivo, we transplanted Ccncfl/fl and CcncΔ/Δ leukemic cells into NSG mice (Figure 4A). The severe immunodeficiency of these animals allowed us to study the tumor-intrinsic properties of BCR::ABL1p185+ B-ALL in vivo. Wild-type BCR::ABL1p185+ cells initiated an aggressive leukemia and infiltrated BM, spleen and blood of the recipient mice within 26 days. In contrast, CcncΔ/Δ cells failed to elicit disease in the injected animals 26 days post transplantation despite being still detectable at low numbers (Figure 4B, C, Online Supplementary Figure S4A-C). This prompted us to monitor disease progression over time in a second independent experiment (Figure 4D). NSG mice injected with wild-type BCR::ABL1p185+ cells rapidly developed leukemia within 3-5 weeks, while CcncΔ/Δ cells (with one exception) did not elicit a disease over the period of 40 weeks. One animal from the CcncΔ/Δ cohort developed a B-ALL after 54 days (Figure 4E). The experiment was terminated after 281 days; at that time point no disease symptoms were detectable in the remaining CcncΔ/Δ BCR::ABL1p185+-injected mice (Figure 4F, Online Supplementary Figure S4D-F).
Cyclin C represses p53 responses in transformed cells
To understand how cyclin C interferes with BCR::ABL1-induced transformation, we performed RNA-Seq using in vitro cultured Ccncfl/fl and CcncΔ/Δ BCR::ABL1p185+ cell lines. In addition, the cells were injected into NSG mice to allow adaption to the in vivo microenvironment. Ccncfl/fl or CcncΔ/Δ BCR::ABL1p185+ cells were injected in high amounts (5x105 cells compared to 2,500 cells for disease initiation), which facilitated retrieval of sufficient numbers of CcncΔ/Δ cells from the BM ten days post transplantation despite their reduced infiltration compared to control cells (Figures 4, 5A, Online Supplementary Figure S5A).
In vitro, cyclin C deficiency affected the transcription of 446 genes: 146 upregulated and 300 downregulated. In contrast, differential gene expression analysis from the ex vivo-derived samples showed profound transcriptional changes, with 3,179 deregulated genes in CcncΔ/Δ cell lines compared to ex vivo controls; 1,465 genes were upregulated and 1,714 downregulated (Figure 5B, Online Supplementary Figure S5B, C). Gene set enrichment analysis (GSEA) revealed 27 altered pathways in the ex vivo samples, of which 9 were also deregulated in vitro, such as interferon responses or Myc targets (Online Supplementary Figure S5D). Among the pathways which were exclusively upregulated in CcncΔ/Δ BCR::ABL1p185+ cells ex vivo were the apoptosis and the p53 pathways (Figure 5C). Notably, enhanced expression of the p53 targets Plk, Sfn and Gadd45a contributed significantly to the enrichment of the p53 pathway ex vivo (Online Supplementary Table S1). GADD45a serves as an anti-oncogenic stress sensor in transformed cells and can inhibit the CDK1/ cyclin B1 complex together with p21 and 14-3-3σ (encoded by Sfn).33,34 The polo-like kinase PLK2 (SNK) likewise plays a role in stress signaling and has been described as a tumor suppressor in B-cell malignancies.35,36 As the p53 gene set was not among the significantly enriched pathways in the in vitro samples, we subjected in vitro cultured cells to stress by reducing FCS or cell density. Inducing stress in vitro via serum starvation or sparse seeding inhibited the proliferation of CcncΔ/Δ BCR::ABL1p185+ cells and enhanced the upregulation of several p53 pathway members including GADD45a, PLK2 and 14-3-3σ in cyclin C-deficient cells (Figure 5D, E, Online Supplementary Figure S5E). Upregulation of Cdkn2b, encoding the tumor suppressor p15INK4b, which likewise contributed to the enrichment of the p53 pathway, could also be confirmed via RT-qPCR (Online Supplementary Figure S5E). Notably, the enhanced expression of these p53 pathway genes in vitro only reached significance after provoking a stress response in CcncΔ/Δ BCR::ABL1p185+ cells. In addition, the p53 target Cdkn1a encoding p21 was significantly upregulated in vitro in the CcncΔ/Δ cell lines on mRNA as well as at the protein level (Online Supplementary Figure S5F, G), although no upregulation was observed in the ex vivo samples on mRNA level. The tumor suppressors p16INK4a and p19ARF, both encoded by the Cdkn2a gene, are also members of the p53 pathway and upregulated in CcncΔ/Δ BCR::ABL1p185+ cells in accordance with the RNA-Seq data (Online Supplementary Figure S5H).
Figure 3.Cyclin C plays a pivotal role in the oncogenic transformation and immortalization of BCR::ABL1p185+ B-cell acute lymphoblastic leukemia. Bone marrow (BM) cells from Ccncfl/fl and Ccncfl/fl VavCre mice were isolated and either (A) infected with a retrovirus encoding BCR::ABL1p185 prior to plating in growth-factor free methylcellulose or (B) directly plated in methylcellulose containing interleukin-7 (IL-7). Pictures show individual colonies for each genotype. The number of colonies (colony forming units [CFU]) were counted and are depicted normalized to mean values from Ccncfl/fl mice. (A) N=12 per genotype, pooled from 4 independent experiments, performed in technical duplicates. (B) N=3 per genotype, performed in technical duplicates. One representative result from 2 experimental set-ups with different concentrations of plated BM cells is shown. (C) Statistics on the percentage of immortalized monoclonal cell lines proliferating in FCS-supplemented medium after picking individual colonies from a BCR::ABL1p185-induced colony formation assay (N=14-30 picked colonies / genotype). Error bars represent Confidence Intervals (CI) calculated using the Wilson Score interval (95% CI). (D-F) BM cells from Ccncfl/fl and Ccncfl/fl VavCre mice were isolated, transformed with a pMSCV-Bcr-Abl1-p185-IRES-eGFP-based retrovirus, and cultured in liquid medium to monitor outgrowth. (D) Bar graphs summarizing the result of Annexin/7-AAD stainings performed six weeks after transformation of BM of Ccncfl/fl and Ccncfl/fl VavCre mice with the BCR::ABL1p185oncogene. Frequencies of living (Annexin- 7-AAD-), early apoptotic (Annexin+ 7-AAD-), and late apoptotic/necrotic (Annexin+ 7-AAD+) fractions from N=6-8 biological replicates / genotype are shown. (E) Growth curves of stable Ccncfl/fl and CcncΔ/Δ BCR::ABL1p185+ cell lines 12 weeks after initial transformation (N=4-5 cell lines/genotype, performed in technical duplicates). One representative result out of 3 independent experiments is depicted. (F) Flow cytometric analysis after PI cell cycle staining of Ccncfl/fl and CcncΔ/Δ BCR::ABL1p185+ cell lines (N=3 stable, independently established cell lines / genotype) in standard medium supplemented with 10% FCS and 24 hours after FCS removal (0% FCS). Experiments were performed in technical duplicates 12-18 weeks after initial transformation. (A, B, D, E, F) Graphs represent mean ± Standard Deviation. Levels of significance were calculated using (A, B, D) Mann-Whitney U-test, (C) Fisher’s exact test, or (E) unpaired t test on log-transformed counts from day 7 post seeding. *P<0.05, **P<0.01, ***P<0.001, ****P<0.0001.
Disruption of functional p53 signaling restores the leukemogenicity of cyclin C-deficient BCR::ABL1p185+ cells
As reducing cell density or serum concentrations in vitro increased the overexpression of the p53 pathway genes Plk2, Sfn and Gadd45a in CcncΔ/Δ BCR::ABL1p185+ cells, we employed CRISPR/Cas9 to test the effects of silencing the genes under the same stressors. Individually depleting either of these p53 targets partially rescued the impaired proliferation of CcncΔ/Δ cell lines, most pronouncedly under sparse seeding conditions (Figure 6A, Online Supplementary Figure S6A). Since our data suggest that cyclin C deletion amplifies overall p53 responses in BCR::ABL1p185+ cells, we hypothesized that cumulative effects of aberrant p53 signaling might account for the distinct disease-initiating potential observed in one CcncΔ/Δ cell line (Figure 4E, highlighted turquoise). Sanger sequencing analysis of ex vivo-derived spleen-infiltrating BCR::ABL1p185+ cells from the single mouse in the CcncΔ/Δ cohort which succumbed to leukemia revealed a Tp53 mutation accompanied by accumulation of mutant p53 protein (Figure 6B), potentially counteracting the cyclin C deficiency and resulting in an aggressive disease phenotype. Analyses of spleens from mice injected with Ccncfl/fl BCR::ABL1p185+ cells revealed either wild-type or mutant p53, proving that in the presence of cyclin C, BCR::ABL1p185+ cells are able to elicit leukemia irrespective of Tp53 mutational status.
To determine if functional loss of p53 signaling indeed restores the leukemogenicity of CcncΔ/Δ BCR::ABL1p185+ cells in vivo, we screened for CcncΔ/Δ cell lines carrying spontaneous Tp53 mutations, injected them into NSG mice, and monitored disease progression. Unlike CcncΔ/Δ BCR::ABL1p185+ cells with intact p53 (Figure 4E), BCR::ABL1p185+ cells lacking functional p53 rapidly caused a fatal B-ALL, despite loss of cyclin C (Figure 6C, Online Supplementary Figure S6B). In addition, inhibiting p53 by expressing dominant negative p53 (dn p53) in parental BCR::ABL1p185+ cells without spontaneous Tp53 mutations (Online Supplementary Figure S6C) restored the disease-initiating potential of CcncΔ/Δ B-ALL cells (Figure 6D, Online Supplementary Figure S6D). These data indicate that enhanced p53 activity in cyclin C-deficient BCR::ABL1p185+ cells could mechanistically explain their inability to give rise to B-ALL in vivo.
Cyclin C as a potential new target for B-cell acute lymphoblastic leukemia
To mimic a therapeutic setting, and to target cyclin C in already transformed leukemic cells, we generated BCR::ABL1p185+ cell lines using BM from Ccncfl/fl Mx1Cre mice. Here, an interferon-responsive Mx1 promoter allows Cre-mediated activation and excision of Ccnc upon interferon treatment / induction (Online Supplementary Figure S7A). Deletion of cyclin C via treatment with interferon-beta (Ifn-β) inhibited leukemic cell proliferation in vitro (Online Supplementary Figure S7B).
Figure 4.Cyclin C deficiency impairs in vivo leukemia establishment. (A) Scheme depicting experimental setup of data shown in (B) and (C). 2,500 Ccncfl/fl or CcncΔ/Δ BCR::ABL1p185+cells were injected intravenously (i.v.) into NSG mice (N=9-10/genotype, 3 independent cell lines per genotype were injected). (B) Representative pictures of spleens on day 26 post injection. (C) Representative pictures of blood smears on day 26 post injection after Hemacolor Rapid staining. Blasts are indicated with turquoise arrows. (D) Scheme depicting experimental setup for data shown in (E) and (F). (E) Intravenous injection of Ccncfl/fl and CcncΔ/Δ BCR::ABL1p185+ cells into NSG mice (N=9-10/genotype, 3 independent cell lines per genotype were injected, data pooled from 2 independent experiments). Survival of recipient mice was monitored for up to a maximum of 224-281 days in case of absent disease symptoms. Median survival of mice receiving Ccncfl/fl injections was 23 days; survival of the only diseased mouse in the CcncΔ/Δ cohort (high-lighted turquoise) was 54 days. Black triangles indicate time points at which mice were eliminated without appearance of disease symptoms. Level of significance was calculated using log rank (Mantel-Cox) test. (F) Flow cytometric analysis of bone marrow (BM) infiltration in mice receiving Ccncfl/fl and CcncΔ/Δ BCR::ABL1p185+ injections as depicted in (D) and (E). Graph shows mean ± Standard Deviation. Level of significance was calculated using Mann-Whitney U test. ****P<0.0001.

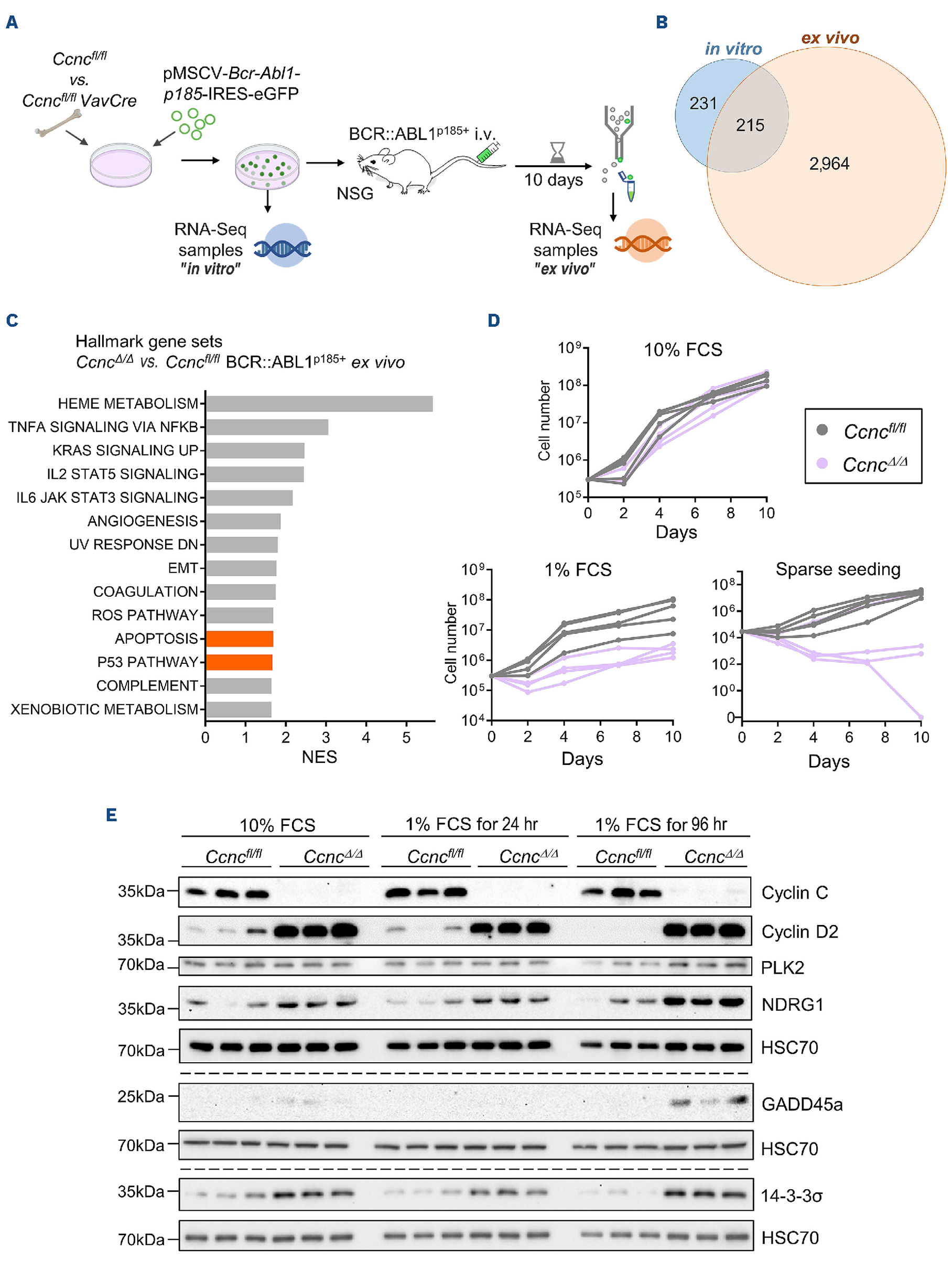

Figure 5.Cyclin C represses p53 responses in transformed cells. (A) Scheme depicting experimental setup for RNA sequencing (RNA-Seq) analyzed in (B) and (C). Bone marrow (BM) from Ccncfl/fl and Ccncfl/fl VavCre mice was isolated and infected with retrovirus encoding BCR::ABL1p185 to generate stable cell lines (“in vitro” samples) which were intravenously (i.v.) injected into NSG mice and retrieved from bone marrow of recipient mice ten days later (“ex vivo” samples). (B) Venn Diagram showing the number of differentially expressed genes (Benjamini-Hochberg adjusted P value <0.1) in CcncΔ/Δ versus Ccncfl/fl BCR::ABL1p185+ cells in vitro (blue) and ex vivo (orange). Intersecting area shows the overlap between the in vitro and ex vivo datasets. (C) Significantly upregulated hallmark gene sets (normalized enrichment score >1, false discovery rate <0.2, P<0.05) from Gene Set Enrichment Analysis (GSEA) of ex vivo derived CcncΔ/Δ versus Ccncfl/fl BCR::ABL1p185+ cells which were not significantly enriched in cyclin C-deficient BCR::ABL1p185+ cell lines in vitro. (D) In vitro proliferation of Ccncfl/fl and CcncΔ/Δ BCR::ABL1p185+ cells in standard culture conditions: medium supplemented with 10% fetal calf serum (FCS) (top), after reducing FCS to 1% (bottom left) and in reduced cell density (bottom right) (N=4-5 cell lines / genotype). (E) Immunoblot analysis of stable Ccncfl/fl and CcncΔ/Δ BCR::ABL1p185+ cell lines (N=3 per genotype) in standard culture medium (10% FCS) and after reducing FCS to 1% for 24 hours (hr) and 96 hr. Levels of cyclin C, cyclin D2, PLK2, NDRG1, GADD45a and 14-3-3σ (Sfn) were assessed on 3 separate immunoblots with the same lysates. HSC70 served as loading control. EMT: epithelial-mesenchymal transition; ROS: reactive oxygen species.
We next conducted a thorough analysis of RNA-Seq data from leukemia patients, revealing elevated CCNC levels in different hematologic malignancies, including BCP-ALL (Online Supplementary Figure S7C). Further examination of different BCP-ALL subtypes showed that cyclin C is over-expressed in all studied subclasses (Figure 7A). Notably, there was no upregulation observed in myeloid leukemia patient samples, and cell lines of myeloid origin were not among the significantly enriched lineages for CCNC in the DepMap CRISPR / Cas9 knock-out screen (Figure 1B). To confirm this, we performed a colony formation assay using the BCR::ABL1p210 oncogene, detecting no significant differences in myeloid colony growth and affirming no dependency on cyclin C in CML (Online Supplementary Figure S7D). Conversely, 5 out of 6 Ph- human B-lymphoblastic cell lines with intact p53 analyzed in the DepMap screen exhibited a dependency on CCNC (Figure 7B).
Subsequently, we employed CRISPR / Cas9 to target CCNC in the Ph- human BCP-ALL cell line, NALM-6. This resulted in a notable reduction in outgrowing single cell clones with guide RNA #1 and #2 (Figure 7C, D). Despite an initial cyclin C reduction in the bulk cell culture, we were unable to generate cyclin C knock-out single cell clones after screening over 100 clones from 3 individual approaches. Moreover, continuous culture of the bulk cells following the knockout approach resulted in the outgrowth of wild-type cells. This indicates that B-ALL cell lines are not compatible with cyclin C deficiency, and the few remaining clones that survive the initial knockout have a proliferation or survival disadvantage.
To further assess the impact of cyclin C levels on disease outcome in human patients, we compared the EFS of pediatric BCP-ALL patients with high versus low CCNC expression. Above-median CCNC levels were associated with a significant decrease in EFS probability (Figure 7E). High CCNC expression was particularly associated with early relapse / death in patients who had already reached remission after induction therapy (Figure 7F).
In summary, our data show that cyclin C is important for the transformation and maintenance of BCR::ABL1p185+ leukemia, and cyclin C deficiency precludes leukemia development in vivo. This is in line with our analysis of human data sets showing a reliance of B-cell malignancies on cyclin C and increased risk of disease recurrence in BCP-ALL patients with high levels of CCNC.
Discussion
Cyclin C is a multifaceted protein with functions in transcriptional regulation and mitochondrial fragmentation. Its impact on oncogenesis is intricate and context-dependent. Found on chromosome 6q21, a segment frequently deleted in cancer,37 cyclin C may act as tumor suppressor or promoter. We here add a novel angle to the story by showing that in Ph+ B-ALL, cyclin C acts as an oncogene by suppressing p53 responses.
Cyclin C deficient BCR::ABL1+ cells lines can be established in vitro, albeit to a lesser extent, but are incapable of eliciting disease in vivo, which indicates a function of cyclin C in cellular adaptation and reaction to environmental stress. Similar to its oncogenic role, cyclin C involvement in regulating stress response seems highly fine-tuned to the type of cell and stressor, influencing signaling pathways for either cell death or survival. Absence of cyclin C inhibits stress-mediated mitochondrial fission and cell death responses in yeast and mouse embryonic fibroblast (MEF) cells.17,38 On the other hand, studies in yeast have highlighted cyclin C degradation via the ubiquitin-proteasome system following unfavorable environmental cues prior to nuclear release, thereby eliciting survival signals.39 In MEF cells, oxidative stress or mTOR inhibition cause distinct changes in CKM promoter occupancy to fine-tune the transcriptional stress reponse.32 Adding another layer of complexity, cyclin C has been reported to play a role at different stages of the cell cycle by phosphorylating Rb and regulating E2F-dependent transcription factor activity.8,16,40 There are limited data available on the regulation of cyclin C expression itself, except that it is induced by various mitogenic signals such as vitamin D and IL-3.41,42 We now show that cyclin C is vital for leukemic transformation and stress-adaptive responses in B-ALL. Cyclin C deficient BCR::ABL1+ cells display restricted transformation and immortalization. The outgrowth of fewer transformed clones suggests the presence of compensatory mechanisms in the surviving CcncΔ/Δ BCR::ABL1p185+ cells, which could be explored in future studies. Nonetheless, these cyclin C-deficient cells continue to display impaired stress adaptation even in their already transformed state (e.g., serum starvation, low cell density, and upon transfer into immunocompromised mice). This concept is supported by the RNA-Seq results showing a significant upregulation of the p53 and apoptosis pathways in CcncΔ/Δ BCR::ABL1p185+ cells in vivo. The importance of the p53 pathway in stress responses is well established. Upon sensing stress, p53 regulates the expression of genes involved in diverse cellular processes, including DNA repair, cell cycle arrest and apoptosis, and prevents the propagation of damaged or compromised cells that could contribute to tumorigenesis or other abnormalities.43 GADD45a and PLK2, amongst our top hits in the p53 pathway, are known anti-oncogenic stress sensors.33,35,36 in vitro, their increased expression in CcncΔ/Δ BCR::ABL1p185+ cells was not as pronounced as in vivo, possibly masked by optimal growth conditions. However, after introducing additional stress through a cell density or nutrient reduction in vitro, cyclin C ablation again caused significantly enhanced expression of the p53 pathway genes. The upregulation of several p53 pathway genes was also validated at the protein level. Their significance was further demonstrated by knock-out experiments, showing that loss of individual p53 targets partially rescued the impaired proliferation of cyclin C-deficient leukemic cells under stress. The enhanced p53 activity observed in CcncΔ/Δ BCR::ABL1p185+ cells under stress could thus at least partly explain why cyclin C deficiency is particularly harmful for leukemic cells during early transformation and in the absence of optimal growth conditions.
Figure 6.Disruption of functional p53 signaling restores the leukemogenicity of cyclin C-deficient BCR::ABL1p185+ cells. (A) In vitro proliferation of Ccncfl/fl and CcncΔ/Δ BCR::ABL1p185+ cells six days after direct delivery of a ribonucleoprotein (RNP) complex consisting of Cas9 enzyme and guide RNA targeting Gadd45a, Sfn or Plk2. A non-targeting control (sgNTC) and mock treated cells (-) served as controls. Growth curves were performed in technical duplicates in standard culture conditions: medium supplemented with 10% fetal calf serum (FCS) (top), with lowered FCS reduced to 1% (bottom left) or reduced cell density (bottom right). Graphs show mean ± Standard Deviation. Levels of significance were determined by one-way ANOVA followed by Dunnett’s test comparing log-transformed counts from day 6 post seeding with sgNTC as control group for Ccncfl/fl and CcncΔ/Δ BCR::ABL1p185+ cells, respectively. (B) Immunoblot analysis showing levels of cyclin C and p53 in spleen infiltrating BCR::ABL1p185+ cells of diseased mice from experiment shown in Figure 4E. HSC70 served as loading control. (C) Kaplan-Meier plot of NSG mice after intravenous injection of Ccncfl/fl and CcncΔ/Δ BCR::ABL1p185+ cells carrying spontaneous mutations in the DNA binding domain of p53 (p53mut) (N=4 per genotype, median survival 16 vs. 18 days). (D) Stable Ccncfl/fl and CcncΔ/Δ BCR::ABL1p185+ cell lines were infected with retrovirus encoding dominant negative p53 (dn p53), intravenously injected into NSG mice and survival was monitored: 2 independent cell lines per genotype were used, N=5 mice were injected with Ccncfl/fl + dn p53 and N=5 received CcncΔ/Δ + dn p53 BCR::ABL1p185+ cells; median survival 20 vs. 22 days. Levels of significance were determined using (C and D) log rank (Mantel-Cox) test . *P<0.05, **P<0.01, ***P<0.001.
Disruption of the p53 pathway through a genomic Tp53 mutation or via introduction of dn p53 restored the leukemic potential of CcncΔ/Δ BCR::ABL1p185+ cells. While p53 mutations are more common in many solid tumors, aberrations of TP53 in B-ALL increase with age and upon relapse, and are associated with poor prognosis.44,45
Based on our findings, cyclin C emerges as a potential new therapeutic target for B-ALL. While transformation and mechanistic studies were only conducted in BCR::ABL1p185+ cell lines, we also provide supporting evidence that cyclin C plays an essential role for Ph- B-ALL (Figures 1, 7), suggesting that our findings are broadly relevant to B-ALL. The essential role of cyclin C in B-ALL, but not in normal B-cell development, may stem from its overexpression and critical involvement in promoting oncogene-driven proliferation and survival in leukemic cells. This dependency creates synthetic lethal vulnerabilities which might be therapeutically exploited, offering a promising avenue for selectively targeting B-ALL cells. However, targeting molecules like cyclin C, given their intracellular location, lack of kinase activity, and complex protein interactions, has been challenging. In addition, caution must be exercised due to potential detrimental effects on the heart.46 Proteolysis-targeting chimeras (PROTAC) are small molecule compounds that can selectively degrade previously undruggable molecules. PROTAC offer high specificity, and strategies to additionally increase their safety profile include selective, cell-type-specific PROTAC delivery using nanoparticle delivery systems or antibody-PROTAC conjugates which could enable B-cell-specific targeting.47 Loss of cyclin C renders B-ALL cells more vulnerable to stress, suggesting it as an interesting target for combination therapies as it may allow sensitization of cancer cells, for example, to chemotherapy or radiotherapy. In silico analysis of pediatric BCP-ALL patients supports this notion: cyclin C expression is associated with decreased EFS, and high CCNC levels show a particularly strong correlation with early disease recurrence in systematically treated patients. This suggests that cyclin C could compromise the prolonged efficacy of systemic therapy in patients who have achieved remission, and that additional targeting of cyclin C might provide synergistic effects. Successful cyclin-degrading compounds have been previously developed and tested.48,49 Developing degraders specifically targeting cyclin C and further studying its role in various tumor entities is, therefore, of high interest.
Figure 7.Cyclin C as a potential new target for B-cell acute lymphoblastic leukemia treatment. (A) Gene expression profile of CCNC in control (bone marrow [BM] mononuclear cells, N=56) versus primary B-cell precursor acute lymphoblastic leukemia (BCP-ALL) samples (N=362), presented as violin plot. Sample size per subtype: BCR::ABL1: N=97; BCR::ABL1-like: N=51; ETV6::RUNX1: N=6; KMT2A rear: N=56; ZNF384 rear: N=20; low hypodiploid: N=45; high hyperdiploid: N=17; near haploid: N=2; TCF3::PBX1: N=6; DUX4 rear: N=22; PAX5 P80R: N=14; PAX5alt: N=10: BCL2/MYC: N=4; CDX2/UBTF: N=7; NUTM1 rear: N=2; ZEB2/CEBP: N=3. (B) Analysis of 12 human B-lymphoblastic leukemia / lymphoma cell lines showing p53 status and dependency probabilities for CCNC from a genome-wide CRISPR/Cas9 knock-out screen (DepMap Public 23Q2+Score, Chronos). Cell lines with dependency probabilities >0.5 are considered dependent. (C) Immunoblot showing cyclin C levels in bulk cell culture after CRISPR/Cas9 mediated targeting of cyclin C in NALM-6 cells. Three different guide RNA targeting cyclin C (sgCCNC) were used, guide RNA targeting HPRT1 served as control (Ctrl). HSC70 was used as loading control. (D) Bulk cell lines depicted in (E) were single cell sorted using a BD FACSAria III cell sorter and outgrowth of single cell clones was monitored. One representative result is shown; a similar result was obtained using limiting dilution to generate monoclonal cell lines. (E) Probability of event-free survival (EFS) in pediatric BCP-ALL patients with high versus low CCNC expression. The high / low CCNC cut-off was based on median expression among BCP-ALL samples in cohort. Death in induction, death, relapse, non-response, and secondary malignancy were counted as events for EFS. (F) Proportion of pediatric BCP-ALL patients who reached remission after induction treatment, but for which an event (relapse / death) was reported prior to 36 months. Error bars represent 95% Confidence Interval calculated using the adjusted Wald method. Levels of significance were determined using (E) log rank (Mantel-Cox) test and (F) Fisher’s exact test. ****P<0.0001.
Footnotes
- Received April 18, 2024
- Accepted September 30, 2024
Correspondence
Disclosures
PS has been a consultant at Novartis, Genovis, Guidepoint, The Planning Shop, ORIC Pharmaceuticals, Cedilla Therapeutics, Syros Pharmaceuticals, Blueprint Medicines, Curie Bio, Differentiated Therapeutics, Excientia, Ligature Therapeutics, Merck, Redesign Science, Sibylla Biotech, and Exo Therapeutics; his laboratory receives research funding from Novartis. GHo and WW are employed by MLL Munich Leukemia Laboratory.
Funding
This work was funded by the Austrian Science Fund (FWF) doc.funds DOC 32-B28 (grant DOI: 10.55776/DOC32), the Special Research Program SFB-F6107 (grant DOI: 10.55776/ F61), the PhD program “Inflammation and Immunity” FWF W1212, the FWF ZK-81B (grant DOI: 10.55776/ZK81) and by R01CA269285 (to PS). KK was supported by a DOC Fellowship of the Austrian Academy of Sciences at the University of Veterinary Medicine. The LLF lab is supported by AIRC (MFAG 2019 - ID 23560 project). For open access purposes, the author has applied a CC BY public copyright license to any author-accepted manuscript version arising from this submission. In addition, the project was supported by the University of Veterinary Medicine, Vienna, Austria.
Acknowledgments
We want to thank Sabine Fajmann, Petra Kudweis, Philipp Jodl, Alessia Mattivi and Michaela Ensfelder-Koperek for much-appreciated technical support. We are indebted to our animal caretaker team. For valuable scientific discussions and conceptional input, we want to thank Thomas Decker, Karl Kuchler, Birgit Strobl, Vanessa Maria Knab, Sebastian Kollmann and Andrea Hölbl.
References
- Groffen J, Stephenson JR, Heisterkamp N, de Klein A, Bartram CR, Grosveld G. Philadelphia chromosomal breakpoints are clustered within a limited region, bcr, on chromosome 22. Cell. 1984; 36(1):93-99. https://doi.org/10.1016/0092-8674(84)90077-1|PubMed|Google Scholar
- Pui CH, Jeha S. New therapeutic strategies for the treatment of acute lymphoblastic leukaemia. Nat Rev Drug Discov. 2007; 6(2):149-165. https://doi.org/10.1038/nrd2240|PubMed|Google Scholar
- Quintás-Cardama A, Kantarjian H, Cortes J. Flying under the radar: the new wave of BCR-ABL inhibitors. Nat Rev Drug Discov. 2007; 6(10):834-848. https://doi.org/10.1038/nrd2324|PubMed|Google Scholar
- Lee H, Basso IN, Kim DDH. Target spectrum of the BCR-ABL tyrosine kinase inhibitors in chronic myeloid leukemia. Int J Hematol. 2021; 113(5):632-641. https://doi.org/10.1007/s12185-021-03126-6|PubMed|Google Scholar
- Yang K, Fu L-W. Mechanisms of resistance to BCR-ABL TKIs and the therapeutic strategies: a review. Crit Rev Oncol Hematol. 2015; 93(3):277-292. https://doi.org/10.1016/j.critrevonc.2014.11.001|PubMed|Google Scholar
- Lim S, Kaldis P. Cdks, cyclins and CKIs: roles beyond cell cycle regulation. Development. 2013; 140(15):3079-3093. https://doi.org/10.1242/dev.091744|PubMed|Google Scholar
- Asghar U, Witkiewicz AK, Turner NC, Knudsen ES. The history and future of targeting cyclin-dependent kinases in cancer therapy. Nat Rev Drug Discov. 2015; 14(2):130-146. https://doi.org/10.1038/nrd4504|PubMed|PubMed Central|Google Scholar
- Li N, Fassl A, Chick J. Cyclin C is a haploinsufficient tumour suppressor. Nat Cell Biol. 2014; 16(11):1080-1091. https://doi.org/10.1038/ncb3046|PubMed|PubMed Central|Google Scholar
- Westerling T, Kuuluvainen E, Mäkelä TP. Cdk8 is essential for preimplantation mouse development. Mol Cell Biol. 2007; 27(17):6177-6182. https://doi.org/10.1128/MCB.01302-06|PubMed|PubMed Central|Google Scholar
- Menzl I, Zhang T, Berger-Becvar A. A kinase-independent role for CDK8 in BCR-ABL1+ leukemia. Nat Commun. 2019; 10(1):4741. https://doi.org/10.1038/s41467-019-12656-x|PubMed|PubMed Central|Google Scholar
- Meyer KD, Donner AJ, Knuesel MT, York AG, Espinosa JM, Taatjes DJ. Cooperative activity of cdk8 and GCN5L within Mediator directs tandem phosphoacetylation of histone H3. EMBO J. 2008; 27(10):1447-1457. https://doi.org/10.1038/emboj.2008.78|PubMed|PubMed Central|Google Scholar
- Fryer CJ, White JB, Jones KA. Mastermind recruits CycC:CDK8 to phosphorylate the Notch ICD and coordinate activation with turnover. Mol Cell. 2004; 16(4):509-520. https://doi.org/10.1016/j.molcel.2004.10.014|PubMed|Google Scholar
- Bancerek J, Poss ZC, Steinparzer I. CDK8 kinase phosphorylates transcription factor STAT1 to selectively regulate the interferon response. Immunity. 2013; 38(2):250-262. https://doi.org/10.1016/j.immuni.2012.10.017|PubMed|PubMed Central|Google Scholar
- Alarcón C, Zaromytidou AI, Xi Q. Nuclear CDKs drive Smad transcriptional activation and turnover in BMP and TGF-β pathways. Cell. 2009; 139(4):757-769. https://doi.org/10.1016/j.cell.2009.09.035|PubMed|PubMed Central|Google Scholar
- Soutourina J. Transcription regulation by the Mediator complex. Nat Rev Mol Cell Biol. 2018; 19(4):262-274. https://doi.org/10.1038/nrm.2017.115|PubMed|Google Scholar
- Ren S, Rollins BJ. Cyclin C/Cdk3 promotes Rb-dependent G0 exit. Cell. 2004; 117(2):239-251. https://doi.org/10.1016/S0092-8674(04)00300-9|PubMed|Google Scholar
- Wang K, Yan R, Cooper KF, Strich R. Cyclin C mediates stress-induced mitochondrial fission and apoptosis. Mol Biol Cell. 2015; 26(6):1030-1043. https://doi.org/10.1091/mbc.E14-08-1315|PubMed|PubMed Central|Google Scholar
- Jezek J, Chang K, Joshi AM, Strich R. Mitochondrial translocation of cyclin C stimulates intrinsic apoptosis through Bax recruitment. EMBO Rep. 2019; 20(9):e47425. https://doi.org/10.15252/embr.201847425|PubMed|PubMed Central|Google Scholar
- Ohata N, Ito S, Yoshida A. Highly frequent allelic loss of chromosome 6q16-23 in osteosarcoma: involvement of cyclin C in osteosarcoma. Int J Mol Med. 2006; 18(6):1153-1158. https://doi.org/10.3892/ijmm.18.6.1153|Google Scholar
- Jezek J, Wang K, Yan R, Di Cristofano A, Cooper KF, Strich R. Synergistic repression of thyroid hyperplasia by cyclin C and Pten. J Cell Sci. 2019; 132(6)https://doi.org/10.1242/jcs.230029|PubMed|PubMed Central|Google Scholar
- Bondi J, Husdal A, Bukholm G, Nesland JM, Bakka A, Bukholm IRK. Expression and gene amplification of primary (A, B1, D1, D3, and E) and secondary (C and H) cyclins in colon adenocarcinomas and correlation with patient outcome. J Clin Pathol. 2005; 58(5):509-514. https://doi.org/10.1136/jcp.2004.020347|PubMed|PubMed Central|Google Scholar
- Broude E, Gyorffy B, Chumanevich A. Expression of CDK8 and CDK8-interacting genes as potential biomarkers in breast cancer. Curr Cancer Drug Targets. 2015; 15(8):739-749. https://doi.org/10.2174/156800961508151001105814|PubMed|PubMed Central|Google Scholar
- Porter DC, Farmaki E, Altilia S. Cyclin-dependent kinase 8 mediates chemotherapy-induced tumor-promoting paracrine activities. Proc Natl Acad Sci. 2012; 109(34):13799-13804. https://doi.org/10.1073/pnas.1206906109|PubMed|PubMed Central|Google Scholar
- Walter W, Shahswar R, Stengel A. Clinical application of whole transcriptome sequencing for the classification of patients with acute lymphoblastic leukemia. BMC Cancer. 2021; 21(1):886. https://doi.org/10.1186/s12885-021-08635-5|PubMed|PubMed Central|Google Scholar
- Robinson MD, Oshlack A. A scaling normalization method for differential expression analysis of RNA-seq data. Genome Biol. 2010; 11(3):R25. https://doi.org/10.1186/gb-2010-11-3-r25|PubMed|PubMed Central|Google Scholar
- van der Veer A, Waanders E, Pieters R. Independent prognostic value of BCR-ABL1-like signature and IKZF1 deletion, but not high CRLF2 expression, in children with B-cell precursor ALL. Blood. 2013; 122(15):2622-2629. https://doi.org/10.1182/blood-2012-10-462358|PubMed|PubMed Central|Google Scholar
- Huber W, von Heydebreck A, Sültmann H, Poustka A, Vingron M. Variance stabilization applied to microarray data calibration and to the quantification of differential expression. Bioinformatics. 2002; 18(Suppl 1):S96-S104. https://doi.org/10.1093/bioinformatics/18.suppl_1.S96|PubMed|Google Scholar
- Polak R, Bierings MB, van der Leije CS. Autophagy inhibition as a potential future targeted therapy for ETV6-RUNX1-driven B-cell precursor acute lymphoblastic leukemia. Haematologica. 2019; 104(4):738-748. https://doi.org/10.3324/haematol.2018.193631|PubMed|PubMed Central|Google Scholar
- Georgiades P, Ogilvy S, Duval H. VavCre transgenic mice: a tool for mutagenesis in hematopoietic and endothelial lineages. Genesis. 2002; 34(4):251-256. https://doi.org/10.1002/gene.10161|PubMed|Google Scholar
- Mrózek K, Harper DP, Aplan PD. Cytogenetics and molecular genetics of acute lymphoblastic leukemia. Hematol Oncol Clin North Am. 2009; 23(5):991-1010. https://doi.org/10.1016/j.hoc.2009.07.001|PubMed|PubMed Central|Google Scholar
- Hanahan D, Weinberg RA. Hallmarks of cancer: the next generation. Cell. 2011; 144(5):646-674. https://doi.org/10.1016/j.cell.2011.02.013|PubMed|Google Scholar
- Stieg DC, Cooper KF, Strich R. The extent of cyclin C promoter occupancy directs changes in stress-dependent transcription. J Biol Chem. 2020; 295(48):16280-16291. https://doi.org/10.1074/jbc.RA120.015215|PubMed|PubMed Central|Google Scholar
- Liebermann DA, Tront JS, Sha X, Mukherjee K, Alisha-Mohamed-Hadley Hoffman B. Gadd45 stress sensors in malignancy and leukemia. Crit Rev Oncog. 2011; 16(1-2):129-140. https://doi.org/10.1615/CritRevOncog.v16.i1-2.120|PubMed|PubMed Central|Google Scholar
- Rizzotto D, Englmaier L, Villunger A. At a crossroads to cancer: how p53-induced cell fate decisions secure genome integrity. Int J Mol Sci. 2021; 22(19):10883. https://doi.org/10.3390/ijms221910883|PubMed|PubMed Central|Google Scholar
- Eckerdt F, Yuan J, Strebhardt K. Polo-like kinases and oncogenesis. Oncogene. 2005; 24(2):267-276. https://doi.org/10.1038/sj.onc.1208273|PubMed|Google Scholar
- Syed N, Smith P, Sullivan A. Transcriptional silencing of Polo-like kinase 2 (SNK/PLK2) is a frequent event in B-cell malignancies. Blood. 2006; 107(1):250-256. https://doi.org/10.1182/blood-2005-03-1194|PubMed|Google Scholar
- Li H, Lahti JM, Valentine M. Molecular cloning and chromosomal localization of the human cyclin C (CCNC) and cyclin E (CCNE) genes: deletion of the CCNC gene in human tumors. Genomics. 1996; 32(2):253-259. https://doi.org/10.1006/geno.1996.0112|PubMed|Google Scholar
- Strich R, Cooper KF. The dual role of cyclin C connects stress regulated gene expression to mitochondrial dynamics. Microb Cell. 2014; 1(10):318-324. https://doi.org/10.15698/mic2014.10.169|PubMed|PubMed Central|Google Scholar
- Willis SD, Hanley SE, Beishke T, Tati PD, Cooper KF. Ubiquitin-proteasome-mediated cyclin C degradation promotes cell survival following nitrogen starvation. Mol Biol Cell. 2020; 31(10):1015-1031. https://doi.org/10.1091/mbc.E19-11-0622|PubMed|PubMed Central|Google Scholar
- Trakala M, Malumbres M. Cyclin C surprises in tumour suppression. Nat Cell Biol. 2014; 16(11):1031-1033. https://doi.org/10.1038/ncb3055|PubMed|Google Scholar
- Sinkkonen L, Malinen M, Saavalainen K, Väisänen S, Carlberg C. Regulation of the human cyclin C gene via multiple vitamin D3-responsive regions in its promoter. Nucleic Acids Res. 2005; 33(8):2440-2451. https://doi.org/10.1093/nar/gki502|PubMed|PubMed Central|Google Scholar
- Liu Z-J, Ueda T, Miyazaki T. A critical role for cyclin C in promotion of the hematopoietic cell cycle by cooperation with c-Myc. Mol Cell Biol. 1998; 18(6):3445-3454. https://doi.org/10.1128/MCB.18.6.3445|PubMed|PubMed Central|Google Scholar
- Oren M. Decision making by p53: life, death and cancer. Cell Death Differ. 2003; 10(4):431-442. https://doi.org/10.1038/sj.cdd.4401183|PubMed|Google Scholar
- Salmoiraghi S, Montalvo MLG, Ubiali G. Mutations of TP53 gene in adult acute lymphoblastic leukemia at diagnosis do not affect the achievement of hematologic response but correlate with early relapse and very poor survival. Haematologica. 2016; 101(6):e245-e248. https://doi.org/10.3324/haematol.2015.137059|PubMed|PubMed Central|Google Scholar
- Stengel A, Schnittger S, Weissmann S. TP53 mutations occur in 15.7% of ALL and are associated with MYC-rearrangement, low hypodiploidy, and a poor prognosis. Blood. 2014; 124(2):251-258. https://doi.org/10.1182/blood-2014-02-558833|PubMed|Google Scholar
- Ponce JM, Coen G, Spitler KM. Stress-induced cyclin c translocation regulates cardiac mitochondrial dynamics. J Am Heart Assoc. 2020; 9(7):e014366. https://doi.org/10.1161/JAHA.119.014366|PubMed|PubMed Central|Google Scholar
- Békés M, Langley DR, Crews CM. PROTAC targeted protein degraders: the past is prologue. Nat Rev Drug Discov. 2022; 21(3):181-200. https://doi.org/10.1038/s41573-021-00371-6|PubMed|PubMed Central|Google Scholar
- Mayor-Ruiz C, Bauer S, Brand M. Rational discovery of molecular glue degraders via scalable chemical profiling. Nat Chem Biol. 2020; 16(11):1199-1207. https://doi.org/10.1038/s41589-020-0594-x|PubMed|PubMed Central|Google Scholar
- Li J, Liu T, Song Y. Discovery of small-molecule degraders of the CDK9-cyclin T1 complex for targeting transcriptional addiction in prostate cancer. J Med Chem. 2022; 65(16):11034-11057. https://doi.org/10.1021/acs.jmedchem.2c00257|PubMed|Google Scholar
