TAL1 cooperates with PI3K/AKT pathway activation in T-cell acute lymphoblastic leukemia

Abstract

TAL1 is ectopically expressed in about 30% of T-cell acute lymphoblastic leukemia (T-ALL) due to chromosomal rearrangements leading to the STIL-TAL1 fusion genes or due to non-coding mutations leading to a de novo enhancer driving TAL1 expression. Analysis of sequence data from T-ALL cases demonstrates a significant association between TAL1 expression and activating mutations of the PI3K-AKT pathway. We investigated the oncogenic function of TAL1 and the possible cooperation with PI3K-AKT pathway activation using isogenic pro-T-cell cultures ex vivo and in vivo leukemia models. We found that TAL1 on its own suppressed T-cell growth, in part by affecting apoptosis genes, while the combination with AKT pathway activation reduced apoptosis and was strongly driving cell proliferation ex vivo and leukemia development in vivo. As a consequence, we found that TAL1+AKT^E17K transformed cells are more sensitive to PI3K-AKT pathway inhibition compared to AKT^E17K transformed cells, related to the negative effect of TAL1 in the absence of activated PI3K-AKT signaling. We also found that both TAL1 and PI3K-AKT signaling increased the DNA-repair signature in T cells resulting in synergy between PARP and PI3K-AKT pathway inhibition. In conclusion, we have developed a novel mouse model for TAL1+AKT^E17K driven T-ALL development and have identified a vulnerability of these leukemia cells to PI3K-AKT and PARP inhibitors.

Introduction

T-cell acute lymphoblastic leukemia (T-ALL) is an aggressive disease and symptoms are mostly caused by high proliferation of leukemic blasts in the bone marrow, leading to failure of normal hematopoiesis. Treatment of T-ALL remains a challenge. Although children have a good prognosis and a high chance of overall survival, this comes with important treatment toxicity leading to both shortand long-term side effect.¹ Furthermore, adults and children with resistant or relapsed disease are often incurable. Therefore, further understanding of the pathogenesis of T-ALL can lead to identification of new and specific therapeutic targets which can improve the survival and quality of life of these patients.

Based on gene expression profiling and molecular genetic analysis, T-ALL cases were initially classified into five major subgroups.^2,3 Homminga et al. identified an additional subgroup represented by aberrant expression of NKX2-1.⁴ Genomic characterization based on whole-exome sequencing and RNA sequencing on 264 T-ALL samples defined eight different subgroups based on genomic rearrangements and/or ectopic expression of one specific transcription factor: TAL1, TAL2, TLX1, TLX3, HOXA, LMO1/LMO2, LMO2/LYL1 and NKX2-1.⁵ In these classifications, each subgroup correlates to a differentiation arrest at specific stages of normal T-cell development.³

In up to 30% of T-ALL patients TAL1 expression is reactivated via various mechanisms, including translocation, deletion, or non-coding mutations creating a de novo enhancer region close to TAL1.^6,7 TAL1 belongs to the class II basic helix-loop-helix (bHLH) transcription factors which obligatory dimerizes with class I bHLH transcription factors called E proteins (E2A, HEB E and E2-proteins). TAL1 is known to play an important role in the regulation of normal embryonic and adult hematopoiesis, but is silenced during normal T-cell development.⁸

Despite numerous studies on the function of TAL1 and its known transcriptional activities in hematopoietic progenitor cells, the exact mechanism by which TAL1 is implicated in T-ALL development is still poorly characterized. A first transgenic mouse models with TAL1 expression under control of the T-cell specific LCK promotor developed T-cell malignancy with a very long latency and low penetrance,⁹ and TAL1 expression under control of lymphoid specific CD2 promotor did not cause any disease.¹⁰ These findings suggested that additional mutations were needed in addition to TA L1 expression to cause T-cell malignancy. Subsequently, several mouse models were developed that focused on the potential cooperation between TAL1 and LMO1 or LMO2 expression, because coexpression between TAL1 and LMO1 or LMO2 was reported in human T-ALL.¹¹ These models were successful and Larson et al. reported leukemia development in a Tal1/Lmo2 transgenic mice and Tatarak et al. reported rapid development of T-ALL upon thymic expression of Tal1 and Lmo1.^12-13 Moreover, in the majority of the leukemias spontaneous mutations in Notch1 were identified. Tremblay and colleagues generated Notch1/Tal1/Lmo1 triple transgenic mice and reported that these animals developed leukemia with shorter latency compared to single or double transgenic animals.¹⁴ CD4/CD8 double negative cells from Notch1/Tal1/Lmo1 triple transgenic mice were able to induce T-ALL in secondary recipient animals with high efficiency compared with Tal1/Lmo1 double transgenic mice. A subsequent study further suggested that Notch1 drives self-renewal of thymocytes from the Tal1/Lmo1 mouse model via its target genes Hes1 and Myc.¹⁵

However, despite leukemia development in these elegant mouse models, more complete genomic and transcriptomic data on T-ALL have not supported an important role for deregulated LMO1 or LMO2 expression in TAL1 positive T-ALL. In contrast, it has become clear that PTEN deletion and variant mutations leading to PI3K-AKT pathway activation are very common in TAL1 expressing T-ALL, while these are less frequent in the other T-ALL subgroups.^6,16-18 We present here novel in vivo and ex vivo mouse models for TAL1/AKT driven T-ALL development and use these models to identify novel vulnerabilities in these leukemias.

Methods

Laboratory animals and mouse bone marrow transplantation assays

All mice were monitored daily and housed in individually ventilated cages cages in specific pathogen free (SPF) or semi-SPF conditions in the KU Leuven animal facility. Mouse experiments were approved and supervised by the KU Leuven ethical committee (ECD P013/2018).

Bone marrow transplantation was performed with hematopoietic stem/progenitor cells harvested from male rosa26 CD2cre C57BL/6 mice. These cells were transduced with retroviral vectors for expression of the genes of interest, with MSCV-based vectors giving constitutive expression or inducible expression based on inversion of a floxed region in the viral vector as described previously.¹⁹ Cells were injected via tail vein injection into sublethal irradiated (5Gy) female recipients C57BL/6 mice. Leukemia development was followed by blood collection from the facial vein every 2 weeks. Secondary and tertiary transplants were performed through injection of malignant cells via tail vein into irradiated (2.5 Gy) female recipients C57BL/6 mice recipient mice. Mice were sacrificed when white blood cell count was over 25,000/µL, when they lost 10% of initial weight or other signs of severe morbidity.

Primary mouse pro-T-cell cultures

Pro-T cell cultures were established as described.^18,20 Hematopoietic stem and progenitor cells (HSPC) were isolated from Rosa26-CreER knockin or Cas9 knockin transgenic mice. CreER cells have a tamoxifen-inducible Cre-mediated recombination system,²¹ while the Cas9 cells were used to inactivate genes with guide RNA, as described previously.²² Pro-T cells were cultured on DLL4-coated plates in RPMI media containing 20% fetal bovine serum (FBS), primocin (100 µL/mL), IL7 and SCF (both 20 ng/mL). Pro-T cells were spinfected with retroviral constructs. Growth was followed over time by measuring growth density and percentage of fluorescent cells.

Western bloting

Cells were lysed in cold lysis buffer containing 5 mM Na₃VO₄ and protease inhibitors (complete EDTA-free), antibodies used for western blotting: TAL1 (Santa Cruz-393287), p-AKT (CST Ser473 D9E 4060); AKT (Thermo MA5-14916), p-GSK3β (CST 5558), GSK3β (Merck Milipore 05-412), β-Actin (Sigma Aldrich A5441). Secondary antibodies: anti-rabbit IgG (CST 7074), anti-mouse IgG (Cytiva, NA931).

RNA-sequencing and analysis

RNA was extracted from tissue and cells using the Maxwell 16 LEV Simply RNA purification kit (Promega). Next-generation sequencing libraries were constructed from 500 ng of total RNA, using the Truseq RNA sample prep kit v2 (Illumina) and subjected to 150 bp single-end sequencing on a HiSeq 4000 instrument (Illumina). The sequencing data was then processed with our in-house pipeline, which consist of cleaning the data with fastqmcf, performing a quality control with FastQC and mapping to the Mus musculus reference genome (mm10) with HISAT2. Subsequently, htseq-count was applied to count the number of reads per gene and a differential gene expression analysis was performed with the R-package DESeq2. The output of this DESeq2 algorithm was used to construct ranked gene lists with a ranking value calculated as -sign(log₂FC)*log(padj). Ranked gene set enrichment analyses were performed with the BROAD gene set enrichment analysis (GSEA) software. Multiple gene sets were used, such as the KEGG pathway database, the hallmark gene sets from MSigDB, and several in-house gene sets.

Drug treatment experiments

Different T-ALL cell lines (both TAL1 positive and TAL1 negative) were cultured in RPMI containing 20% FBS. For drug treatment, cells were seeded at 1-4x10⁵ cells/mL in 96 well plates (100 µL/well). Pro-T cells were cultured as described above and seeded at 5x10⁵ cells/mL in 96 well plates (100 µL/well). Leukemia mouse thymus cells were cultured ex vivo in RPMI containing 20% FBS with IL7, stem cell factor and primocin and seeded at 3x10³cells/mL in 96 well plates (100 µL/well). Dactoslibib, MK-2206 or dimethyl sulfoxide (Sigma Aldrich), Olaparib (MedChemExpress) were dispensed at the desired concentrations using a Tecan D300e Digital Dispenser. Experiments were performed as biological triplicates. Cell viability was measured after 48 hours (h) (cellines) or 24 h (pro-T cells and thymic cells) of drug treatment with the ATPlite Luminescence Assay System kit (PerkinElmer) on a VICTOR Multilabel Plate Reader (PerkinElmer).

Statistics and other methods

The statistical analysis were performed using Graphad Prism 8. Results were considered statistically significant at P<0.05. The appropriate statistical test are specified in the figure legends. Limiting dilution analysis of mouse leukemia cells was calculated using the free ELDA software (https://bioinf.wehi.edu.au/software/elda/).²³

Results

TAL1-positive T-cell acute lymphoblastic leukemia patients frequently harbor hyperactivating mutation of the PI3K pathway

In order to study the role of TAL1 in T-ALL and its association with other gene expression or mutations, we reanalyzed genomic and transcriptomic data from previous studies. TAL1 expression is high in up to 30% of T-ALL cases due to chromosomal rearrangements (STIL-TAL1 fusion or translocations involving TAL1) or due to non-coding mutations that create a de novo enhancer upstream of the TAL1 promoter (Figure 1A).^5-7 Historically, studies on TAL1 have focused on the cooperation between TAL1 and LMO2 since initial studies reported rearrangement of both TAL1 and LMO2 in (rare) T-ALL samples and TAL1 is regularly co-expressed with LMO1 or LMO2 in TALL cell lines.^24-26 However, recent transcriptomic data from large T-ALL cohorts showed that only a minority of TAL1 positive cases show high expression of LMO1 or LMO2, with only five TAL1 positive cases harboring a genetic alteration of LMO2.^5,27 Overall, expression of LMO1/LMO2 was not significantly different in the TA L1 subgroup compared to other subgroups, indicating that no increased expression of LMO1/LMO2 factors is required in the TAL1 subgroup (Figure 1A).

Interestingly, several studies have indicated that TAL1 positive T-ALL cases often harbor PTEN deletions.^{5,16-17,27-29} We re-analyzed sequencing data from >500 T-ALL patients from Belgian (n=155), Chinese (n=130) and American (n=264) T-ALL cohorts.^5,27,28 In all studies, there was a clear association between TAL1 expression and activating mutations in the PI3K-AKT pathway (Figure 1B). In contrast, mutations in the JAK-STAT and RAS pathways were found to be rare in TA L1 positive T-ALL, but more frequent in the other T-ALL subgroups (Figure 1B).

The Liu et al. study contains the most complete data on mutations, expression and copy number variation and shows that 55% of all TAL1 positive cases harbor an activating mutation in the PI3K-AKT pathway (Figure 1B).⁵ The majority (69%) of these cases have a deletion, frameshift or nonsense mutation in PTEN and other cases have mutations in the PI3K complex or in AKT1 or AKT2 genes. Analysis of the expression data of these cases confirmed increased expression of PI3K-AKT pathway associated genes in the cases with PTEN inactivation or other PI3K-AKT pathway mutations compared to the TAL1-positive cases without such mutations (Figure 1C), indicating stronger PI3K-AKT pathway activation in the TAL1 cases with PI3K-AKT-PTEN mutations compared to the other TAL1-positive cases.

TAL1 cooperates with PI3K activating mutations in driving T-cell acute lymphoblastic leukemia in vivo

Here we used a bone marrow transplant model to determine the oncogenic potency of TAL1 and activated PI3K-AKT signaling (by expressing AKT^E17K, an active AKT mutant) alone or in combination to induce T-ALL development in vivo.

When using a retroviral vector to constitutively express TAL1 together with AKT^E17K in HSPC of C57BL/6 mice, this led to leukemic disease with variable immunophenotype with both myeloid and lymphoid markers (data not shown). In this way, no T-ALL model could be generated and could reflect the fact that we are not targeting the right cell of origin to obtain T-ALL. In order to overcome this problem, we set up a bone marrow transplant assay using our recently developed Cre-inducible retroviral vector in which oncogene expression can be limited to specific cell types when used in combination with transgenic Cre mice (Figure 2A).¹⁹ In order to get lymphoid-restricted expression of the oncogenes, we isolated HSPC from CD2-Cre mice and transduced these cells with the inducible retroviral vectors containing TAL1 or AKT^E17K or TAL1+AKT^E17K. The transduced cells were injected in sub-lethally irradiated wild-type recipient mice to follow disease development over time (Figure 2A).

Figure 1.Aberrant expression of TAL1 co-occurs with PI3K pathway mutations in T-cell acute lymphoblastic leukemia patients. (A) Violin plots showing expression of TAL1, LMO2 and LMO1 in different T-cell acute lymphoblastic leukemia (T-ALL) patient subgroups (Mullighan data set). (B) Distribution of hyperactivation of signaling pathways in TAL1 and non-TAL1 subgroups in two patient cohorts: (USA) Liu data set 87/264 (33%) and (China) Chen data set 56/130 (43%). Using Fisher’s exact test, P-values were calculated for testing significance of positive association between TAL1 subgroup and hyperactivation of different pathways. (C) Gene set enrichment analysis showing significant positive enrichment of PI3K pathway in TAL1 patients harboring PI3K-AKT-mTOR pathway mutation compared to TAL1 pathways without associated mutations.

Transplantation of TAL1-transduced cells did not cause any disease. In contrast, transplantation of cells expressing AKT^E17K alone caused T-cell lymphoblastic lymphoma with an average latency of 83 days (Figure 2B). Expression of TAL1+AKT^E17K also caused T-cell lymphoblastic lymphoma with a similar latency as AKT^E17K alone (average 89 days). These animals did not show elevated white blood cell count and almost no mice had infiltration of peripheral organs such as blood, spleen, liver and bone marrow (Figure 2C and D; Online Supplementary Figure S1). Sporadically, mice had infiltration of leukemic cells in the spleen and bone marrow, but always below 20%. The lymphoma cells were late cortical stage (CD4⁺CD8⁺) T cells in both conditions and the disease was oligoclonal as determined by expression of a limited set of variable regions of the T-cell receptors α and β (Online Supplementary Figure S2).

Despite the similar disease latency, there were marked differences between TAL1+AKT^E17K and AKT^E17K driven lymphoma. TAL1 expression was confirmed at protein level in lymphoma cells of TAL1+AKT^E17K mice (Figure 2E). Lymphoma cells of the TAL1+AKT^E17K condition expressed CD25, a marker of activated T cells, which was absent in AKT^E17K lymphoma cells (Figure 2F). Moreover, TAL1+AKT^E17K cells showed increased expression of TRIB2, a gene known to be implicated in TAL1 positive T-ALL,³⁰ as well as of IKZF2 and LMO4 (Figure 2G).

Strikingly, only the TAL1+AKT^E17K lymphoma cells were transplantable to secondary mice and caused leukemia with leukocytosis in secondary recipients, while the AKT^E17K lymphoma cells were not transplantable (Figure 3A). Immunophenotype in the secondary recipients was again CD4⁺CD8⁺, and white blood cell counts were now elevated in all secondary recipients of TAL1+AKT^E17K transformed cells (Figure 3B to D). These data indicate that AKT pathway activation in lymphoid progenitor cells is sufficient to activate proliferation and survival pathways, but that TAL1 expression is required to induce more stem cell properties. TAL1+AKT^E17K lymphoma cells were transplant-able to secondary mice even when only 50,000 cells were transplanted, but only rarely when 25,000 cells were transplanted, resulting in an estimate of 1/40,000 leukemia initiating cells (LIC).

Figure 2.TAL1 expression and PI3K-AKT activating mutations cooperate in driving T-cell malignancies. (A) Scheme of bone marrow transplantation set-up. We used inducible vectors (indicated as ‘i’) with constructs of interest initially cloned in antisense orientation flanked by two inverted loxP sites. Hematopoietic stem and progenitor cells (HSPC) were isolated from the bone marrow of CD2-Cre donor mice, followed by retroviral transduction with empty vector (EV), inducible TAL1, inducible AKT^E17K or inducible TAL1+AKT^E17K. HSPC were checked for transduction efficiencies (based on green fluorescent protein [GFP] that is always expressed; blue fluorescent proteinn [BFP] only becomes expressed in lymphoid cells) but were not sorted prior to injection into irradiated recipient mice. (B) Survival plot showing disease-free survival (DFS) of mice which were primary transplanted with above mentioned constructs P-values were calculated with Gehan-Breslow-Wilcoxon test. (C and D) Plots showing thymus weight (C) and white blood cell (D) count at time of sacrifice. P-values were calculated using the one-way ANOVA with Tukey correction to account for multiple comparisons. (E) Protein expression of TAL1 and PI3K pathway components in thymus’ cells of sacrificed mice. (F) Flow cytometry analysis of bone marrow and thymus at time of sacrifice- BFP y-axis; GFP x-axis. Thymus lymphoma cells of AKT^E17K mice (BFP + GFP double positive) and TAL1+AKT^E17K (GFP only) were stained for CD8 (APC-eFluor 780, X-axis) and CD4 (PE-Cy7, Y axis) and stained for CD25 (APC, X-axis) and CD44 (PerCP-Cy5, Y-axis). (G) Violin plots showing expression of Trib2, Ikzf2 and Lmo4 in lymphoma cells of AKT^E17K and TAL1-AKT^E17K mice. P-values were calculated using unpaired t-test.

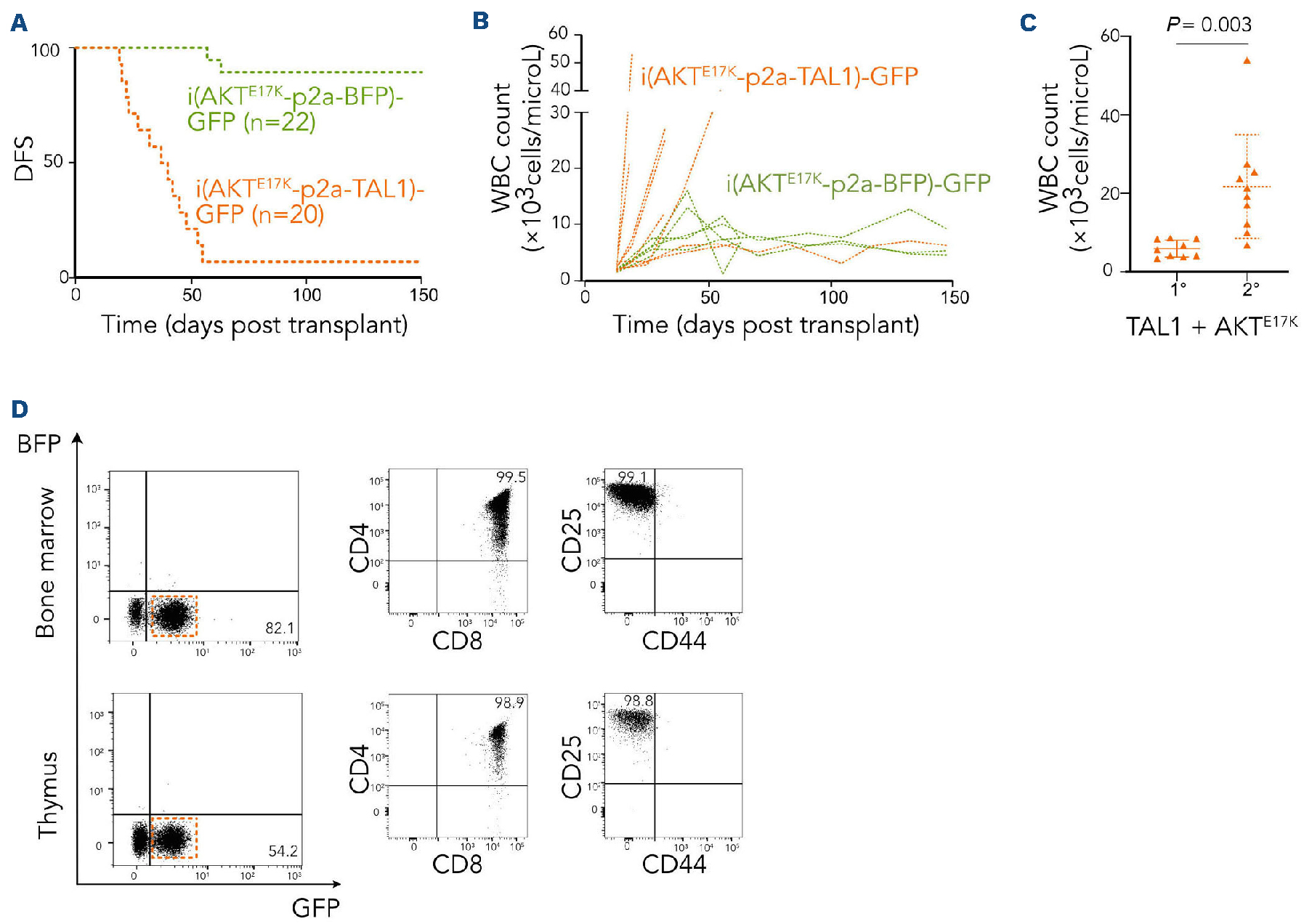

Figure 3.TAL1-AKT^E17K malignant cells are transplantable. (A) Survival plot showing disease-free survival (DFS) of secondary recipient mice transplanted with thymic lymphoma cells of the primary mouse models. P-value was calculated with Gehan-Breslow-Wilcoxon test. (B) White blood cell count of secondary transplanted mice followed over time. (C) White blood cell count of TAL1-AKT^E17K mice: primary transplantation compared to secondary transplantation. P-value was calculated using unpaired t-test. (D) Flow cytometry analysis of peripheral blood, bone marrow, spleen and thymus of secondary transplanted mice (m133 - primary m119). Green fluorescent protein (GFP)-positive cells were stained as in Figure 2F

Expression of TAL1 in pro-T cells leads to growth disadvantage which can be rescued by AKTE17K or Ptendel

In order to study the effects of TA L1 with and without co-expression of AKT^E17K we used ex vivo mouse pro-T-cell cultures in which TA L1 expression could be induced at a specific time point. For this, pro-T cells were derived from CreER-recombinase transgenic mice and cultured in the presence of Scf, Il7 and immobilized Dll4, as described previously¹⁸ (Figure 4A). These pro-T cells were transduced with inducible retroviral vectors containing either TA L1, AKT^E17K or TAL1+AKT^E17K cloned in the antisense orientation between mutant LoxP sites to make the expression inducible¹⁹ (Figure 4B). Green fluorescent protein (GFP) was constitutively expressed from these vectors, while blue fluorescent protein (BFP) was expressed together with TA L1 or AKT^E17K, but no additional fluorescent protein was present when both TA L1 and AKT^E17K were co-expressed (Figure 4B). Different treatment conditions with 4OH-tamoxifen were tested to determine the best recombination efficiency (Online Supplementary Figure 3A). Treatment of these cells with 1 µM 4OH-tamoxifen successfully induced inversion of the DNA between the mutant LoxP sites resulting in the expression of the inserted cDNA (Online Supplementary Figure 3B).

Induced expression of TAL1 (determined by BFP expression) led to a selective growth disadvantage with the percentage of TAL1 expressing pro-T cells decreasing over time (Figure 4C). This growth disadvantage could be overcome by constitutive expression of AKT^E17K (+mCherry) in the pro-T cells. The AKT^E17K + TAL1 double positive pro-T cells became the major clone over time in these cultures (determined by BFP and mCherry expression) (Figure 4C). In order to further characterize this negative effect of TA L1 expression and the rescue by AKT pathway activation, we generated isogenic pro-T cells with inducible expression of TA L1, AKT^E17K or TAL1+AKT^E17K and followed these cultures in the presence or absence of induction by absolute cell counts. Induction of TA L1 caused again a growth disadvantage as cell numbers were lower than in uninduced cells (Figure 4D). Induced expression of AKT^E17K provided a growth advantage to the cells and induction of TAL1+AKT^E17K provided an even stronger growth advantage, indicating that TAL1 expression cooperated with AKT^E17K to drive stronger proliferation in these pro-T cell cultures (Figure 4D). Furthermore, pro-T-cells expressing TAL1+AKT^E17K showed IL7 independent growth with also here TAL1+AKT^E17K double positive cells becoming the predominant clone over time (Figure 4E).

In order to verify that Pten inactivation had similar effects compared to AKT^E17K, we also repeated these experiments using pro-T cells derived from Cas9 transgenic mice and we inactivated Pten via retroviral transduction of a Pten targeting gRNA. These cells showed again the TAL1 growth disadvantage, which could be rescued by Pten inactivation (Online Supplementary Figure S3C).

Figure 4.TAL1 expressing pro-T cells show a growth disadvantage, which can be rescued by co-expressing mutant AKT. (A) Scheme of ex vivo pro-T-cell culture derived from Cre-ER mice, requiring interleukin-7 (IL7), stem cell factor (SCF) and immobilized Delta-like ligand 4 (DLL4) for proliferation. (B) Pro-T cells were transduced with inducible retroviral constructs for expression of TA L1, AKT^E17K or TAL1+AKT^E17K. Pro-T cells were sorted for green fluorescent protein (GFP) and treated with 1 mM 4-OH tamoxifen for 48 hours to activate Cre-ER and induce LoxP-mediated inversion and expression of the oncogenes. Constructs having TAL1 and AKT^E17K become blue fluorescent protein (BFP)-positive, indicating the construct has successfully flipped. The construct containing both TAL1 and AKT^E17K does not contain BFP. (C) The percentages of each population in pro-T cells having TAL1 or TAL1+AKT^E17K were followed over time (BFP) cells when co-expression with mutant AKT (mcherry). Co-transduced cells in which the constructs were flipped become the largest population (BFP + mcherry). (D) Cell densities (mean +/- standard deviation) over time for different proT-cells conditions. (E) Cell densities (mean with standard deviation), as measure of absolute proliferation, were measured over time for different pro-T cell conditions: TA L1, AKT^E17K, TAL1+AKT^E17K and WT empty control. F, TA L1-AKT^E17K expressing pro-T cells were able to grow in the absence of IL7.

Palamarchuk et al. showed that the TAL1 protein can be phosphorylated by AKT at a threonine residue at position 90, leading to inhibition of its repressor activity.³¹ In order to test whether via this mechanism TAL1 growth disadvantage can be rescued, we performed polymerase chain reaction (PCR) mutagenesis to create TAL1^T90A and TAL1^T90D mutants. TAL1^T90D would mimic the phosphorylated form of TAL1, while TAL1^T90A would prevent phosphorylation and mimic the unphosphorylated form of TAL1. However, growth of the pro-T cells was still negatively affected by TAL1^T90D or TAL1^T90A and their survival could still be rescued by AKT^E17K. Both observations indicate that phosphorylation of TAL1 by AKT at Thr90 is not the major mechanism of cooperation (Online Supplementary Figure 3D).

TAL1 induces growth disadvantage by upregulating pro-apoptotic genes

When performing a constitutive bone marrow transplantation with TAL1 compared to empty vector, we observed that when TAL1 was constitutively expressed in the absence of AKT signaling, the TAL1-positive cells were initially engrafted, but showed lower numbers in bone marrow and blood compared to empty vector and were slowly disappearing over time (Figure 5A), indicating that TAL1 cannot induce leukemia on its own, and could even be a negative factor suppressing hematopoietic growth. In order to get insight in the mechanism of TAL1-induced growth disadvantage and rescue mechanism of PI3K-AKT pathway hyperactivation we performed gene expression profiling on TA L1 expressing pro-T cells and on TA L1 transduced T cells from the mouse model and in TAL1+AKT^E17K lymphoma cells.

We used the inducible TA L1 expression in the pro-T cells to extract RNA on different times points after induction. Pro-T cells with induced TA L1 expression were sorted for GFP and RNA was extracted at 0, 6, 12, 18 and 24 h after treatment with 1 µM 4OH tamoxifen (Figure 5B). Expression of TAL1 was confirmed by western blotting (Figure 5C). Six hours after induction of TA L1 expression there was no significant difference in gene expression compared to uninduced cells, but at 12 h of induction the first gene expression changes were observed that were further enhanced at 18 and 24 h after induction (Figure 5D). At time point 18 h and 24 h there was upregulation of known TA L1 target genes such as Runx1 and Gata3, as well as strong signatures of E2f target genes and Myc target genes. In agreement with immunophenotype of TAL1+AKT^E17K thymic cells, a significant upregulation of IL2ra (CD25) was observed at all time points.

Interestingly, at 18 h and 24 h after induction of TA L1 there was upregulation of cell-cycle and proliferation markers (upregulation of Cdk1, Hes1, Nmyc, Mki67; downregulation of Rb1, Pten), but at the same time also a significant enrichment for apoptotic genes, including upregulation of several pro-apoptotic caspases (Figure 5E; Online Supplementary Figure S4). In contrast, AKT^E17K and TAL1+AKT^E17K expressing pro-T cells showed no or negative enrichment of apoptosis genes, suggesting that AKT^E17K can counteract TA L1 -induced apoptosis (Figure 5E). RNA-sequecing analysis of sorted TA L1 -positive T cells harvested from the thymus of the in vivo mouse models showed strong downregulation of IL7-JAK-STAT pathway genes with Bcl2 and IL7 receptor genes as most significantly downregulated genes (Fig. 5F). In order to confirm the role of apoptosis in TA L1 induced growth disadvantage, we overexpressed Bcl2 in pro-T cells expressing TA L1 . Expression of Bcl2 allowed the TA L1 -expressing cells to grow initially and the growth retardation was now clearly delayed, indicating that apoptosis was at least partially responsible for the observed negative effect of TA L1 (Figure 5G).

Figure 5.TAL1 induces a growth disadvantage in vitro by direct upregulation of apoptosis. (A) Plots showing percentage green fluorescent protein (GFP)-positive cells in peripheral blood, bone marrow, spleen and thymus at time of sacrifice: TAL1-positive vs. empty vector cells. P-values were calculated using unpaired t-test. (B) CreER pro-T cells were transduced with TAL1-inducible constructs, which were sorted for GFP. Next these cells were cultured in presence of 4OH tamoxifen. Successful flipping of the construct is seen over time as blue fluorescent protein (BFP) signal increases over time. RNA extraction was performed on indicated time points. (C) At 48 hours (h) cells were sorted for BFP and expression of TAL1 was confirmed by western blot. (D) Representation of the 100 most up- and downregulated genes at 24 h compared to 0 h over time. (E) Gene set enrichment analysis (GSEA) showing significantly positive enrichment of pro-apoptotic genes after TAL1 induction compared to non-treated pro-T cells. NES: normalized enrichment score; P: nominal P-value. (F) GSEA showing significantly negative enrichment of IL2-STAT5 signaling in TAL1-positive thymus cells compared to empty vector (EV) thymus cells. NES: normalized enrichment score; P: nominal P-value. (G) Growth curve showing percentage of TAL1-positive (mcherry positive) cells over time.

These data indicate that TA L1 expression can both induce pro-proliferation and pro-apoptosis effects and that its oncogenic characteristics can only become evident in the right signaling background such as in the presence of strong AKT signaling.

TAL1-AKTE17K leukemic cells are more sensitive to PI3K inhibitors

Based on our data that TA L1 expression in the absence of strong AKT signaling is having a negative effect on cell survival, we hypothesized that PI3K/AKT pathway inhibition in TA L1 -positive T-ALL cells could elicit a stronger anti-leukemia effect compared to TA L1 -negative cells. In order to study this, we tested if TAL1+AKT^E17K transformed pro-T cells were more sensitive to PI3K-AKT inhibition compared to AKT^E17K transformed pro-T cells. These transformed pro-T cells were cultured in multi-well plates and treated with increasing concentrations of Dactolisib or MK2206, respectively a potent PI3K-mTOR and AKT inhibitor (Figure 6A). Both TAL1+AKT^E17K and AKT^E17K transformed pro-T cells were sensitive to these inhibitors and the TAL1+AKT^E17K expressing cells were clearly more sensitive with an half maximal inhibitory concentration (IC50) value >10-times lower than AKT^E17K transformed pro-T cells (Figure 6A). Similarly, we also treated thymic cells derived from the TAL1+AKT^E17K and AKT^E17K mouse lymphoma/leukemia models (Figure 6B). Cells were cultured for short term ex vivo and treated for 24 h with either Dactolisib or MK2206. In both conditions, cells were very sensitive to PI3K inhibitors compared to wild-type thymic cells and TAL1+AKT^E17K thymic cells were about three-times more sensitive to MK2206 compared to AKT^E17K expressing cells (P<0.001), while this difference was not significant for dactolisib (P=0.09) due to more variability in the growth of the primary cells (Figure 6B).

Together, these data from the mouse lymphoma/leukemia cells and the pro-T cells clearly indicate that TAL1+AKT^E17K transformed cells are more sensitive to PI3K/AKT pathway inhibition compared to AKT^E17K transformed cells, illustrating the negative impact of TA L1 expression in the absence of PI3K-AKT signaling.

TAL1-AKT positive cells upregulate DNA repair genes and show increased sensitivity to PARP inhibitors

Expression analysis of TA L1 positive pro-T cells (Figure 7A) and TA L1 expressing thymic cells (Figure 7B) showed that TA L1 expression was associated with an enrichment of genomic instability markers. Interestingly, there was also positive enrichment for DNA repair and TP53 pathway genes in human T-ALL samples with TAL1 expression and PI3K-AKT pathway mutations, indicating that the subgroup of TAL1 positive T-ALL cases with PI3K-AKT pathway mutations could have increased dependency on DNA repair genes compared to other T-ALL cases (Figure 7C). TA L1 -expressing cells had an upregulation of DNA repair genes and downregulation of genes involved with the response to UV induced damage (Figure 7D). There was upregulation of genes in each of the DNA repair pathways including non-homologous end joining, homologous end joining, base excision repair and nucleotide excision repair and the strongest association was observed with nucleotide excision repair (NER) (Figure 7E), which is a DNA repair mechanism for single stranded DNA breaks involving PARP1. In agreement with this, publicly available data from the CancerRx data set revealed sensitivity of JURKAT, a TA L1 -positive T-ALL cell line, for the PARP1 inhibitor Olaparib. Together, these data suggest that TA L1 expression and PI3K-AKT pathway activation might sensitize cells towards PARP1 inhibition.

In order to investigate this further, we used the pro-T cell model with AKT^E17K or TAL1+AKT^E17K and compared the sensitivity of these cells to empty vector transduced pro-T cells. Empty vector transduced pro-T cells were not very sensitive to Olaparib (Figure 7F). There was also no synergy detected between Olaparib and Dactolisib in the normal pro-T-cell cultures (Figure 7G). Strikingly, both AKT^E17K and TAL1+AKT^E17K transformed pro-T cells showed sensitivity towards Olaparib and there was a strong synergy detected with Dactolisib that was more pronounced in cells transformed by TAL1+AKT^E17K compared to AKT^E17K alone (Figure 7F and G). Such synergy was also detected in JURKAT cells, a human T-ALL cell line with TA L1 expression and AKT pathway activation (Figure 7G). These data in the isogenic pro-T cells clearly illustrate that AKT^E17K and TAL1+AKT^E17K transformed pro-T cells become dependent on PI3K/AKT signaling and become sensitive to PI3K/AKT pathway inhibitors, with the TAL1+AKT^E17K transformed cells being the most sensitive cells.

Figure 6.TAL1-AKT^E17K pro-T and leukemic cells are more sensitive to PI3K inhibition compared to AKT^E17K only cells. (A) Dose response curves showing relative (to dimethyl sulfoxide [DMSO] concentration) viability of leukemic cells in response to 24 hours of treatment with increasing concentrations of PI3K-mTOR inhibitor Dactolisib and AKT inhibitor MK2206. Thymic mouse cells (left): m267 (AKT^E17K), m271 (TAL1+AKT^E17K) and Cas9 pro-T cells (right). (B) Bar plots showing half maximal inhibitory concentration (IC50) values for different Leukemic cells/ pro-T cell conditions treated with PI3k-mTOR inhibitor Dactolisib and AKT inhibitor MK2206. P-values were calculated using the one-way ANOVA with Tukey correction to account for multiple comparisons.

Figure 7.TAL1 positive cells are characterized by a DNA repair signature and show increased sensitivity to PARP inhibitors. (A to C) Gene set enrichment analysis (GSEA) showing significant enrichment of DNA repair pathway in (A) TA L1 -positive pro-T cells, (B) TAL1 -positive thymus cells compared to empty vector (EV) thymus cells or (C) TA L1 positive T-ALL with PI3K pathway activating mutations compared to TAL1 T-ALL without mutations in PI3K pathway. NES: normalized enrichment score; P: nominal P-value. (D to E) GSEA showing significant negative enrichment of (D) UV response and positive enrichment of (E) nucleotide excision repair genes in TA L1 -positive thymus cells compared to empty vector (EV) thymus cells. (F) Bar plots showing IC50 values for different pro-T cell conditions treated with PARP-inhibitor olaparib. P-values were calculated using the one-way ANOVA with Tukey correction to account for multiple comparisons. (G) Synergy matrix plots showing γ-scores for pro-T cells or Jurkat cells treated with dactolisib and olaparib (synergy score = the average γ-score for the whole range of concentrations shown in the synergy matrix).

Discussion

TAL1 is a transcriptional regulator, that heterodimerizes with bHLH proteins such as E12, E47, HEB and E2-2 and is part of a large transcriptional complex with GATA1, LMO1/LMO2 and Ldb1.^32-36 Some cases with TAL1 expression also show increased LMO1 or LMO2 expression, explaining why previous mouse models for TAL1 studies have focused on the cooperation between TAL1 and LMO1/2. However, detailed RNA-sequencing analyses of T-ALL cases with TA L1 expression indicates that only a minority of TA L1 positive cases show increased LMO1 or LMO2 expression. In contrast, several studies have indicated that there is an overrepresentation of PTEN deletions and other mutations in the PI3K/AKT signaling pathway in TAL1-positive T-ALL^.5,16,17

In this study we provide proof that TAL1 expression and PI3K/AKT pathway activation indeed cooperate in driving TALL. We developed an inducible bone marrow transplant T-ALL model, where expression of TAL1+AKT^E17K leads to a transplantable leukemic disease whereas an AKT^E117K disease is not transplantable and TA L1 alone does not generate any disease at all. These data indicate that AKT pathway activation in lymphoid progenitor cells is sufficient to activate proliferation and survival pathways, but that TA L1 expression is required to induce stem cell properties and increase the number of leukemia initiating cells. Most importantly, these data clearly demonstrate that TAL1 and PI3K-AKT pathway activation cooperate and drive leukemia development.

Interestingly, we find that both in vivo and in vitro TA L1 expression in the absence of PI3K/AKT activation has a negative effect on cell growth. Pharmacologic inhibition of PI3K-AKT signaling showed pronounced anti-proliferative effects and induced apoptosis in pre-clinical models using leukemia cell lines or primary leukemia samples.^{37- 41} Given the negative effect of TA L1 on cell growth and the key role of PI3K signaling in TA L1 -positive T-ALL, we examined the effect of PI3K-AKT inhibitors in our different models. In agreement with the negative effect of TA L1 on cell growth, we show that inactivation of PI3K/AKT pathway has a stronger effect on viability in TAL1+AKT^E17K cells compared to AKT cells. These findings have potentially important therapeutic potential, as we demonstrate that TAL1+AKT^E17K cells are highly sensitive to AKT pathway inhibition, more sensitive than expected due to the negative effects of TA L1 on T-cell survival in the absence of AKT pathway activation. With several PI3K/AKT pathway inhibitors in development,^37-41 these data could find clinical applications for high risk TALL patients with PI3K/AKT pathway activation in whom stardard treatment does not lead to MRD negativity. Dactolisib (BEZ235) is a dual pan-PI3K and mTOR inhibitor for which a phase I study in acute leukemia showed positive effect in a subset of ALL patients.³⁹ However, digestive toxicity (mostly dose-dependent) remains an important problem. MK2206, an allosteric pan-AKT inhibitor, has been shown to induce apoptosis and autophagy in T-ALL cell lines and primary patient samples.⁴⁰ Phase II clinical studies in refractory lymphomas have shownd a favorable safety profile.⁴¹

The role of poly (ADP-ribose) polymerases (PARP) in malignancy is well known in BRCA1/2 mutant tumors known to be deficient in homologous recombination mechanisms.⁴² Mutations in BRCA1/2 genes are uncommon in hematological cancers, but data have shown that the clinical benefits of PARP inhibition are not restricted to BRCA mutant cancers.^42,43 In our study we found enrichment of DNA repair genes in TAL1-positive T-ALL patients with PI3K pathway compared to TAL1-positive T-ALL patients without PI3K hyperactivation, suggesting a role for PI3K pathway in DNA repair. Furthermore, our RNA-sequencing data showed an upregulation of DNA repair in TA L1 -positive pro-T cells and thymic mouse cells. Upregulation of DNA repair is a known mechanism of cancer cells to maintain oncogenic growth and chemoresistance and to protect the cells from DNA damage. Our data thus indicated that both TAL1 expression and PI3K-AKT pathway activation could increase the dependency on DNA repair mechanisms. Indeed, AKT^E17K and TAL1+AKT^E17K pro-T cells are much more sensitive to PARP inhibition compared to control pro-T cells. Moreover, when combining Olaparib with Dactolisib, synergy was observed in AKT^E17K and TAL1-AKT^E17K transformed cells with the strongest synergy in TAL1-AKT^E17K transformed cells.

In conclusion, we demonstrate direct cooperation between TA L1 and PI3K/AKT pathway signaling to drive T-ALL development using ex vivo T-cell cultures and a novel in vivo mouse model. We identify TAL1 as an apoptosis promoting factor in T cells in the absence of strong PI3K/AKT signaling, making TAL1 positive T-ALL cells highly sensitive to PI3K/AKT pathway inhibition. Moreover, we find that both TA L1 and PI3K/AKT induce a DNA repair signature in T-ALL and demonstrate that PARP inhibitors may be attractive therapeutic agents in combination with PI3K inhibitors in TA L1 -positive T-ALL.
