After Röntgen’s discovery in 1895, an X-ray became a game changer in medicine.1 It was discovered as an invisible ray of light that passes through many objects, including human bodies, and visualizes the internal organs and structures as silhouettes. As now seen in medical radiography, such as chest X-rays and computed tomography (CT) scans, ionizing radiation (IR) has enabled investigation of deep tissues in humans that had been otherwise impossible without surgical intervention, contributing to the early detection and treatment of many diseases. However, as is often the case with new medicine, were shown to have a biohazard effect.2 They are identified as a type of IR: a stream of high energy photons that are strong enough to ionize atoms and disrupt molecular bonds in biomolecules, including DNA. As DNA encodes an essential blueprint of a cell, the DNA-damaging property of IR can be toxic. This effect, although used for killing cancer cells in radiotherapy, has raised concerns about the effect of IR on normal tissues and whether the benefits exceed the risks.
Modern medicine relies heavily on radiography to assess human health. The annual doses of IR people receive are increasing. A recent study estimated that around 2% or 4,000,000 of the non-elderly adults in the US receive 20 milligray (mGy) or more per year due to medical requirements.3 Historically, risks associated with low-dose IR are considered to be almost negligible as it does not cause any acute toxicity, nor does it increase the risk of carcinogenesis, based on empirical linear fits of existing human data determined at high doses, such as those of Japanese atomic bomb survivors. 4 Indeed, low-dose IR rarely induces DNA double strand breaks (DSB), which often cause mutations and are considered to be the most relevant lesion for the deleterious effects of IR.5 However, even though low-dose IR rarely cause DSB, they are reportedly less easy to repair than those induced by high-dose IR .6 Importantly, recent evidence suggests that cumulative doses of 50 mGy IR (doses equivalent to 5-10 brain CT scans when given in childhood) have longterm detrimental effects on human health, including a more than 3-fold increase in the risks of acute lymphoblastic leukemia and myelodysplastic syndrome.7 Furthermore, mouse studies demonstrate that low-dose IR affect function of long-lived tissue-specific stem cells, including hematopoietic stem cells (HSC).8,9 Thus, understanding the persistent effect of low-dose IR on human tissue-specific stem cells is of particular importance in precisely evaluating the risks posed by radiography on public health.

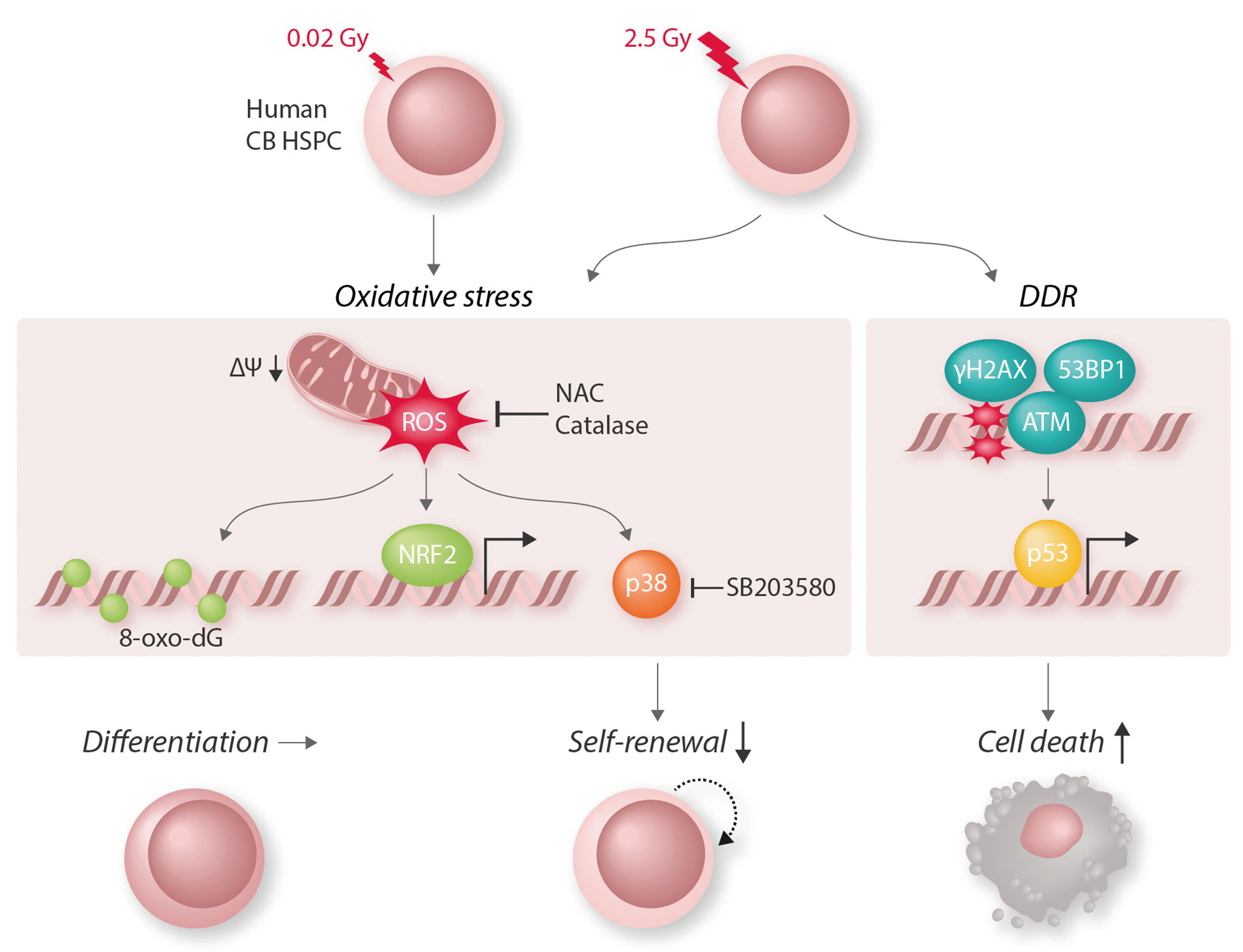

In this issue of Haematologica, Henry et al. compared the effects of low and high doses of IR on hematopoietic stem and progenitor cells (HSPC) obtained from human umbilical cord blood (CB) (Figure 1).10 HSPC sustain themselves via self-renewing ability, and give rise to all of the blood lineage cells, such as innate and acquired immune cells, erythrocytes and platelets, through multi-lineage differentiation. They found that a single dose of 20 mGy IR is sufficient to impair the self-renewing capacity of CB HSPC. Intriguingly, this effect is independent of canonical DNA damage response (DDR), as a 20 mGy dose fails to induce DSB markers γ- H2AX and 53BP1 foci, or DDR hallmarks phospho-ATM and -p53, all of which are induced by a 2.5 Gy dose. Instead, the authors demonstrate that it is mediated by reactive oxygen species (ROS), a highly reactive oxygen byproduct mainly generated via the cell respiratory process of oxidative phosphorylation (OXPHOS) in mitochondria, and p38/MAPK14, a key enzyme that, upon elevation of ROS, sends a signal to HSPC to inhibit their self-renewing potential.11 Thus, the results of Henry et al. indicate that low-dose IR impair human CB HSPC function through ROS and p38/MAPK14, but not via canonical DDR via ATM or p53.
The high sensitivity of HSC to elevated levels of ROS is well established, first in ATM deficiency and later in the contexts of other stress conditions.11-13 Similarly, p38/MAPK14 activation in response to ROS elevation is identified as a common downstream pathway responsible for impairment of self-renewal in HSC.11,12 In contrast, what is often unclear is the upstream mediator that causes ROS elevation. In the context of low-dose IR, mouse studies have uncovered the hypersensitivity of HSC and esophageal stem cells to low-dose IR that is mediated by ROS elevation, although the molecular link between low-dose IR and elevated ROS has not yet been investigated. 8,9 It is estimated that approximately 90% of ROS can be generated during OXPHOS in mitochondria,14 mainly through functions of complexes I and III.15 Interestingly, the results shown by Henry et al. indicate that ROS elevation in human CB HSPC upon exposure to 20 mGy IR is closely associated with loss of mitochondrial membrane potential, which reflects a decrease in proton gradient across the cristae and often correlates with mitochondrial dysfunction.10 Apart from nucleus, mitochondria are the only organelle in mammalian cells that contain DNA, which can also be damaged by low-dose IR.16 Mitochondrial DNA (mtDNA) encodes proteins that consist of complexes I and ATP synthase, both of which are essential for proper electron transport and OXPHOS. Of note, these components are located in the so-called “common deletion” region of mtDNA that is commonly deleted upon exposure to low-dose IR. mtDNA is not protected by histones, and is thus potentially more susceptible to IR-induced damage compared to nuclear DNA. Moreover, mtDNA is located in matrix inside inner membranes where ROS is generated, and is thus more greatly affected by IR-induced oxidative stress than nuclear DNA. Damage in mtDNA is not so simple as that in nuclear DNA, as a cell can contain more than 1,000 copies of mtDNA. Furthermore, numbers of mitochondria are dynamically changed by fusion and fission, which play critical roles in maintaining functional mitochondria via inter-mitochondrial complementation and quality control.17 In addition, damaged mitochondria can be removed by autophagy, which contributes to maintenance of self-renewal capacity of HSC.18,19 Henry et al. show that mitochondrial mass in HSPC does not seem to change after irradiation of 20 mGy IR.10 Although this observation should be validated by other methods,20 it supports the idea that changes in mitochondrial mass are unlikely to be the cause of ROS elevation. Rather, it is tempting to speculate that damage in mtDNA induced by low-dose IR causes persistent changes in mitochondrial function that lead to initial elevation of ROS and longterm impairment of HSC function. This would be consistent with the results reported by Rodrigues-Moreira et al., which demonstrate that low-dose IR cause biphasic elevations of ROS and the second wave of ROS elevation causes persistent reduction in self-renewing capacity of mouse bone marrow HSC.9 Mitochondrial dysfunction, but not constant elevation of ROS, is implicated in age-associated decline in HSC function.18 Since involvement of mtDNA remains unknown, investigating whether aged HSC have mtDNA damage would be of particular interest. Collectively, identifying molecular ‘scars’ left by low-dose IR on HSC would help provide a precise evaluation of the long-term detrimental effects by medical radiographic examination and also find common mechanisms that underlie hematopoietic aging and disease.
References
- Röntgen WC. On a New Kind of Rays. Science. 1896; 3(59):227-231. https://doi.org/10.1126/science.3.59.227PubMedGoogle Scholar
- Daniel J. The X-Rays. Science. 1896; 3(67):562-563. https://doi.org/10.1126/science.3.67.562PubMedGoogle Scholar
- Fazel R, Krumholz HM, Wang Y. Exposure to low-dose ionizing radiation from medical imaging procedures. N Engl J Med. 2009; 361(9):849-857. https://doi.org/10.1056/NEJMoa0901249PubMedPubMed CentralGoogle Scholar
- Preston DL, Kusumi S, Tomonaga M. Cancer incidence in atomic bomb survivors. Part III. Leukemia, lymphoma and multiple myeloma, 1950-1987. Radiat Res. 1994; 137(2 Suppl):S68-S97. https://doi.org/10.2307/3578893PubMedGoogle Scholar
- Hoeijmakers JH. Genome maintenance mechanisms for preventing cancer. Nature. 2001; 411(6835):366-374. https://doi.org/10.1038/35077232PubMedGoogle Scholar
- Rothkamm K, Lobrich M. Evidence for a lack of DNA double-strand break repair in human cells exposed to very low x-ray doses. Proc Natl Acad Sci U S A. 2003; 100(9):5057-5062. https://doi.org/10.1073/pnas.0830918100PubMedPubMed CentralGoogle Scholar
- Pearce MS, Salotti JA, Little MP. Radiation exposure from CT scans in childhood and subsequent risk of leukaemia and brain tumours: a retrospective cohort study. Lancet. 2012; 380(9840):499-505. https://doi.org/10.1016/S0140-6736(12)60815-0PubMedPubMed CentralGoogle Scholar
- Fernandez-Antoran D, Piedrafita G, Murai K. Outcompeting p53-mutant cells in the normal esophagus by redox manipulation. Cell Stem Cell. 2019; 25(3):329-341.e6. https://doi.org/10.1016/j.stem.2019.06.011PubMedPubMed CentralGoogle Scholar
- Rodrigues-Moreira S, Moreno SG, Ghinatti G. Low-dose irradiation promotes persistent oxidative stress and decreases self-renewal in hematopoietic stem cells. Cell Rep. 2017; 20(13):3199-3211. https://doi.org/10.1016/j.celrep.2017.09.013PubMedGoogle Scholar
- Henry E, Souissi-Sahraoui I, Deynoux M. Human hematopoietic stem/progenitor cells display ROS-dependent long-term hematopoietic defects after exposure to low dose of ionizing radiations. Haematologica. 2020; 105(8):2044-2055. https://doi.org/10.3324/haematol.2019.226936PubMedPubMed CentralGoogle Scholar
- Ito K, Hirao A, Arai F. Reactive oxygen species act through p38 MAPK to limit the lifespan of hematopoietic stem cells. Nat Med. 2006; 12(4):446-451. https://doi.org/10.1038/nm1388PubMedGoogle Scholar
- Miyamoto K, Araki KY, Naka K. Foxo3a is essential for maintenance of the hematopoietic stem cell pool. Cell Stem Cell. 2007; 1(1):101-112. https://doi.org/10.1016/j.stem.2007.02.001PubMedGoogle Scholar
- Tothova Z, Kollipara R, Huntly BJ. FoxOs are critical mediators of hematopoietic stem cell resistance to physiologic oxidative stress. Cell. 2007; 128(2):325-339. https://doi.org/10.1016/j.cell.2007.01.003PubMedGoogle Scholar
- Balaban RS, Nemoto S, Finkel T. Mitochondria, oxidants, and aging. Cell. 2005; 120(4):483-495. https://doi.org/10.1016/j.cell.2005.02.001PubMedGoogle Scholar
- Nissanka N, Moraes CT. Mitochondrial DNA damage and reactive oxygen species in neurodegenerative disease. FEBS Lett. 2018; 592(5):728-742. https://doi.org/10.1002/1873-3468.12956PubMedPubMed CentralGoogle Scholar
- Kawamura K, Qi F, Kobayashi J. Potential relationship between the biological effects of low-dose irradiation and mitochondrial ROS production. J Radiat Res. 2018; 59(Suppl 2):ii91-ii97. https://doi.org/10.1093/jrr/rrx091PubMedPubMed CentralGoogle Scholar
- Youle RJ, van der Bliek AM. Mitochondrial fission, fusion, and stress. Science. 2012; 337(6098):1062-1065. https://doi.org/10.1126/science.1219855PubMedPubMed CentralGoogle Scholar
- Ho TT, Warr MR, Adelman ER. Autophagy maintains the metabolism and function of young and old stem cells. Nature. 2017; 543(7644):205-210. https://doi.org/10.1038/nature21388PubMedPubMed CentralGoogle Scholar
- Ito K, Turcotte R, Cui J. Self-renewal of a purified Tie2+ hematopoietic stem cell population relies on mitochondrial clearance. Science. 2016; 354(6316):1156-1160. https://doi.org/10.1126/science.aaf5530PubMedPubMed CentralGoogle Scholar
- de Almeida MJ, Luchsinger LL, Corrigan DJ, Williams LJ, Snoeck HW. Dye-Independent Methods Reveal Elevated Mitochondrial Mass in Hematopoietic Stem Cells. Cell Stem Cell. 2017; 21(6):725-729.e4. https://doi.org/10.1016/j.stem.2017.11.002PubMedPubMed CentralGoogle Scholar
