AbstractThe recent identification of acquired mutations in key components of the spliceosome machinery strongly implicates abnormalities of mRNA splicing in the pathogenesis of myelodysplastic syndromes. However, questions remain as to how these aberrations functionally combine with the growing list of mutations in genes involved in epigenetic modification and cell signaling/transcription regulation identified in these diseases. In this study, amplicon sequencing was used to perform a mutation screen in 154 myelodysplastic syndrome patients using a 22-gene panel, including commonly mutated spliceosome components (SF3B1, SRSF2, U2AF1, ZRSR2), and a further 18 genes known to be mutated in myeloid cancers. Sequencing of the 22-gene panel revealed that 76% (n=117) of the patients had mutations in at least one of the genes, with 38% (n=59) having splicing gene mutations and 49% (n=75) patients harboring more than one gene mutation. Interestingly, single and specific epigenetic modifier mutations tended to coexist with SF3B1 and SRSF2 mutations (P<0.03). Furthermore, mutations in SF3B1 and SRSF2 were mutually exclusive to TP53 mutations both at diagnosis and at the time of disease transformation. Moreover, mutations in FLT3, NRAS, RUNX1, CCBL and C-KIT were more likely to co-occur with splicing factor mutations generally (P<0.02), and SRSF2 mutants in particular (P<0.003) and were significantly associated with disease transformation (P<0.02). SF3B1 and TP53 mutations had varying impacts on overall survival with hazard ratios of 0.2 (P<0.03, 95% CI, 0.1–0.8) and 2.1 (P<0.04, 95% CI, 1.1–4.4), respectively. Moreover, patients with splicing factor mutations alone had a better overall survival than those with epigenetic modifier mutations, or cell signaling/transcription regulator mutations with and without coexisting mutations of splicing factor genes, with worsening prognosis (P<0.001). These findings suggest that splicing factor mutations are maintained throughout disease evolution with emerging oncogenic mutations adversely affecting patients’ outcome, implicating spliceosome mutations as founder mutations in myelodysplastic syndromes.
Myelodysplastic syndromes (MDS) comprise a heterogeneous group of clonal hematopoietic stem-cell disorders with diverse phenotypes, characterized by varying severity of ineffective hematopoiesis, bone marrow dysplasia, rate of progression to acute myeloid leukemia (AML), overall survival (OS) and response to therapy.1–3 Cytogenetic abnormalities are detected in up to 60% of patients, in whom the type and complexity of these aberrations correlate with progression, leukemia transformation and response to therapy.2,4 Furthermore, application of high-density single nucleotide polymorphism arrays has led to the enhanced detection of smaller chromosomal aberrations, including micro-deletions or uniparental disomy with an overall loss of heterozygosity.5,6
Recent studies have found mutations involving multiple components of the mRNA splicing machinery including SF3B1, SRSF2, U2AF1, ZRSR2, PRPF40B, U2AF65 and SF1 in patients with MDS, myeloproliferative disorder (MPN) and AML.7–18 Moreover, the most frequently mutated spliceosome component in MDS, SF3B1 (30% of cases), is aberrant in 70–85% of cases of refractory anemia with ringed sideroblasts (RARS) and is highly associated with the presence of ringed sideroblasts.7,11 Fundamentally, however, the influence of such SF3B1 mutations is not just in myeloid tissue and RARS, but has now been observed in chronic lymphocytic leukemia and lymphoid tissue,19,20 suggesting that genetic background plays an important role in the functional manifestation of spliceosome aberrations.
Over the past decade a number of novel gene mutations that are associated with MDS have been identified, including genes involved in epigenetic regulation (TET2,21DNMT3A,22IDH1/2,23ASXL124 and EZH225), suggesting an underlying genomic instability or aberrant transcription regulation in the evolution of this disease. Moreover, the occurrence in MDS of known oncogenic mutations or mutations in genes involved in cell signaling/transcription regulation has also been extensively studied in recent years, including mutations in TP53 (8%),26NRAS/KRAS,27RUNX1 (9%),28FLT3 (6%),29,30ETV6 (3%)28 and CCBL (2.3%).28 In fact, around 80% of MDS patients have defects in one or more of these ‘epigenetic’ or ‘oncogenic’ factors. A recent study by Bejar et al. showed that mutations in five genes (TP53, RUNX1, EZH2, ASXL1 and ETV6) are independent predictors of poor OS in patients with MDS.28 Data from this study and elsewhere have shown that TP53 remains the only gene with a statistically robust prognostic impact in MDS. However, aberrations in DNMT3A31 and FLT3,29 which have previously been attributed prognostic significance, were not analyzed in this study. In another study, Thol et al. investigated various epigenetic, cell cycle/apoptotic genes and spliceosome components in 193 patients with MDS, and found SRSF2 mutations were associated with RUNX1 and IDH1 mutations while U2AF1 mutations were associated with ASXL1 and DNMT3A mutations. In addition to this, SRSF2 mutations were associated with poor OS and more frequent progression to AML.10 However, several genes, including FLT3, CCBL, JAK2, TET2 and EZH2, which are frequently mutated in MDS were not analyzed in these patients. Therefore, to gain a better understanding of spliceosome aberrations and how they interact with other coexisting mutations, as well as to determine their prognostic significance in isolation or in combination with other mutations, we performed a comprehensive mutation screen in 154 MDS patients.
Design and Methods
Clinical data and patients’ samples
Eight MDS patients [5 with RARS, 1 with RARS in transformation (RARS-T), 1 with refractory cytopenia with multilineage dysplasia and ringed sideroblasts (RCMD-RS) and 1 with therapy-related MDS] with >50% ringed sideroblasts were initially selected for whole-exome sequencing. An additional 146 MDS patients were selected for mutation analysis of the splicing pathway genes, epigenetic modifiers and other cell signaling/transcription regulator genes, followed by validation of the candidate mutations. Patients with MDS seen at King’s College Hospital from June 2004 to June 2011 were enrolled in this study. All patients provided written informed consent in accordance with National Research Ethics Protocol (KCLPR060 PR029). The demographic and clinical characteristics of the studied patients are detailed in Table 1. All patients were risk stratified according to International Prognostic Scoring System (IPSS) categories. The clinical variables, French-American-British classification, World Health Organization (WHO) subtype and the prognostic risk of all patients were ascertained at the time of sample collection. The median follow-up was 21.4 months (range, 1–83 months). The cohort was followed up to January 2012 for disease progression, and survival. The survival data for patients who underwent allogeneic hematopoietic stem cell transplantation (HSCT) (n=35, 22%) were censored on the day of the transplant and the treatments received by other patients are annotated in Online Supplementary Table S1.
DNA was extracted from CD34 cells (n=8), CD34CD3 (n=18), CD34CD235 (n=1), CD71CD235 (n=3), CD34CD235 (n=3), CD34CD3CD4 (n=3), CD34CD19 (n=3), skin (n= 27), buccal swab (n=3) and bone marrow total nucleated cells (n=154) using QIAamp DNA extraction kits (Qiagen) according to the manufacturer’s protocol. Out of 154 cases, whole-genome-amplified DNA was used in 40 cases for mutation screening.
Mutation screening for SF3B1, SRSF2, U2AF1, ZRSR2, TP53, FLT3, DNMT3A, ASXL1, EZH2, NRAS, KRAS, JAK2, CCBL, RUNX1, CEBPA, BRAF, MPL, NPM1, IDH1, IDH2, C-KIT and TET2 was performed on bone marrow total nucleated cell DNA using the Roche GS FLX platform as described previously21 (see Online Supplementary Methods for details; Online Supplementary Tables S2 and S3).
Eight patients with more than 50% ringed sideroblasts were selected for whole-exome sequencing, using DNA from CD34 cells. The exomic regions of the genome were enriched using Agilent SureSelect Human All Exon Kit and paired end sequencing was performed using Illumina HiSeq 2000 (version 3 chemistry) (see Online Supplementary Methods for details).
Statistical calculations were performed using SPSS version 17.0 (SPSS Inc.) as described in the Online Supplementary Methods. A P value of ≤0.05 was considered statistically significant.
Somatic mutations in myelodysplastic syndromes
Whole-exome sequencing (Illumina) using CD34 cells from eight RARS patients initially revealed mutations in SF3B1 in seven cases (Online Supplementary Results; Online Supplementary Tables S4 and S5).
We next utilized a 22-gene amplicon sequencing panel for genes known to be mutated in MDS for an additional 146 MDS patients comprising: splicing factor genes SF3B1, SRSF2, U2AF1 and ZRSR2; genes implicated in epigenetic regulation TET2, IDH1/2, ASXL1, EZH2 and DNMT3A; and known oncogenes/genes involved in cell signaling/transcription regulation: TP53, FLT3, NRAS, KRAS, RUNX1, CCBL, C-KIT, JAK2, MPL, CEBPA, BRAF and NPM. Acquired mutations in any one or more of these genes were detected in 76% (n=117) of the cohort, with 38% (n=59) of the patients having splicing factor mutations and 49% (n=75) of patients harboring more than one mutation (Figure 1 and Online Supplementary Table S6). Known single nucleotide polymorphisms and insertion/deletion variants listed in the International Center for Biotechnology Information Single Nucleotide Polymorphism database (dbSNP, build 135) and previously reported as germ line were excluded from further analysis. Novel mutations present in 48/54 cases which had not been previously reported in the literature were confirmed as acquired by their absence in paired constitutional DNA. The remaining seven novel variants (3 stop codons, 1 frame-shift mutation, 1 in-frame-shift deletion and 2 splice-site mutation) detected in six patients were also included in the analysis although a constitutional source of DNA was not available (Online Supplementary Table S6). The nature of these mutations makes it unlikely that they are benign inherited variants. The remainder of the mutations identified in this study had previously been reported in the literature as acquired mutations.
Spliceosome gene mutations: frequency and clinical correlates
Sequencing of the splicing factor genes revealed 61 somatic mutations in 38% (59 of 154) of MDS patients (Table 1 and Online Supplementary Table S6), comprising SF3B1 16% (n=24), SRSF2 13% (n=20), U2AF1 10% (n=15) and ZRSR2 1% (n=2). WHO subgroups for mutations of splicing factor genes included, RARS/RCMD-RS (20/24, 83%), chronic monomyelocytic leukemia (CMML) or MDS/MPN (9/14, 64%), secondary AML (6/15, 40%), refractory anemia with excess blasts (RAEB)-1/2 (13/49, 27%), and refractory anemia/RCMD (10/40, 25%), but were uncommon in therapy-related MDS (1 of 12). Importantly, splicing factor mutations were more common in patients in low/int-1 IPSS categories (36/68, 53%) than in those in int-2/high risk IPSS categories (12/63, 19%, P<0.002). Furthermore, with the exception of one case, all patients with isolated splicing factor mutations and no additional coexisting mutations (n=21) were in the low/int-1 IPSS categories. Patients with complex karyotypes were less likely than those in good and intermediate risk IPSS cytogenetic groups to harbor any splicing factor mutation (13 % versus 47% and 44%, P<0.002).
Overall, 24 of 154 (16%) MDS patients had a somatic mutation of SF3B1; however, the frequency of SF3B1 mutation was significantly higher in patients with RARS/RCMD-RS (20/24, 83%) than in patients in other WHO categories (4/130, 3%, P<0.001). Although there were no significant differences in patients between the groups with respect to age, sex, blast percentage and neutrophil count, SF3B1 mutations correlated strongly with lower hemoglobin concentration (median-8.9 versus 10.1 g/dL, P<0.006), higher platelet count (median-296 versus 102x10/L, P<0.001), low/int-1 risk IPSS score (31% versus 0%, P<0.001), normal cytogenetics (24% versus 0%, P<0.002), transfusion dependency (21% versus 9%, P<0.03) and a decreased likelihood of leukemic progression (4% versus 15%, P<0.02) when compared with wild-type SF3B1.
Among the 154 MDS patients, 20 had SRSF2 mutations (13%) and showed a significantly higher neutrophil count (median 11 versus 2.8x10/L, P<0.001) and higher hemoglobin levels (median 10.9 versus 9.8 g/dL, P<0.03) compared to patients with wild type SRSF2. There was no difference in platelet count or transfusion dependency rate between the groups. SRSF2 mutations were more frequently seen in patients with MDS/MPN or CMML (50%) and RAEB-1/2 (14%), but were absent in patients with low-risk IPSS, including those with ringed sideroblasts. Interestingly, both patients with isochromosome 17q (n=2) had mutations of the SRSF2 gene which maps to 17q25.1. There was a significant difference in rates of leukemic progression between patients with mutant or wild-type SRSF2 (50% versus 24%, P<0.02), with two-thirds of patients with coexisting SRSF2 and cell signaling/transcription regulator mutations progressing to AML.
U2AF1 mutations were detected in 15 (10%) patients with clustering in male patients (12/15, 80%) and was also associated with lower hemoglobin (median 9 versus 10 g/dL, P<0.05) when compared to wild-type U2AF1, but no significant differences in age, platelets, neutrophils, transfusion dependence, IPSS score or WHO subtype were observed between the two groups. ZRSF2 mutations were detected in only two (1%) MDS patients.
Interestingly, splicing factor mutations were largely mutually exclusive to each other, with only two patients having two separate spliceosome gene mutations, one with mutations in SF3B1 and U2AF1 and the other with mutations in SF3B1 and ZRSR2 genes.
Splicing factor mutations: type, site and allele burden
All SF3B1 mutations were non-synonymous amino acid substitutions with an average mutant allele burden of 41% (n=24), indicative of a heterozygous state. Amino acids affected were K700E (n=11), H662Q (n=4), K666Q/R (n=2), E622D (n=2), D781G (n=1) and R625C (n=1) and clustered in the protein c-terminal HEAT motifs implicated in snRNP stabilization within the U2 snRNP complex of the major spliceosome.32
Similarly, the majority of SRSF2 mutations were non-synonymous amino acid substitutions, with a heterozygous profile and an average mutant allele burden of 37.5% (n=20), comprising P95H/L/R (n=16) changes as previously reported.8 Importantly, a novel 24-base-pair deletion in SRSF2 causing the frameshift mutation Y93fsX121 was detected in four patients: this deletion could be predicted to cause loss of protein function.
In contrast, U2AF1 mutations had a lower average mutant allele burden of 26.7% (n=15) and were exclusively S34F (n=4) or Q157P/R/H (n=11) amino acid changes, found within the amino- and the carboxyl-terminal zinc finger motifs, respectively, flanking the U2AF homology motif (UHM) domain. On the other hand, ZRSR2 mutations had a much higher average mutant allele burden of 60.5% (n=2), were distinct in nature and did not cluster in the same protein domain, comprising an in-frame deletion (S439_R440del) and a frame-shift deletion E133Gfs11X.
Prevalence of mutations in epigenetic modifiers and cell signaling/transcription regulators
The overall frequency of mutations of genes involved in epigenetic regulation (TET2, ASXL1, DNMT3A, IDH2, EZH2 and IDH1), cell signaling/transcription regulators (FLT3, RUNX1, NRAS, C-KIT, CCBL, JAK2 and MPL) and mutations in tumor suppressor gene TP53 were 52% (n=80), 18% (n=28) and 12% (n=19), respectively (Table 1 and Online Supplementary Tables S6 and S7). Interestingly, mutations predicted to effect epigenetic regulation were detected in nearly half of the MDS patients, with TET2 mutations being the most frequent in 22% (n=34) of the cohort. The frequency of other mutations was ASXL1 (17%, n=26), DNMT3A (10%, n=15), IDH2 (8%, n=13), EZH2 (7%, n=11) and IDH1 (1%, n=2). Although mutations in epigenetic modifiers clustered in female patients (64% versus 25%, P<0.05), there were no differences in WHO subtypes, IPSS score, transfusion dependency or leukemic transformation rate when compared with cases wild-type for genes involved in epigenetic regulation. Furthermore, mutations in genes involved in cell signaling/transcription regulation were detected in 18% of MDS patients with mutations of NRAS and RUNX1 each present in 6% (n=9 each), CCBL (4%, n=6), FLT3 (3%, n=4) and JAK2 (2%, n=3). C-KIT and MPL mutations were detected in one patient each. Overall these mutations, with the exception of JAK2 and MPL, were associated with high-risk MDS, increased blast count, transfusion dependency and increased likelihood of leukemic transformation when compared to their wild-type counterparts (P<0.01). No BRAF, NPM and KRAS mutations were found in our cohort of patients.
Mutual exclusivity of TP53 with spliceosome components
TP53 mutations were detected in 12% (19/154) of cases (Online Supplementary Table S7). TP53 mutations were infrequent in patients with splicing factor mutations (5%, 3/59) compared to in patients with wild-type splicing factor genes (17%, 16/99, P<0.04). However, among patients with splicing factor mutations, all three TP53 mutations were observed exclusively in those who had mutations in the spliceosome component U2AF1 (20% versus 0%, P<0.01).
Coexistence and exclusivity of splicing factor mutations with commonly mutated epigenetic modifiers and cell signaling/transcription regulating genes
Of the 59 patients with spliceosome mutations, 16 (27%) had isolated splicing factor mutations, while 28 (48%) and 15 (25%) had mutations in epigenetic modifiers and cell signaling/transcription regulator mutations, respectively, including eight patients with coexisting mutations from all three mutation classes (Figure 1; Online Supplementary Figure S1A, B, Online Supplementary Table S7). Regardless of disease subtypes, MDS cases with non-SF3B1 splicing factor mutations had significantly more mutations in other genes screened here (mean 2.35 mutations/case) than did patients with SF3B1 mutations (mean 1.85 mutations/case, P<0.03).
Furthermore, mutations of epigenetic modifiers were associated with mutant SRSF2 compared to wild type (70% versus 50%, P<0.07), which was predominantly due to the presence of more TET2 mutations with mutant SRSF2 than wild-type (40% versus 25%, P<0.04). Patients with splicing factor mutations were less likely to have multiple epigenetic modifier mutations (14%, n=5) compared to patients with wild-type splicing factors (33%, n=15) (P<0.03), although if present, multiple mutations of epigenetic modifiers more often coexisted with U2AF1 (n=4) than with SF3B1 or SRSF2 (n=1) mutations. DNMT3A mutations were less likely to be seen with SRSF2 mutations compared with other spliceosome mutations (0% versus 15%, P<0.08), while ASXL1 mutations were more likely to occur together with SF3B1 than with other splicing factor mutations (23% versus 4%, P<0.07), indicating non-random mutation associations and tolerances. A trend towards an association between IDH2 and U2AF1 was observed, when compared to other splicing mutations (P<0.06).
Significantly, for all MDS cases, mutations of genes involved in cell signaling/transcription regulation (FLT3, NRAS, CCBL, RUNX1, JAK2, MPL and C-KIT) clustered with splicing factor mutations (27% versus 13%, P<0.02). When splicing factor mutations were looked at individually, these non-TP53 mutations co-existed frequently with SRSF2 mutations (50% versus 13%, P<0.003), compared to MDS patients with wild-type SRSF2. Furthermore, when considering all 59 cases of splicing factor mutants alone, mutations of FLT3, NRAS, CCBL, RUNX1, JAK2, MPL, C-KIT and TP53 were significantly less often associated with SF3B1 mutations than with other splicing factor alterations (8% versus 34%, P<0.009). SRSF2 mutations co-existed with mutations of cell signaling/transcription regulation genes, especially with alterations of NRAS (P<0.04) and FLT3 (P<0.03), compared with non-SRSF2 splicing factor mutations (40% versus 13%, P<0.02). Furthermore, NRAS mutations (n=9) were mutually exclusive to aberrations of epigenetic modifiers IDH2 (n=13) and EZH2 (n=11). CEBPA mutations co-existed significantly with mutant SF3B1 compared with other splicing factor mutations (21% versus 0%, P<0.008).
The average mutant allele burden for SF3B1 and SRSF2 mutations was 41% (24 cases) and 37.5% (20 cases), respectively. The average mutant allele burden of coexisting point mutations present alongside these splicing factor mutations was 35% and 37.5%, respectively, with the mutant allele burden of epigenetic modifiers (38% and 39%) being higher than cell signalling/transcription regulator mutations (27.5% and 28.75) for SF3B1 and SRSF2, respectively. In contrast, U2AF1 mutations had a lower average allele burden of 26.7% (15 cases) with 38.8% average mutation allele burden of other coexisting mutations where the burden of the cell signaling/transcription regulator mutations (45%) was higher than that of epigenetic modifier mutations (33%). This seemed to be due to the U2AF1/TP53 mutant cases which had a relatively higher TP53 than U2AF1 mutant allele burden in 2/3 cases. ZRSR2 mutation allele burden was, on average, 60.5% (2 cases).
Sequential acquisition of cell signaling/transcription regulating gene mutations in SF3B1 mutant clones with disease transformation
Only two of 24 patients with RARS/RCMD-RS and SF3B1 mutations developed AML at different times after diagnosis (patient UPN RC060337 at 4 months; patient UPN RC090006 at 36 months). To investigate the contributions of SF3B1 and coexisting mutations in disease evolution we screened relevant sequential samples for both these cases. Sequencing analysis of the samples taken from patient UPN RC060337 (A) and UPN RC090006 (B) at the time of diagnosis (A) and at presentation at our institute (B, 24 months after diagnosis) revealed the SF3B1 mutation with a mutant allele burden of 39% and 42%, respectively (example for patient A in Figure 2 and Online Supplementary Figure S2). A TET2 mutation was detected at diagnosis, with a mutant allele burden of 60%, in patient A (Figure 2) and a RUNX1 mutation in patient B. However, patient B developed AML and underwent allogeneic HSCT in morphological remission, following induction chemotherapy. He relapsed with AML and lost his donor chimerism shortly after the transplant. The SF3B1 and RUNX1 mutation burdens were maintained at the same levels during the RARS stage and also during the AML phase after HSCT in patient B. Likewise, the allele burdens of SF3B1 and TET2 mutations remained the same at transformation in patient A. Interestingly, at the time of transformation to AML, patient A also acquired a mutation in RUNX1 (F163Y) with a mutant allele burden of ≈30%, and a FLT3-ITD (F590_W603dupInsP) with a mutant allele burden of ≈50% (Figure 2 and Online Supplementary Figure S2). Following intensive chemotherapy, patient A attained a transient morphological remission but relapsed promptly with FLT3-ITD and RUNX1 mutant allele burdens increasing to ≈80% and ≈45%, respectively. Importantly, the mutation allele burden of SF3B1 and TET2 genes remained constant at around 40% to 50% throughout the disease, which as a heterozygous mutation would occur in a majority of sample cells. As such, RUNX1 and FLT3 mutations seemed to have evolved from the SF3B1/TET2 clonal population and coexist in the same cells (Online Supplementary Figure S2).
Prognostic significance of mutations
The median OS of the entire cohort was 34.4 months [(95% confidence interval (CI): 16.9 to 51.9 months]. Univariate analysis revealed that patients with SF3B1 mutations had a better OS [not reached (NR) versus 24.2 months, P<0.003] (Figure 3A) and progression-free survival (PFS) (NR versus 40.3, P<0.02) than patients with wild-type SF3B1 (Online Supplementary Figure S3A), while none of the other splicing factor gene mutations had an impact on either outcome measure. The median OS of patients with any splicing factor mutation was significantly better than those with a wild-type spliceosome (NR versus 24.2 months, P<0.03) (Figure 3B), but no difference in PFS was seen between the groups (Online Supplementary Figure S3B).
In a univariate model, there was no significant difference in either OS or PFS in patients with other individual mutations compared to patients with wild-type genes, except for TP53 and NRAS (Online Supplementary Figure S4A-D). Among patients with epigenetic modifier mutations (n=80), a proportion also had coexisting splicing factor mutations (n= 36) and 44 patients had epigenetic modifier mutations alone. A trend towards a better survival was seen in the group of patients with epigenetic modifier mutations with splicing gene mutations compared with the rest (P<0.06), although the mutations of genes involved in cell signaling/transcription regulation and TP53 mutations were evenly distributed in both groups (Online Supplementary Figure S5A, B).

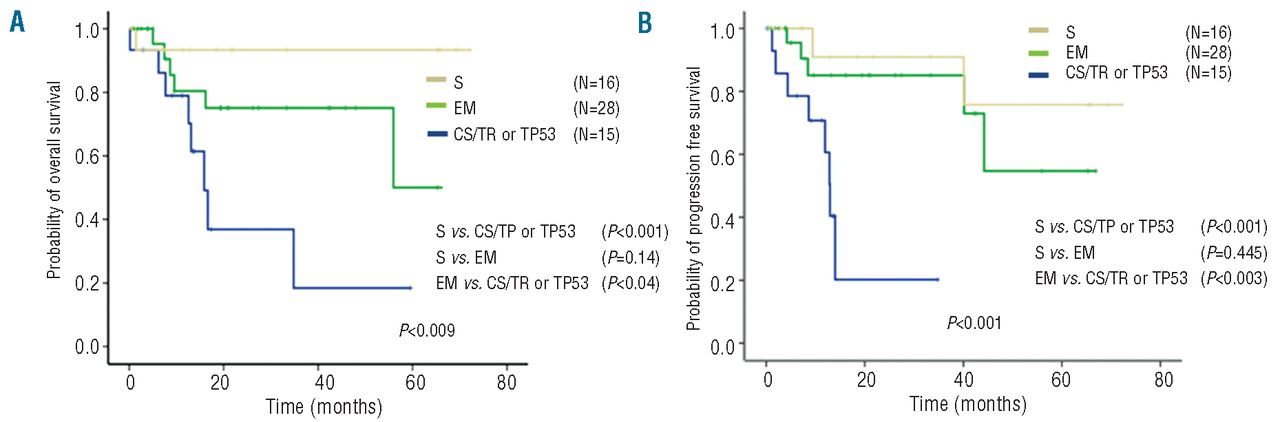

Interestingly, patients harboring both mutations of splicing factor and of genes involved in cell signaling/transcription regulation or TP53 (n=15) had an extremely poor OS (15.8 months versus NR, P<0.009) and PFS (12.5 months versus NR, P<0.001) when compared to patients with spliceosome mutations without mutations of genes involved in cell signaling/transcription regulation (n=44), (Figure 4A and 4B) although this group had only three patients with a TP53 mutation.
Multivariable analysis using variables: age at sampling, WHO category, bone marrow blast count, IPSS cytogenetic group, transfusion dependency status, and SF3B1, NRAS, TP53 mutations, revealed that NRAS mutations did not affect either OS or PFS. SF3B1 and TP53 mutations had varying impacts on OS with hazard ratios (HR) of 0.2 (P<0.03, 95% CI, 0.1–0.8) and 2.1 (P<0.04, 95% CI, 1.1–4.4), respectively. None of the analyzed genotypes, including SF3B1 and TP53, affected PFS in the multivariable model (Online Supplementary Table S8).
In our study, 76% of MDS patients had mutations of the genes screened in this study, with nearly 50% of patients having more than one mutation. Splicing factor genes, SF3B1, SRSF2, U2AF1 and ZRSR2 were mutated in 38% of patients. Although collectively these mutations were found in a wide spectrum of MDS subtypes, some were strongly associated with specific disease features. For example, SF3B1 mutations were strongly correlated with high levels of ringed sideroblasts and were, therefore, found in 80% of RARS/RCMD-RS cases, as reported in other studies.7 Conversely, SRSF2 and U2AF1 mutations were often seen in advanced forms of MDS such as RAEB and CMML respectively, which fitted well with a higher number of coexistent mutations in genes involved in cell signaling/transcription regulation (e.g. NRAS, FLT3 and RUNX1) with known oncogenic functions.
Occurrence of SF3B1 mutations has been linked to significantly better OS and in some instances longer, leukemia-free and event-free survival in RARS.7 Similarly, we show a beneficial, independent prognostic impact for SF3B1 mutations on outcome, especially OS. In accordance with this observation is an absence of coexistent TP53 aberrations, which is a strong predicator of poor OS according to data presented both here and elsewhere.28 Furthermore, data from a cohort of 317 MDS patients indicated no influence of SF3B1 mutations on OS or time to leukemic progression.18 In addition to this, previous studies have also linked mutations of U2AF113,15 and SRSF213 with an increased risk of progression to AML and/or shorter OS. However, a study by Thol et al. demonstrated that only SRSF2 mutations were associated with shorter OS as well as time to AML progression, whereas mutations in U2AF1 were not.10 We could only demonstrate a correlation of SRSF2 mutations with progression to AML, but no impact on OS. U2AF1 mutations similarly did not have any impact on the outcome in our study. Although NRAS and TP53 mutations had an impact on outcome, this remained statistically significant in a multivariate model only for TP53.
Within the spliceosome mutant group, SF3B1 seemed to be the strongest driver of a beneficial effect and the only spliceosome factor independently associated with better OS and PFS. Such a model possibly suggests that splicing factor mutations are early disease events and define a ‘founder’ disease clone that subsequently develops additional, increasingly deleterious mutations during the natural course of the disease, clonal evolution and disease progression. Furthermore, as particular splicing factor mutations differ in their patterns of association with other mutations, this suggests a hierarchy of tolerated mutational load and limitation to particular paths of disease evolution. For example, a dearth of co-existent TP53 mutations throughout spliceosome mutant cases and mutual exclusivity of TP53 mutations with SF3B1 and SRSF2 mutants at the time of diagnosis and disease transformation further supports a restrictive pattern of genetic insults. Furthermore, a restrictive pattern of additional coexisting mutations previously linked with disease transformation, such as FLT3 and RUNX1, are seen alongside SF3B1 mutations, although this might be expected in low-risk diseases such as RARS/RCMD-RS, which make up the majority of cases with SF3B1 mutants. However, it is important to note that SF3B1 mutant cases which gained such oncogenic mutations during transformation maintained a constant SF3B1 mutant allele burden, indicating evolution within the same disease clone population.
Interestingly, SRSF2 mutants, which are present in cases of both low- and high-risk disease, similarly did not coexist with TP53 mutations here, but rather FLT3, NRAS or RUNX1 mutant oncogenes, as was the case for transformed SF3B1 mutants. Conversely, U2AF1 mutations were found to coexist with TP53 mutations here, although the U2AF1 mutation burden was significantly lower than that of TP53 in 2/3 of these cases, where TP53 mutation burden was high and consistent with loss of heterozygosity on chromosome 17p confirmed by metaphase cytogenetics in one of these cases. Furthermore, FLT3 and NRAS mutations were independently more likely to occur with SRSF2 mutations, accentuating the rate of leukemic transformation in these patients, but were less likely to occur with SF3B1 mutant cases. The questions therefore remain: are such mutual exclusivities driven at a molecular level and due to a lethal combination of genetic lesions and do mutations in different spliceosome components carry different weights in terms of biological importance and different thresholds of additional insults that a particular mutant clone can endure?
Significantly, mutations of epigenetic modifiers also seemed to fall in with particular splicing factor mutations. For example, ASXL1 mutations were less likely to coexist with SF3B1 mutations than with SRSF2 and U2AF1 mutations, while DNMT3A mutations were not found with SRSF2 but coexisted with SF3B1 mutants (4/24). Again this highlights the importance of genetic background and how particular mutation combinations may attain an acceptable biochemical equilibrium and stable disease. It is of particular interest that only single epigenetic modifier mutations seemed to occur together with SF3B1 and SRSF2 mutations, which would fit the theory that such mutations represent early events in disease when numerous clonal genetic lesions or separate disease clones have not yet evolved. This is again highlighted in the case of TET2 mutations, considered as early disease events that do not add prognostic value in MDS21, but which were more likely to be found in MDS cases with a mutant spliceosome, especially SRSF2 mutations, in our cohort of patients.
Mutation analyses performed on serial samples in patients who were initially diagnosed with RARS and subsequently transformed to AML, also provided us with clear evidence that SF3B1 mutations are an early ancestral event. In these cases, the SF3B1 mutant clone survives various treatments during the course of the disease, acquiring additional oncogenic mutations such as FLT3 and/or RUNX1, enabling the disease to evolve. Supporting this theory, MDS patients with splicing factor mutants in isolation have a better OS generally, which seemingly worsens as additional mutant genes are added to the genetic makeup. Hence, the contribution of SF3B1 mutations to disease transformation or progression into AML may be limited, but the mutations may instead provide a favorable environment or sufficient pressure for other more destabilizing mutations to occur.
We initially performed whole-exome sequencing on CD34 cells as such progenitors are likely to form the reservoir of myeloid mutations, as has been previously reported.21,33 The fact that SF3B1 mutations are present in CD34 and in differentiated CD235CD71 cells, but not in T or B cells in MDS, further reinforces the importance of these mutations and relate to a clonal advantage through the course of myeloid disease, particularly in RARS.
Functional characterization of spliceosome mutations and their contribution to myelodysplasia is still unclear.7 However, a recent study by Visconte et al. indicated the role of SF3B1 aberrations in the formation of ring sideroblasts in MDS.34 Furthermore, a majority of splicing factor mutations are heterozygous and often clustered in particular protein functional domains, indicating an altered gain-of-function and underlining biological significance. In in-vitro knockdown experiments of spliceosome components, SF3B1 and U2AF1 have been linked to aberrant cell cycle characteristics, cell cycle arrest and increased apoptosis, where aberrant splicing of cell-cycle genes has been noted.8,35 Furthermore, a study by Yoshida et al. showed that overexpression of mutant U2AF1 gene in mice leads to reduced reconstitution capacity of hematopoietic stem cells.8 However, heterozygous knockout of SF3B1 in mice elsewhere was not linked to altered splicing activity itself but rather altered interactions with polycomb proteins leading to deregulation of gene expression.36 This finding adds further weight to the fundamental role that aberrations of the splicing machinery and epigenetic modifiers play in MDS. It is noteworthy that functional studies to date have not as yet arrived at a consensus in identifying definitive functional pathways affected by splicing factor mutations, even in RARS in which SF3B1 mutations dominate. This again implies interplay of several factors driving the MDS clone, where spliceosome mutations are perhaps fuelling subtle biochemical changes which can be built upon in the course of disease evolution.
It is now becoming clear that splicing regulation and global genomic epigenetic marks are intricately linked, where epigenetic ‘annotation’ of intron/exon boundaries influences the rate of transcription or recruitment of splicing effector proteins to particular histone modifications.37–40 It therefore seems likely that as our knowledge grows of how the splicing machinery and cellular epigenetic modifiers communicate in the control of gene expression patterns, we shall move towards a fuller understanding of the functional consequences of their dysregulation in leukemia.
We would like to acknowledge the Leukemia Lymphoma Research Fund (UK) for supporting SAM and King’s College London for funding the King’s College Hemato-Oncology Tissue Bank. We would like to acknowledge Nigel B. Westwood and Rajani Chelliah for assisting with sample processing, tissue separation and clinical data.
- ↵* SAM and AES contributed equally to this manuscript.
- The online version of this article has a Supplementary Appendix
- Authorship and Disclosures Information on authorship, contributions, and financial & other disclosures was provided by the authors and is available with the online version of this article at www.haematologica.org.
- Received August 3, 2012.
- Accepted January 2, 2013.
- Mufti GJ, Bennett JM, Goasguen J, Bain BJ, Baumann I, Brunning R. Diagnosis and classification of myelodysplastic syndrome: International Working Group on Morphology of myelodysplastic syndrome (IWGM-MDS) consensus proposals for the definition and enumeration of myeloblasts and ring sideroblasts. Haematologica. 2008; 93(11):1712-7. PubMedhttps://doi.org/10.3324/haematol.13405Google Scholar
- Tefferi A, Vardiman JW. Myelodysplastic syndromes. N Engl J Med. 2009; 361(19):1872-85. PubMedhttps://doi.org/10.1056/NEJMra0902908Google Scholar
- Corey SJ, Minden MD, Barber DL, Kantarjian H, Wang JC, Schimmer AD. Myelodysplastic syndromes: the complexity of stem-cell diseases. Nat Rev Cancer. 2007; 7(2):118-29. PubMedhttps://doi.org/10.1038/nrc2047Google Scholar
- Pozdnyakova O, Miron PM, Tang G, Walter O, Raza A, Woda B, Wang SA. Cytogenetic abnormalities in a series of 1,029 patients with primary myelodysplastic syndromes: a report from the US with a focus on some undefined single chromosomal abnormalities. Cancer. 2008; 113(12):3331-40. PubMedGoogle Scholar
- Heinrichs S, Kulkarni RV, Bueso-Ramos CE, Levine RL, Loh ML, Li C. Accurate detection of uniparental disomy and microdeletions by SNP array analysis in myelodysplastic syndromes with normal cytogenetics. Leukemia. 2009; 23(9):1605-13. PubMedhttps://doi.org/10.1038/leu.2009.82Google Scholar
- Mohamedali A, Gäken J, Twine NA, Ingram W, Westwood N, Lea NC. Prevalence and prognostic significance of allelic imbalance by single-nucleotide polymorphism analysis in low-risk myelodysplastic syndromes. Blood. 2007; 110(9):3365-73. PubMedhttps://doi.org/10.1182/blood-2007-03-079673Google Scholar
- Papaemmanuil E, Cazzola M, Boultwood J, Malcovati L, Vyas P, Bowen D. Somatic SF3B1 mutation in myelodysplasia with ring sideroblasts. N Engl J Med. 2011; 365(15):1384-95. PubMedhttps://doi.org/10.1056/NEJMoa1103283Google Scholar
- Yoshida K, Sanada M, Shiraishi Y, Nowak D, Nagata Y, Yamamoto R. Frequent pathway mutations of splicing machinery in myelodysplasia. Nature. 2011; 478(7367):64-9. PubMedhttps://doi.org/10.1038/nature10496Google Scholar
- Malcovati L, Papaemmanuil E, Bowen DT, Boultwood J, Della Porta MG, Pascutto C. Clinical significance of SF3B1 mutations in myelodysplastic syndromes and myelodysplastic/myeloproliferative neoplasms. Blood. 2011; 118(24):6239-46. PubMedhttps://doi.org/10.1182/blood-2011-09-377275Google Scholar
- Thol F, Kade S, Schlarmann C, Löffeld P, Morgan M, Krauter J. Frequency and prognostic impact of mutations in SRSF2, U2AF1, and ZRSR2 in patients with myelodysplastic syndromes. Blood. 2012; 119(15):3578-84. PubMedhttps://doi.org/10.1182/blood-2011-12-399337Google Scholar
- Patnaik MM, Lasho TL, Hodnefield JM, Knudson RA, Ketterling RP, Garcia-Manero G. SF3B1 mutations are prevalent in myelodysplastic syndromes with ring sideroblasts but do not hold independent prognostic value. Blood. 2012; 119(2):569-72. PubMedhttps://doi.org/10.1182/blood-2011-09-377994Google Scholar
- Visconte V, Makishima H, Jankowska A, Szpurka H, Traina F, Jerez A. SF3B1, a splicing factor is frequently mutated in refractory anemia with ring sideroblasts. Leukemia. 2012; 26(3):542-5. PubMedhttps://doi.org/10.1038/leu.2011.232Google Scholar
- Makishima H, Visconte V, Sakaguchi H, Jankowska AM, Abu Kar S, Jerez A. Mutations in the spliceosome machinery, a novel and ubiquitous pathway in leukemogenesis. Blood. 2012; 119(14):3203-10. PubMedhttps://doi.org/10.1182/blood-2011-12-399774Google Scholar
- Damm F, Kosmider O, Gelsi-Boyer V, Renneville A, Carbuccia N, Hidalgo-Curtis C. Mutations affecting mRNA splicing define distinct clinical phenotypes and correlate with patient outcome in myelodysplastic syndromes. Blood. 2012; 119(14):3211-8. PubMedhttps://doi.org/10.1182/blood-2011-12-400994Google Scholar
- Graubert TA, Shen D, Ding L, Okeyo-Owuor T, Lunn CL, Shao J, Krysiak K. Recurrent mutations in the U2AF1 splicing factor in myelodysplastic syndromes. Nat Genet. 2012; 44(1):53-7. PubMedhttps://doi.org/10.1038/ng.1031Google Scholar
- Kar SA, Jankowska A, Makishima H, Visconte V, Jerez A, Sugimoto Y. Spliceosomal gene mutations are frequent events in the diverse mutational spectrum of chronic myelomonocytic leukemia but largely absent in juvenile myelomonocytic leukemia. Haematologica. 2013; 98(1):107-13. PubMedhttps://doi.org/10.3324/haematol.2012.064048Google Scholar
- Wu SJ, Kuo YY, Hou HA, Li LY, Tseng MH, Huang CF. The clinical implication of SRSF2 mutation in patients with myelodysplastic syndrome and its stability during disease evolution. Blood. 2012; 120(15):3106-11. PubMedhttps://doi.org/10.1182/blood-2012-02-412296Google Scholar
- Damm F, Thol F, Kosmider O, Kade S, Löffeld P, Dreyfus F. SF3B1 mutations in myelodysplastic syndromes: clinical associations and prognostic implications. Leukemia. 2011; 26(5):1137-40. PubMedGoogle Scholar
- Greco M, Capello D, Bruscaggin A, Spina V, Rasi S, Monti S. Analysis of SF3B1 mutations in monoclonal B-cell lymphocytosis. Hematol Oncol. 2013; 31(1):54-5. PubMedhttps://doi.org/10.1002/hon.2013Google Scholar
- Wang L, Lawrence MS, Wan Y, Stojanov P, Sougnez C, Stevenson K. SF3B1 and other novel cancer genes in chronic lymphocytic leukemia. N Engl J Med. 2011; 365(26):2497-506. PubMedhttps://doi.org/10.1056/NEJMoa1109016Google Scholar
- Smith AE, Mohamedali AM, Kulasekararaj A, Lim Z, Gäken J, Lea NC. Next-generation sequencing of the TET2 gene in 355 MDS and CMML patients reveals low-abundance mutant clones with early origins, but indicates no definite prognostic value. Blood. 2010; 116(19):3923-32. PubMedhttps://doi.org/10.1182/blood-2010-03-274704Google Scholar
- Walter MJ, Ding L, Shen D, Shao J, Grillot M, McLellan M. Recurrent DNMT3A mutations in patients with myelodysplastic syndromes. Leukemia. 2011; 25(7):1153-8. PubMedhttps://doi.org/10.1038/leu.2011.44Google Scholar
- Kosmider O, Gelsi-Boyer V, Slama L, Dreyfus F, Beyne-Rauzy O, Quesnel B. Mutations of IDH1 and IDH2 genes in early and accelerated phases of myelodysplastic syndromes and MDS/myeloproliferative neoplasms. Leukemia. 2010; 24(5):1094-6. PubMedhttps://doi.org/10.1038/leu.2010.52Google Scholar
- Boultwood J, Perry J, Pellagatti A, Fernandez-Mercado M, Fernandez-Santamaria C, Calasanz MJ. Frequent mutation of the polycomb-associated gene ASXL1 in the myelodysplastic syndromes and in acute myeloid leukemia. Leukemia. 2010; 24(5):1062-5. PubMedhttps://doi.org/10.1038/leu.2010.20Google Scholar
- Nikoloski G, Langemeijer SM, Kuiper RP, Knops R, Massop M, Tönnissen ER. Somatic mutations of the histone methyl-transferase gene EZH2 in myelodysplastic syndromes. Nat Genet. 2010; 42(8):665-7. PubMedhttps://doi.org/10.1038/ng.620Google Scholar
- Jädersten M, Saft L, Smith A, Kulasekararaj A, Pomplun S, Göhring G. TP53 mutations in low-risk myelodysplastic syndromes with del(5q) predict disease progression. J Clin Oncol. 2011; 29(15):1971-9. PubMedhttps://doi.org/10.1200/JCO.2010.31.8576Google Scholar
- Shih LY, Huang CF, Wang PN, Wu JH, Lin TL, Dunn P, Kuo MC. Acquisition of FLT3 or N-ras mutations is frequently associated with progression of myelodysplastic syndrome to acute myeloid leukemia. Leukemia. 2004; 18(3):466-75. PubMedhttps://doi.org/10.1038/sj.leu.2403274Google Scholar
- Bejar R, Levine R, Ebert BL. Unraveling the molecular pathophysiology of myelodysplastic syndromes. J Clin Oncol. 2011; 29(5):504-15. PubMedhttps://doi.org/10.1200/JCO.2010.31.1175Google Scholar
- Bains A, Luthra R, Medeiros LJ, Zuo Z. FLT3 and NPM1 mutations in myelodysplastic syndromes: Frequency and potential value for predicting progression to acute myeloid leukemia. Am J Clin Pathol. 2011; 135(1):62-9. PubMedhttps://doi.org/10.1309/AJCPEI9XU8PYBCIOGoogle Scholar
- Georgiou G, Karali V, Zouvelou C, Kyriakou E, Dimou M, Chrisochoou S. Serial determination of FLT3 mutations in myelodysplastic syndrome patients at diagnosis, follow up or acute myeloid leukaemia transformation: incidence and their prognostic significance. Br J Haematol. 2006; 134(3):302-6. PubMedGoogle Scholar
- Thol F, Winschel C, Lüdeking A, Yun H, Friesen I, Damm F. Rare occurrence of DNMT3A mutations in myelodysplastic syndromes. Haematologica. 2011; 96(12):1870-3. PubMedhttps://doi.org/10.3324/haematol.2011.045559Google Scholar
- Kambach C, Walke S, Nagai K. Structure and assembly of the spliceosomal small nuclear ribonucleoprotein particles. Curr Opin Struct Biol. 1999; 9(2):222-30. PubMedhttps://doi.org/10.1016/S0959-440X(99)80032-3Google Scholar
- Anand S, Stedham F, Beer P, Gudgin E, Ortmann CA, Bench A. Effects of the JAK2 mutation on the hematopoietic stem and progenitor compartment in human myeloproliferative neoplasms. Blood. 2011; 118(1):177-81. PubMedhttps://doi.org/10.1182/blood-2010-12-327593Google Scholar
- Visconte V, Rogers HJ, Singh J, Barnard J, Bupathi M, Traina F. SF3B1 haploinsufficiency leads to formation of ring sideroblasts in myelodysplastic syndromes. Blood. 2012; 120(16):3173-86. PubMedhttps://doi.org/10.1182/blood-2012-05-430876Google Scholar
- Kaida D, Motoyoshi H, Tashiro E, Nojima T, Hagiwara M, Ishigami K. Spliceostatin A targets SF3b and inhibits both splicing and nuclear retention of pre-mRNA. Nat Chem Biol. 2007; 3(9):576-83. PubMedhttps://doi.org/10.1038/nchembio.2007.18Google Scholar
- Isono K, Mizutani-Koseki Y, Komori T, Schmidt-Zachmann MS, Koseki H. Mammalian polycomb-mediated repression of Hox genes requires the essential spliceosomal protein Sf3b1. Genes Dev. 2005; 19(5):536-41. PubMedhttps://doi.org/10.1101/gad.1284605Google Scholar
- Luco RF, Allo M, Schor IE, Kornblihtt AR, Misteli T. Epigenetics in alternative pre-mRNA splicing. Cell. 2011; 144(1):16-26. PubMedhttps://doi.org/10.1016/j.cell.2010.11.056Google Scholar
- Luco RF, Pan Q, Tominaga K, Blencowe BJ, Pereira-Smith OM, Misteli T. Regulation of alternative splicing by histone modifications. Science. 2010; 327(5968):996-1000. PubMedhttps://doi.org/10.1126/science.1184208Google Scholar
- Andersson R, Enroth S, Rada-Iglesias A, Wadelius C, Komorowski J. Nucleosomes are well positioned in exons and carry characteristic histone modifications. Genome Res. 2009; 19(10):1732-41. PubMedhttps://doi.org/10.1101/gr.092353.109Google Scholar
- Khan DH, Jahan S, Davie JR. Pre-mRNA splicing: role of epigenetics and implications in disease. Adv Biol Regul. 2012;1-12. Google Scholar
